- 157 -

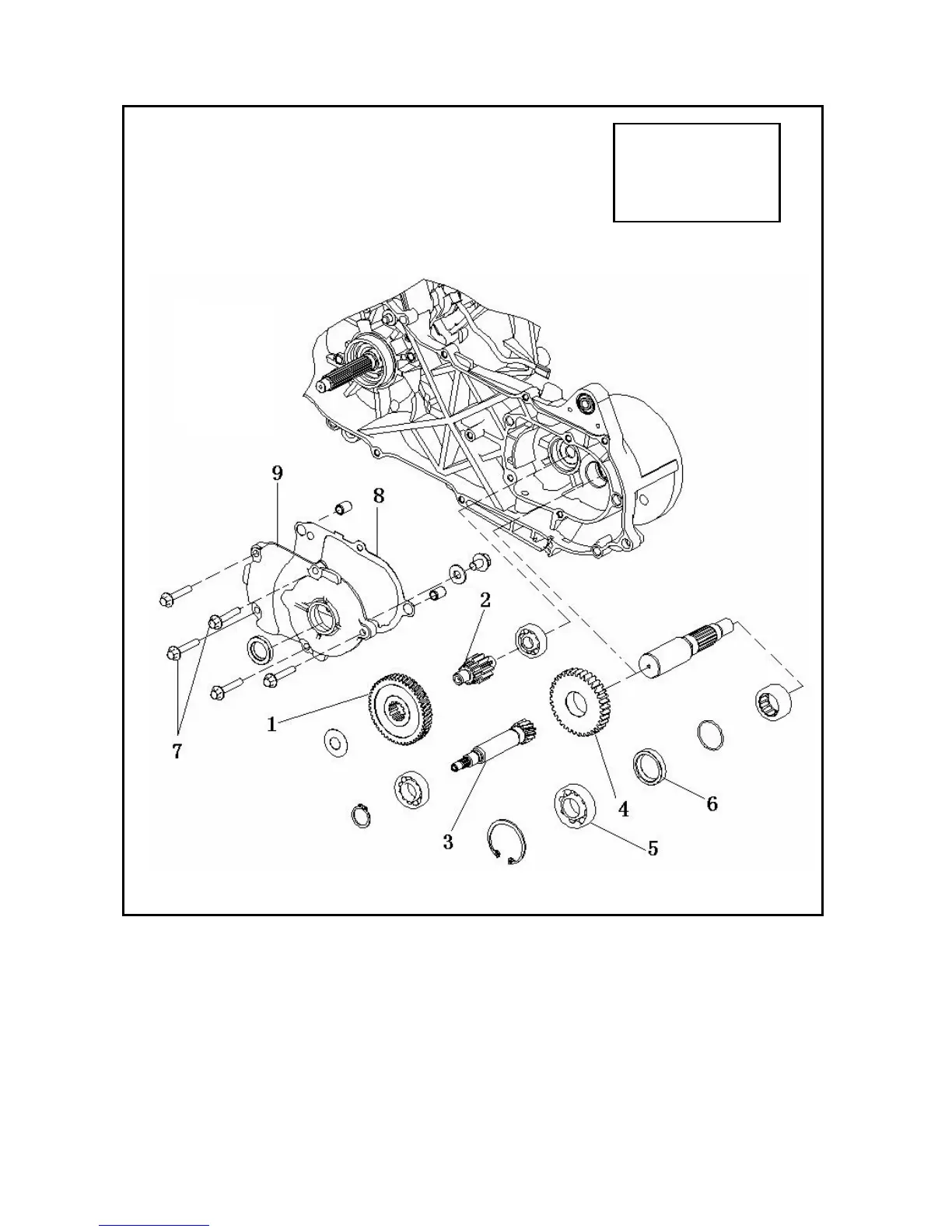

1 middle gear 2 middle shaft 3 main shaft of clutch 4 output shaft gear 5 bearing 6 oil seal 7 bolt
8 gasket 9 gear room cover
Function: transfer torsion
and decide final output
torsion and rev.
