Loose motor suspension bolt

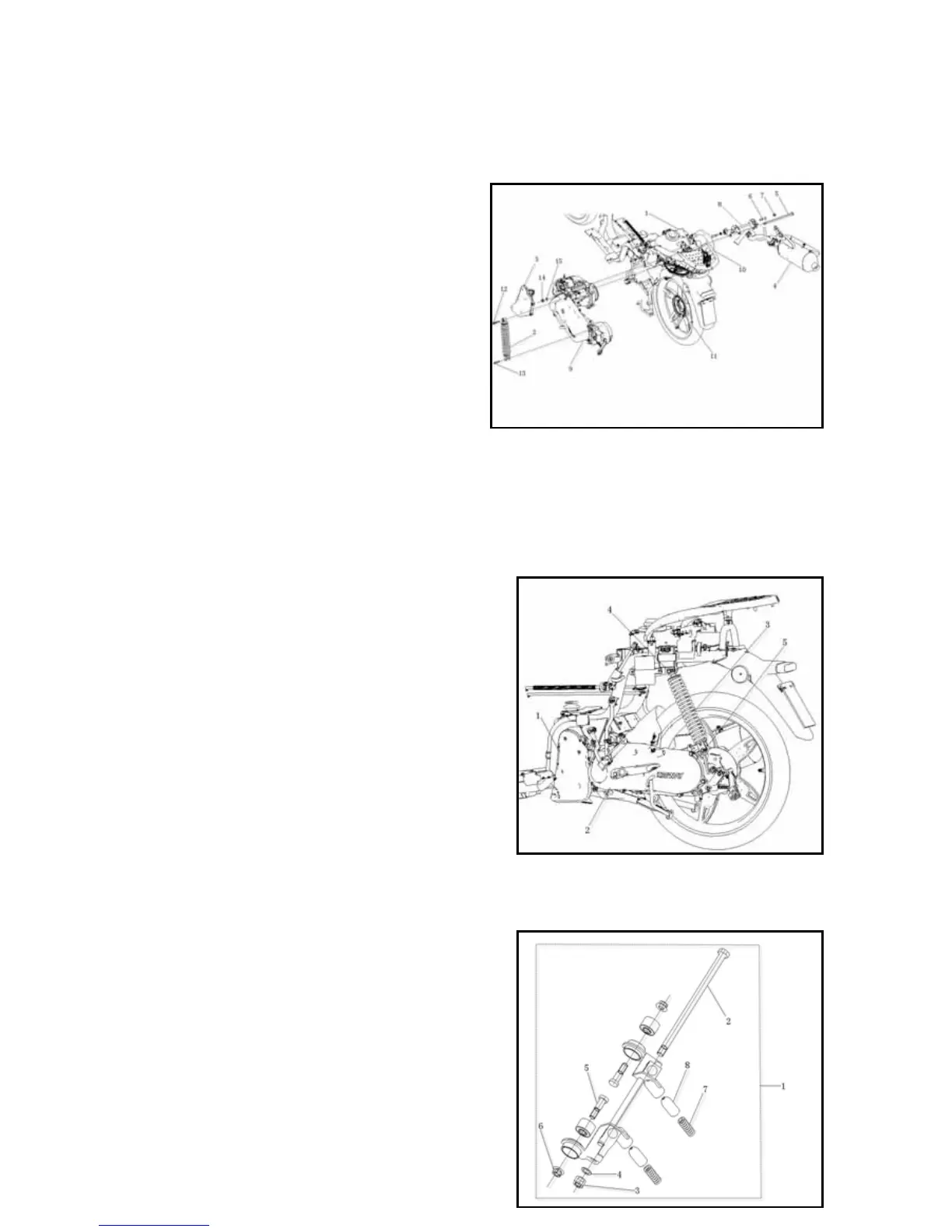

10.3 Removal of motor
10.3.1 Removal
Remove bolt and left crankcase ventilated tube.
Removal procedures:
-remove frame cover.
-remove gas filter.
-remove primary cable of ignition coil.
-remove starter motor cable.
-remove fuel tube and vacuum tube.
-remove starter valve 2P connector.
-remove magnetogenerator/ pulser 3P connector.
Remove bolt and underground cable of motorcycle.
Remove rear shock absorber standing bolt (upper).
Remove nut and gasket of motor kinetic force hanger
support.
Remove bolt of motor kinetic force hanger support.
Remove motor from the frame.
10.3.2 Motor suspension standing clamp
10.3.2.1 Removal
Remove spark plug cap.
Remove fuel tube and vacuum tube from carburetor.
Remove motor suspension bolt/nut and motor assembly.
Remove bolt and ignition coil.
Remove bolt, fuel tube and vacuum tube.
10.3.2.2 Inspection
Check whether shock absorber of motor kinetic force hanger
support is abraded or damaged.
Check whether rubber ring of shock absorber is abraded or
damaged.
