Carburetor

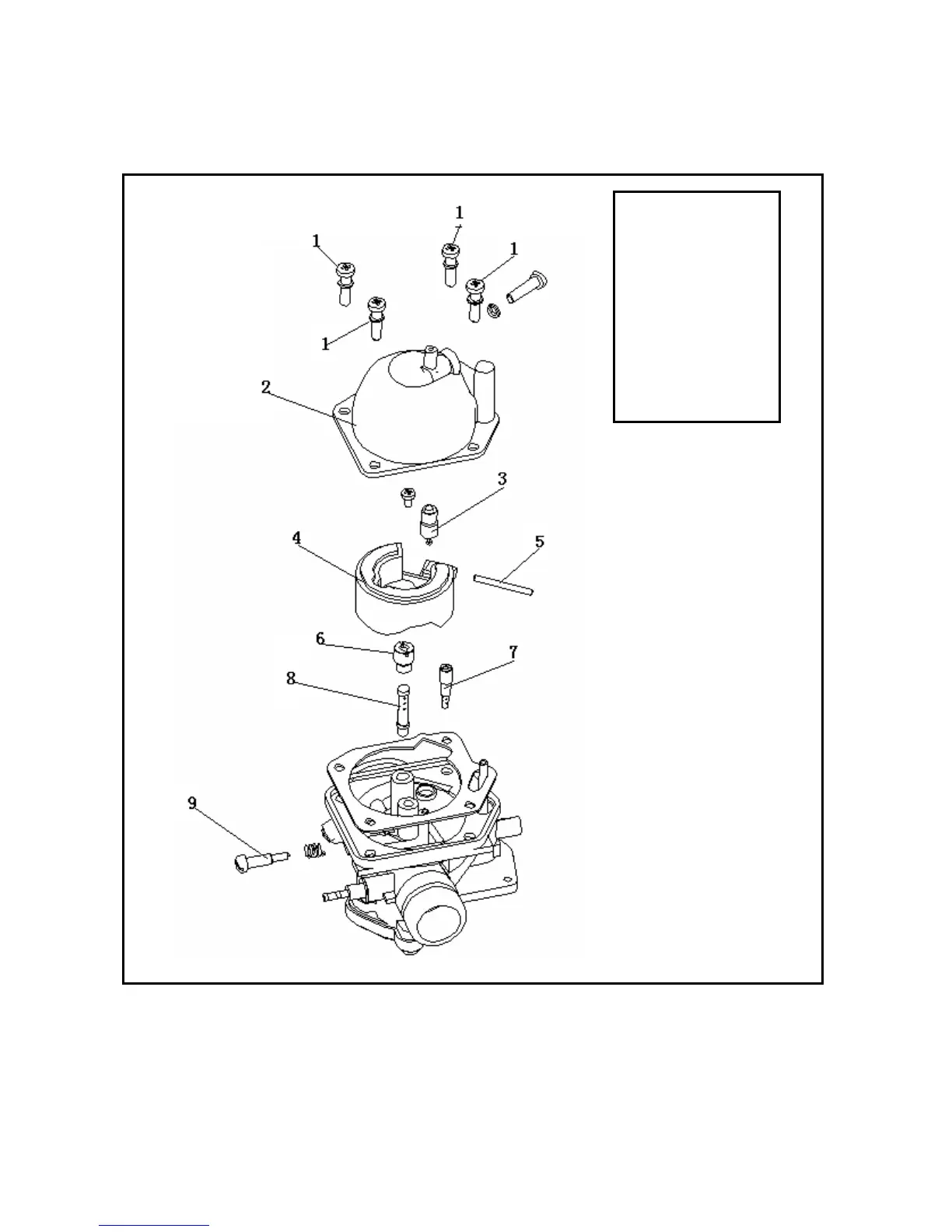

1 screw 2 float room 3 needle valve part 4 float part 5 float pin 6 main metering hole 7
idle spray nozzle 8 main bubble tube
9 idle adjusting screw
Attention：gasoline is very
dangerous, fireworks is
strictly prohibited in
workplace.
After disassembling of
the carburetor, block the
intake manifold with cloth
in case of the entering of
foreign material.
