- 63 -

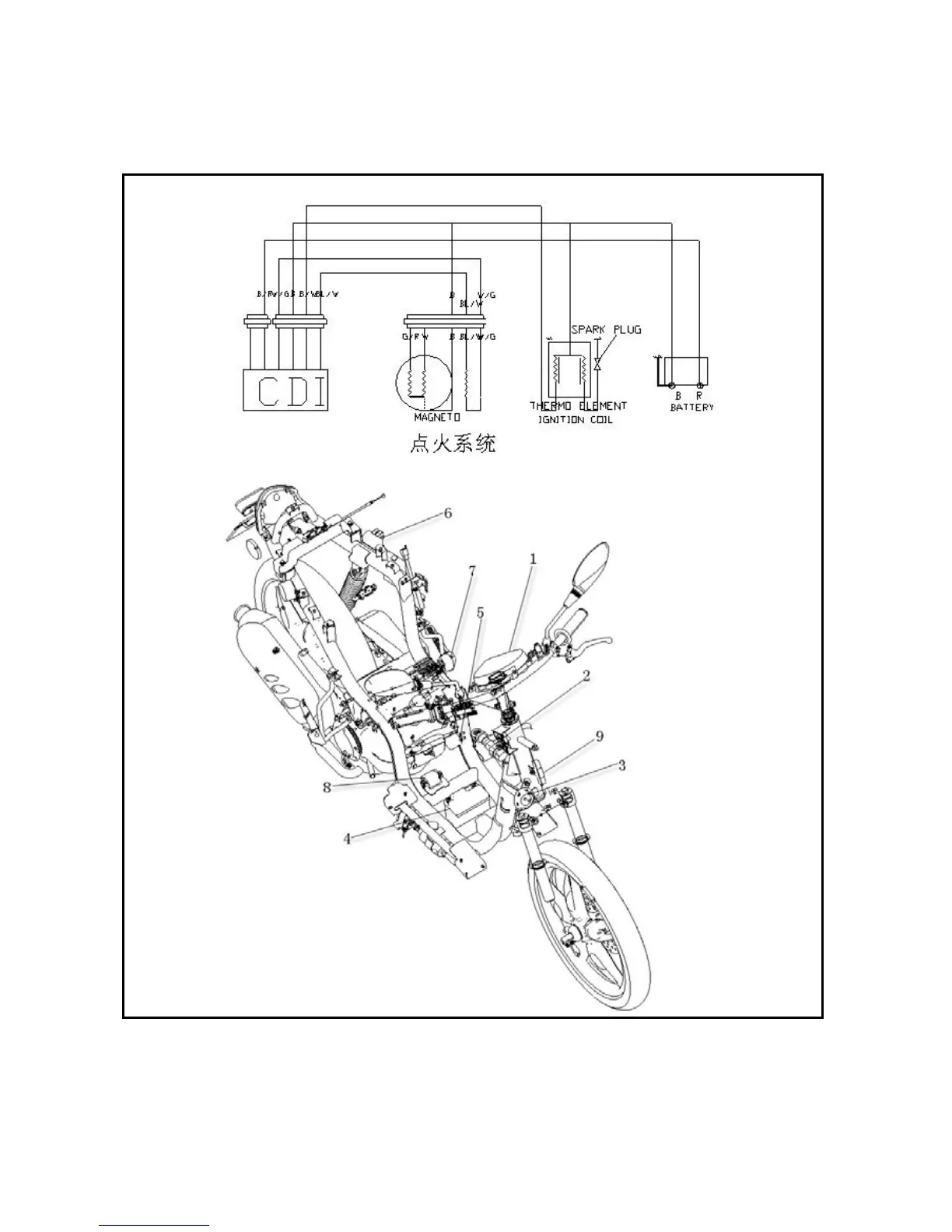

Ignition system
1 Meters assembly 2 Power locking components 3 Horn 4 Battery 5 Starting relay
6 CID DC igniter 7 Frequency conversion flash apparatus 8 Ignition coil
9 Release resistances
