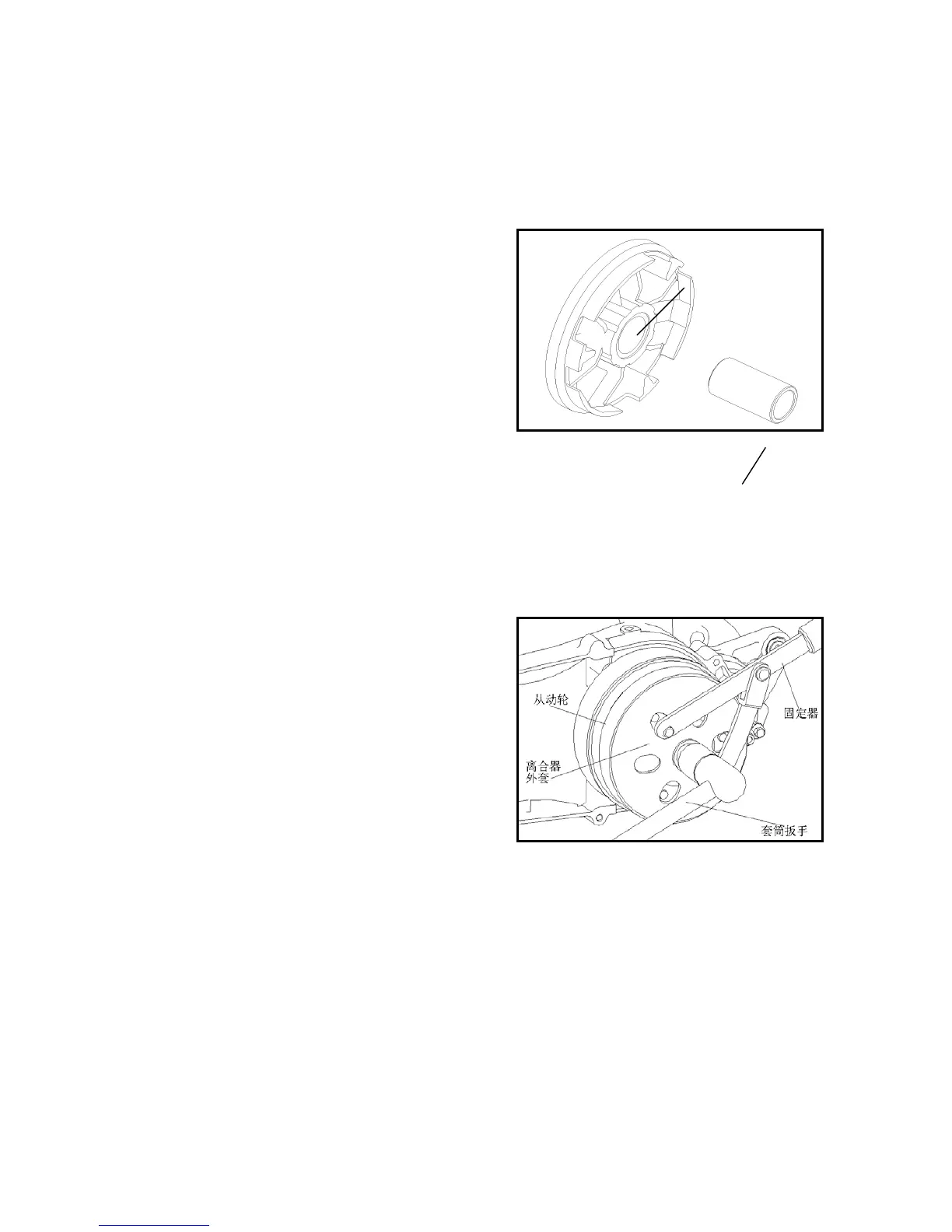

Measure right semi ID of driving wheel.
Usage limit: 26.06mm。
Measure OD of slide bushing.
Usage limit: 25.94mm。
从动轮 driven wheel
固定器 retainer
离合器外套 clutch bushing
套筒扳手 sleeve spanner
15.5 Clutch/driven wheel
15.5.1 Removal
Use retainer to fix clutch bushing and remove standing nut.
Remove clutch bushing and clutch/driven wheel.
15.5.2 Disassemble clutch
Remove retaining ring and disassemble clutch.
Note:
In disassembly, not oil shall stick to clutch abrasion piece.
R
ight semi
part of
driving wheel
S
lide bushing
