- 75 -
• Damage is not allowed in the interface
between the electric brush and the
armature, pay attention please.
The labial part of the oil seal should not
be damaged by the installation shaft, pay
attention please.
Install new O-shape rings on the front cover.
Pair the screw of the motor shell with the
one of the front cover during installation.
Screw up the screw in the outer shell.
*Note
In the assembling of the outer shell and
the front cover, use the magnet to draw
the front cover to make it easy to pull out
the armature, and then press it down
softly.
3.3.5 Installation
Install wires of the starting motor; make sure the soldering cup is properly installed.
Check whether the O-shape ring is damage, and replaced it with a new one when necessary.
Cover the O-shape ring with engine oil, and install it onto the starting motor.
Install the wire clip of the rear brake.

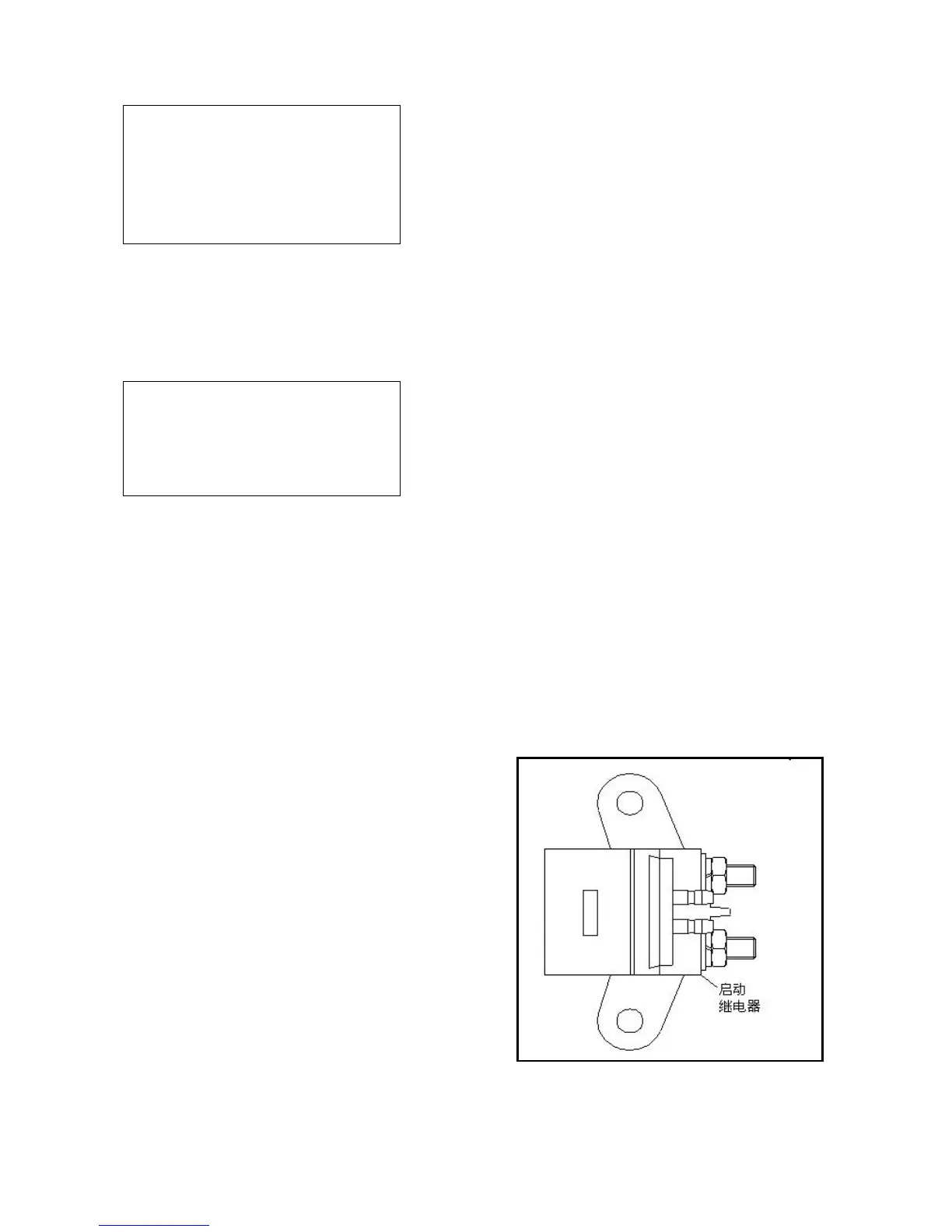

3.4 Starting relay
3.4.1 Actuation examination
Remove the fender of the body.
Ensure there is a “click” when turning on the starting motor
with the main switch remaining “on”.
If there is sound, it is ok.
If no sound appears: ·check the voltage of the starting relay.
·Check the ground loop of the starting relay.
·Actuation examination of the starting relay.
启动继电器：start the relay
