Generic Onyx 50 User Manual

- 151 -

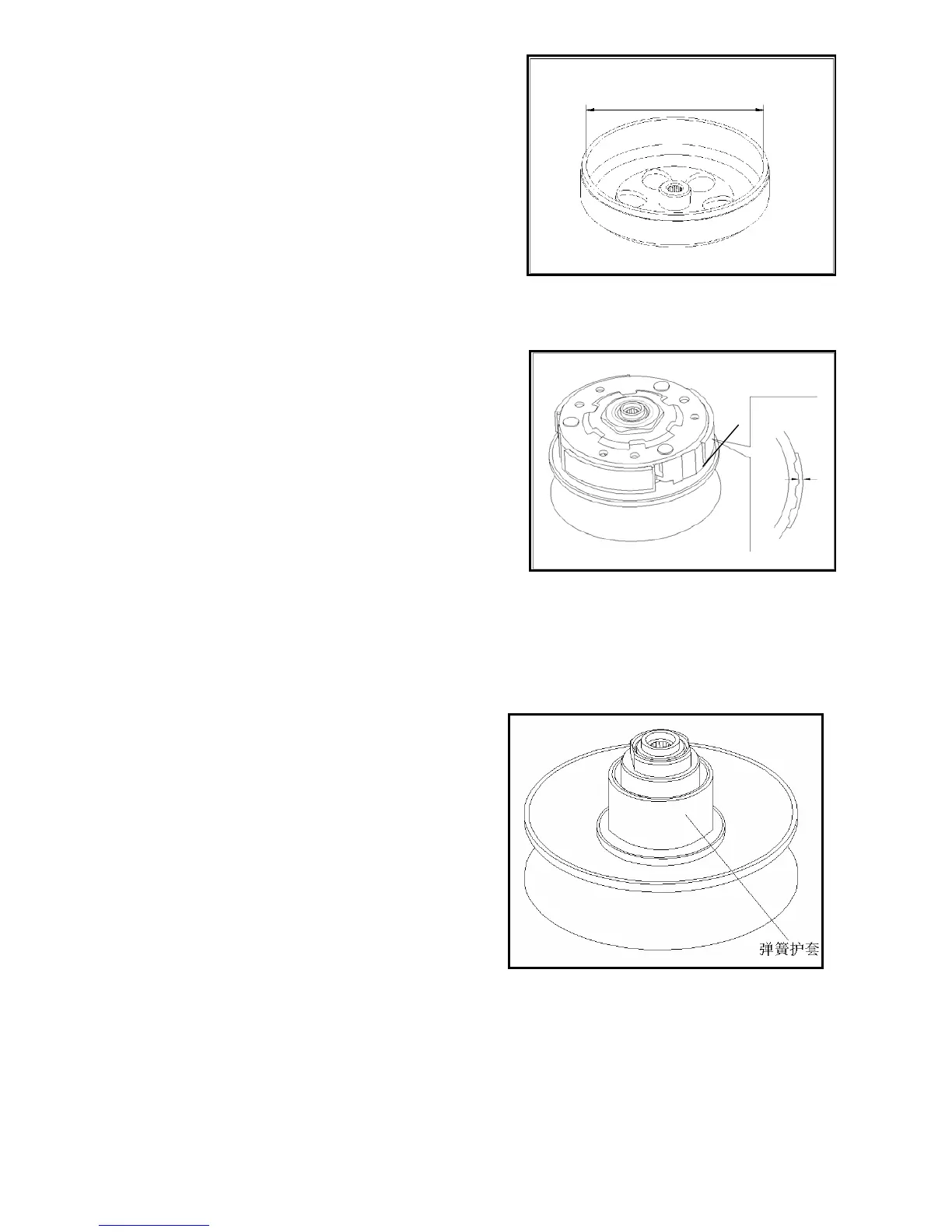

Check abrasion of clutch bushing.
Measure ID of clutch bushing.
Usage limit:118.5mm。
Check abrasion of clutch abrasion piece.
Measure thickness of abrasion piece.
Usage limit: 1.5mm。
15.6 Detach clutch and driven wheel
Use clutch spring compressor in disassembling
clutch.
Note:
Use spring compressor in removal in case spring is damaged.
Fix spring compressor, and remove clutch standing nut.
Loose compressor, and detach clutch and driven wheel.
扳手 spanner
A
brasion piece
