Generic Onyx 50 User Manual

- 152 -
离合器弹簧压缩器 clutch spring compressor
弹簧护套 spring sleeve
Remove spring bushing.
Remove directing pin.
Remove left
Remove oil s

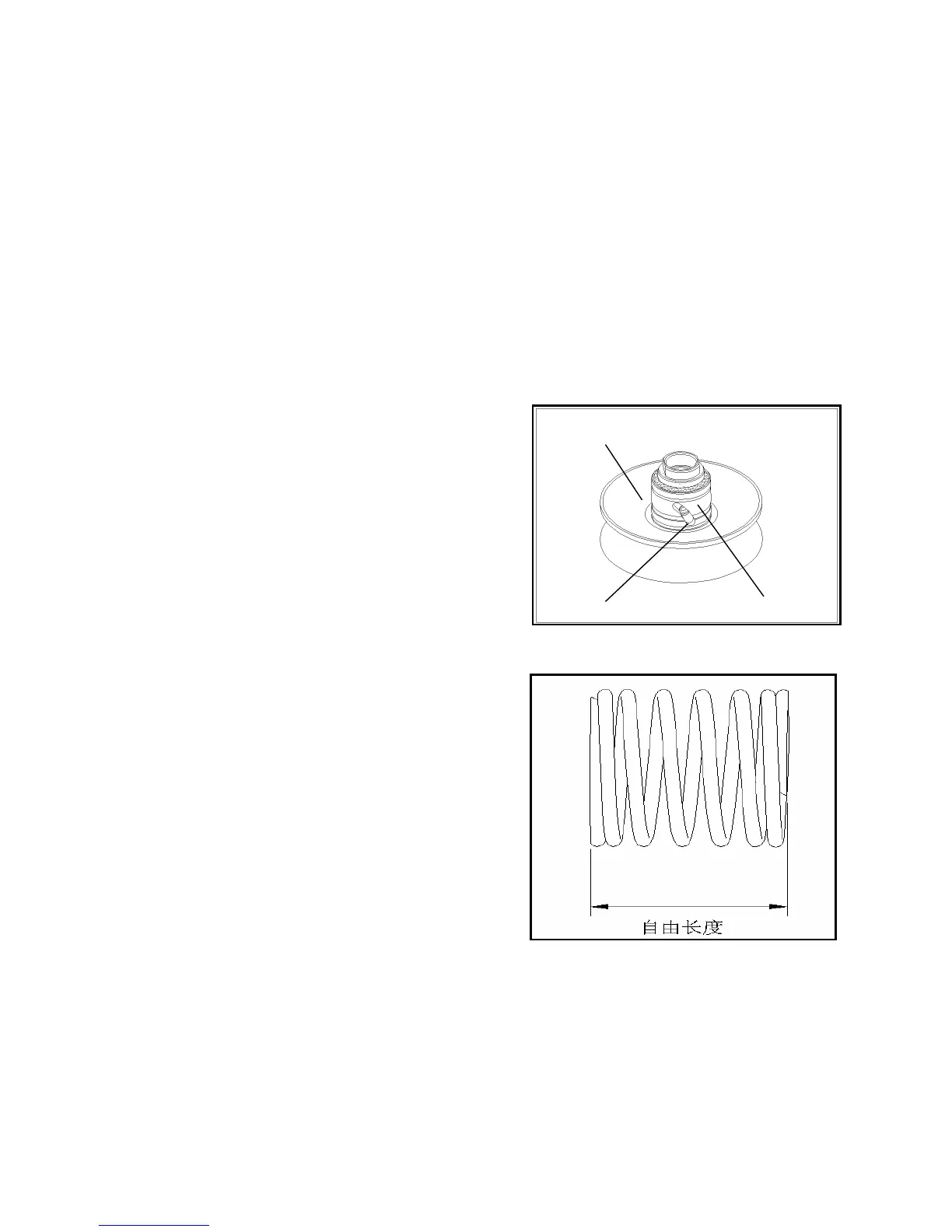

Check free length of clutch spring.
Usage limit: 68mm。
自由长度 free length
从动轮右半 right semi part of driven wheel
从动轮左半 left semi part of driven wheel
Check abrasion of driven wheel.
Measure right semi bushing OD of driven wheel.
Usage limit: 32.94mm。
从动轮右半
从动轮左半
D
riven wheel left semi welding
G
uiding pin
O
il seal
