Generic Onyx 50 - Replacement of Magnetor

- 61 -
Remove the 6p connector of the magnetor
Measure resistance value between the white coils of magnetor with multimeter
Standard value：0.5-10Ω（20）
Replace the magnetor coil when the measured value exceeds the standard value
1.6.1 Magnetor lighting coil
*Note
Check the magnetor lighting coil on the
engine.
Inspection
Remove the 3p connector of the magnetor
Measure resistance value between the green/red coils of
magnetor and the body GND with multimeter
Standard value：2.0-2.5Ω（20）
Replace the magnetor coil when the measured value exceeds

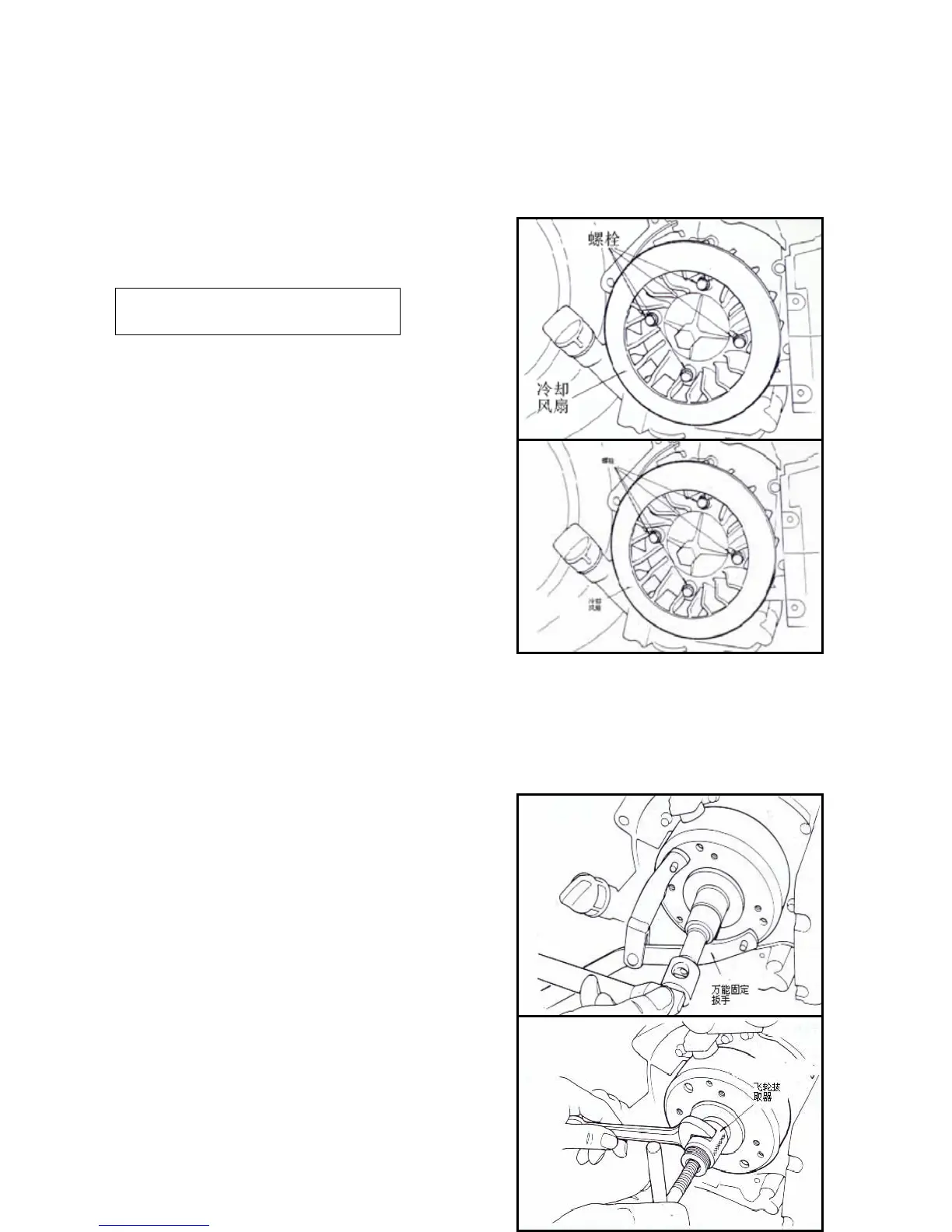

the standard value. 冷却风扇：cooling fan 螺栓：bolt
1.7 Replacement of magnetor
1.7.1Replacement
Remove the body shield.
Remove the right body cover.
Remove the 2 fixing bolts and 2 screw, and remove the fan cover.
Remove the four fixing bolts of cooling fan, and remove the cooling fan then.
Fix the flywheel using the universal spanner.
Remove the fixing bolt of the flywheel.
万能固定扳手：universal spanner
Remove the flywheel using the flywheel remover.
Remove the solid key.
Remove the connector of the alternator wiring.
