- 42 -
Engine oil/filter
Oil level
*Note
•The motorcycle should be parked on a flat ground when
checking its oil level
•2-3 minutes after the engine running, stop for about 2-3
minutes and then check the oil level.
Check the oil level.
Check the oil level.
Add oil to the upper limit when alarm is made by sensor at
the oil level.

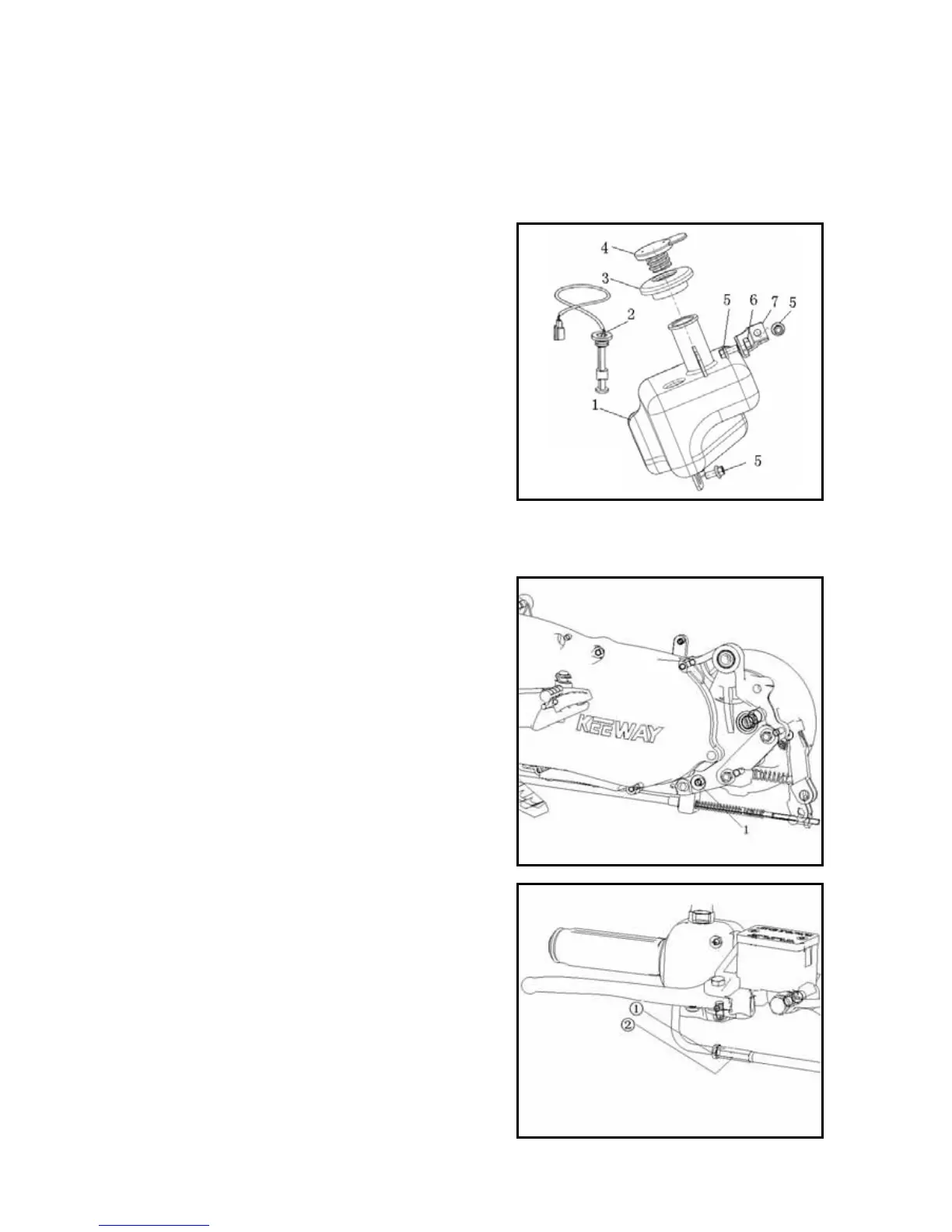

1. Sump 2. Oil Sensor 3.Rubber mat at the sump mouth
4. Sump cover. 5. Bolt M6×12 6.Nut M6
7. Fixing plate of sump
Oil replacement
*Note
It will be easier to change the oil when the engine is warming
up.
Turn off the engine.
Remove the bolt at the bottom of the crankcase and release
oil.
When the oil leaks completely, you can install the bolt and
packing washer after they are cleaned.
Add oil to proper level.
Check the oil leakage when the engine operates at its idling
speed.
Check the oil capacity again.
Cable accelerator inspection/adjustment
Check whether the cable accelerator is smooth or not.
Check the free travel of accelerator
Free travel: 5-10mm
Adjustment shall be made when improperness exist.
