Generic Onyx 50 User Manual

- 104 -

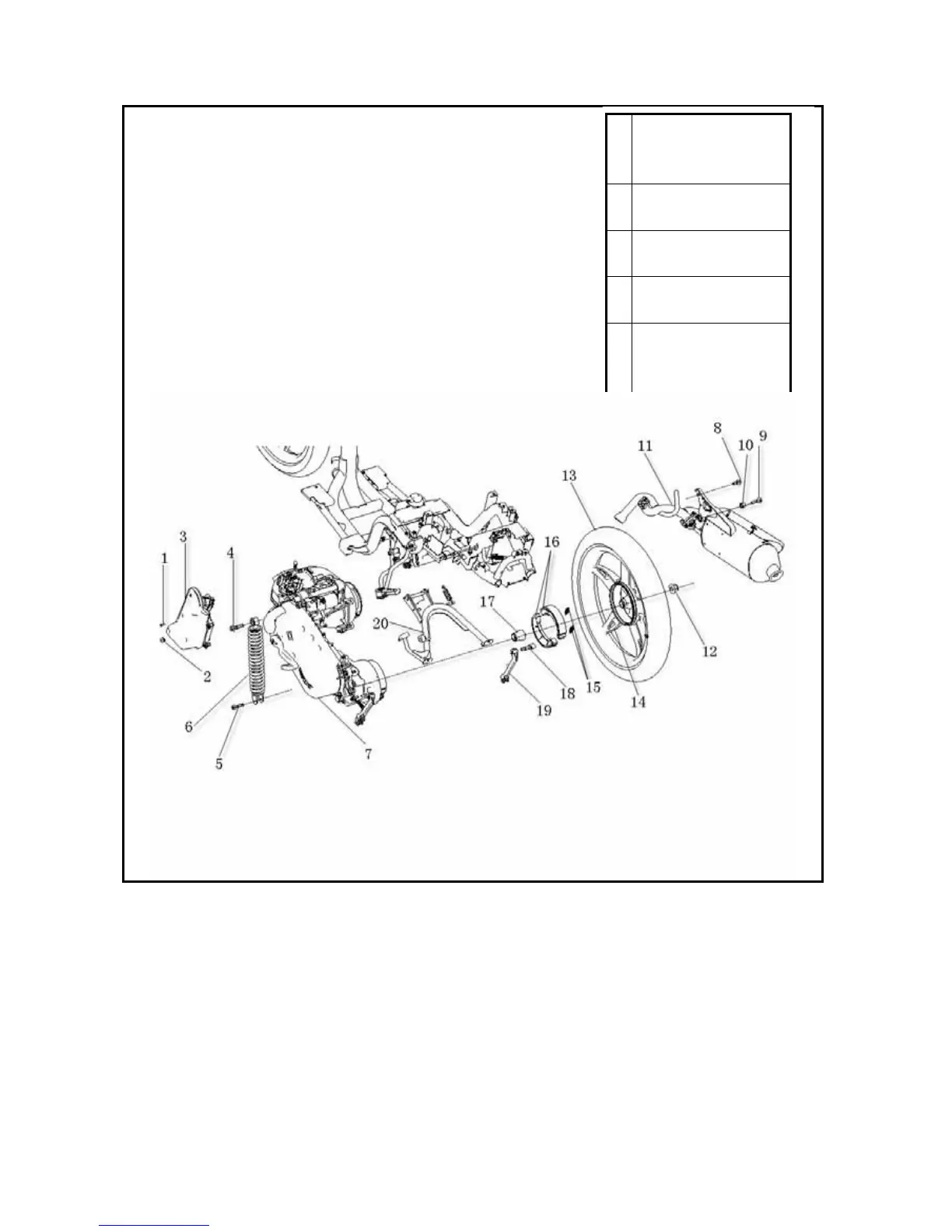

1 self-tapping screw ST4.8X16 2 gas filter standing rubber sleeve 3 gas filter assembly 4 bolt
M10×1.25×40 5 bolt M8×35 6 rear shock absorber assembly 7 motor assembly 8 bolt M8×20 9
bolt M8×30 10 muffler bushing 11 muffler 12 nut M16X1.5 13 vacuum tyre 90/80-16 14 rear
tyre rim assembly 16×1.85 15 brake shoe spring 16 brake shoe assembly 17 dustproof cover 18
rear brake camshaft 19 rear brake rocker arm assembly
Rear wheel
A
Item 12 rear wheel
standing nut torque force:
100-113 N·m
B
Bolt 4 mounting torque
force: 37-44 N·m
C
Bolt 5 mounting torque
force: 22-29 N·m
D
Brake ID:φ140mm
Abrasion limit:φ 141mm
E
Brake shoe thickness:
6.9mm
Abrasion limit: 5.9mm
