Generic Onyx 50 - Failure Diagnosis; Front Fluid Brake

- 87 -
5.2 Failure Diagnosis
Brake
Poor performance of the braking system Slow reaction and tight lever
1. Improper adjustments for the brake 1. Improper adjustments for the brake
2. Brake shoe or brake plate wears 2. Brake shoe or brake plate wears
3. Improper installation for the brake shoe 3. Improper installation for the brake shoe
4. Polluted brake plate of brake shoe
Abnormal noise
1. Brake shoe or brake plate wears
2. Polluted brake plate of brake shoe
5.3 Front fluid brake
5.3.1 Remove
* Note
• Replacement of the brake shoe assembly
• Mark the replaced shoe for the next use

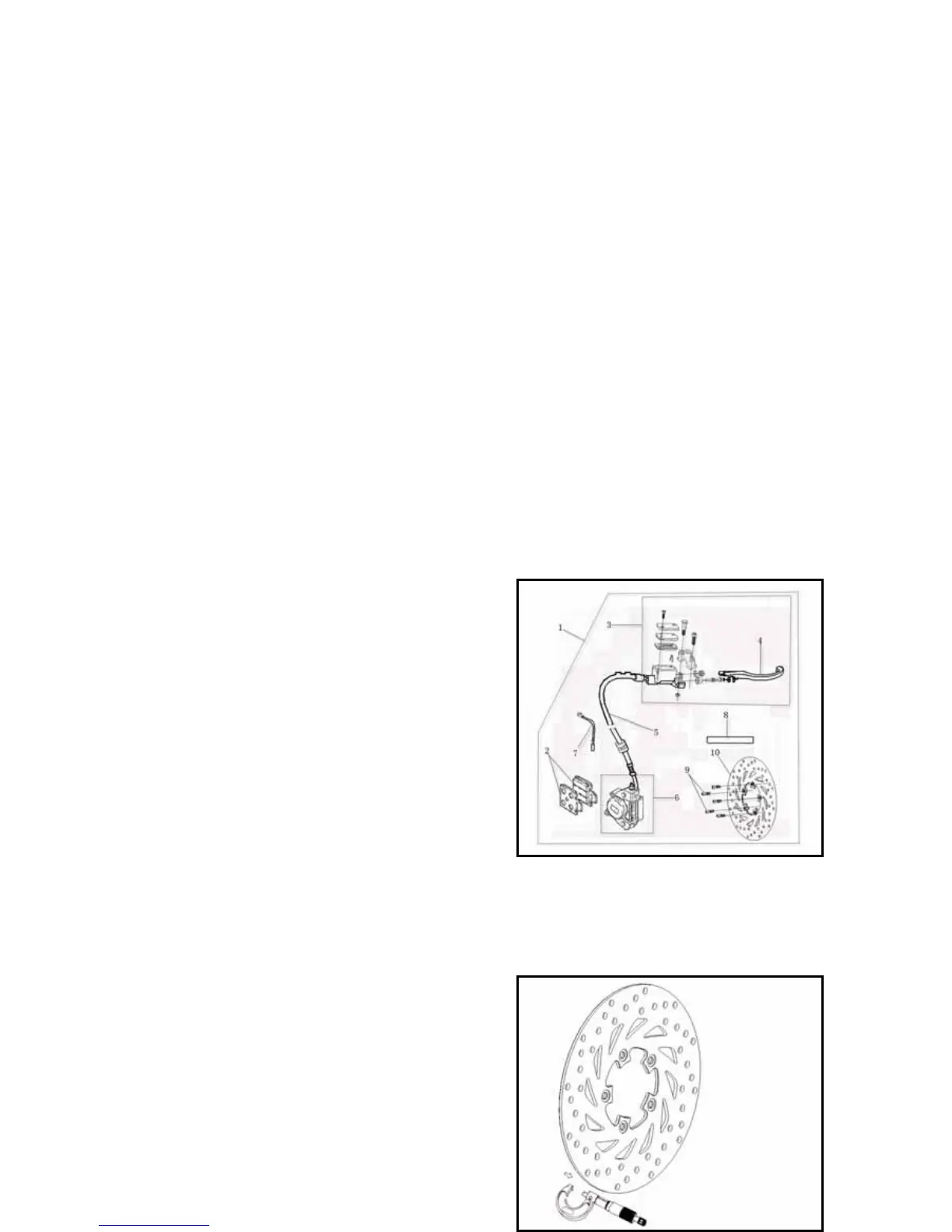

Remove the following parts from the right grip and front
absorber
1.Oil pump component（3）
2. Front brake component（10）
3. Brake cylinder component（6）
4. Friction piece component（2）
5.Brake tube assembly（5）
6. Switch（7）
Note: See Fig. 76 for details
*Note
• Oil should not be allowed to pollute the brake shoe during
installing and removing.
• Use the required cleaner to prevent affecting the function of
the braking system.
Loosen the fixed bolt of the brake cylinder.
Remove the brake cylinder from the front absorber.
