- 101 -
assembly（7）.
Remove throttle line assembly（8）.
Remove front brake switch assembly（18）.
Remove cable clamp assembly（17）.
Remove rear brake cable assembly（13）.
Remove steering handle welding assembly（1）.
7.4.2 Installation
*Note: QJ50QT-22D steering handle is available in P87 of the instruction.
Do the installation according to reversed procedures of removal.
Standing screw of steering handle
Torque force: 40-60 N·m

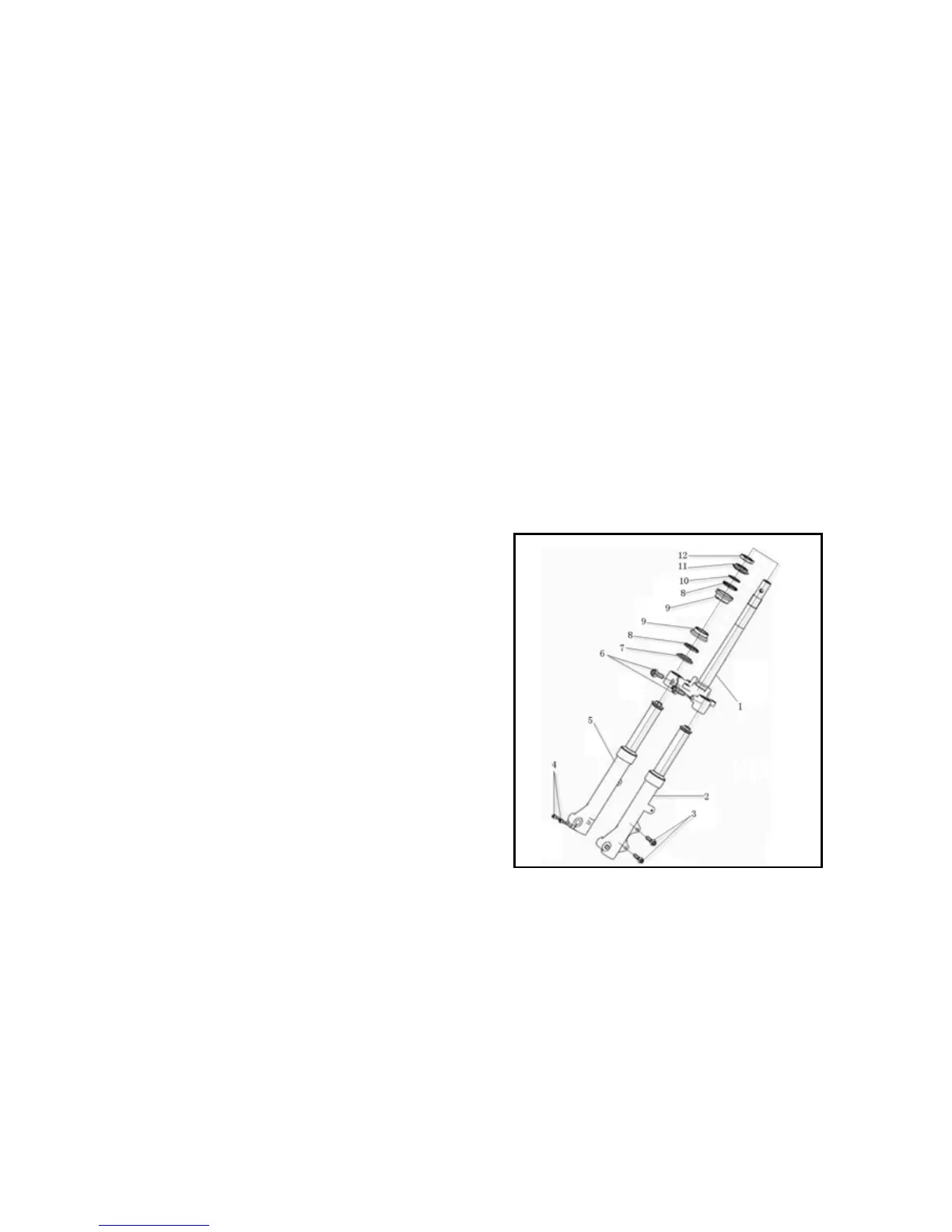

7.5 Front fork
7.5.1 Removal
Remove guard plate, pedal and front cover plate.
Remove lower connecting plate I, front mudguard assembly
and front wheel.
Remove instrument, instrument decoration and front lamp.
Remove front and rear protective guard of handlebar, brake
tube, and odometer cable.
Remove steering handle welding assembly.
Remove the following in order:
Compression nut（12）, upper bearing upper steel bowl（11）,
gasket（10）、steel ball assembly（8）, upper bearing lower steel bowl（9）, and front fork.
Remove lower bearing lower steel bowl （7）and steel ball assembly（8）.
Remove front shock absorber standing bolt（6）.
Remove front left/right shock absorber（2）and（5）.
Tools:
