- 69 -
2.5 Ignition coil
2.5.1 Unload
Unload the body shield.
Unload the spark plug cap.
Unload the primary wire of the ignition coil.
Unload the fixed bolt of the ignition coil,
remove the ignition coil.
Carry out the operations in the opposite order
of unloading during installation.
*Note:
Use the black/white end of primary coil
during installation.

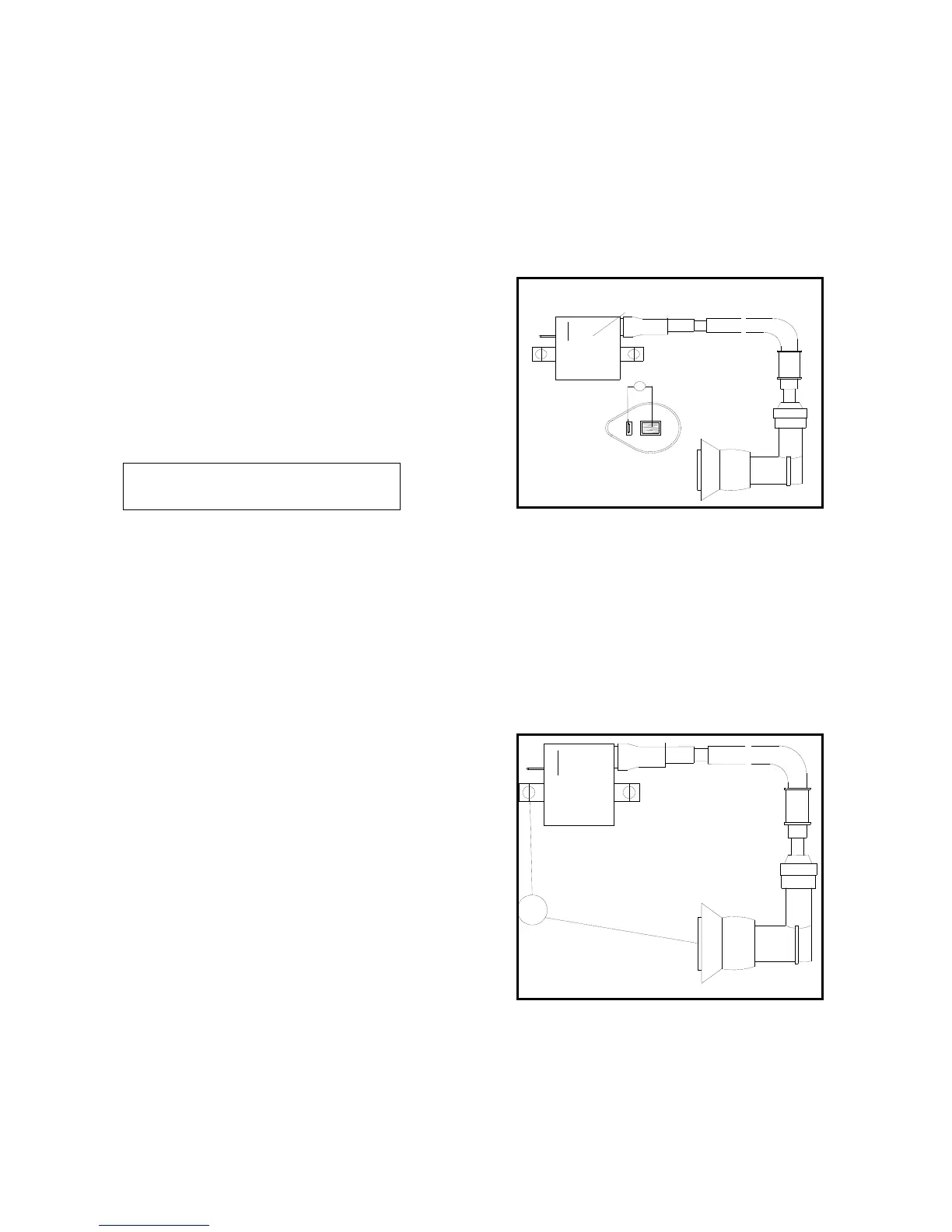

2.5.2 Check the primary coil 点火线图：Diagram of ignition wire
Impedance measuring between the ends of the
primary coil
Standard value：0.6Ω（+/-）10％（20）
If the impedance value is within the range
of the standard value, it is fine.
If the impedance is “∞”, there is wire
break in the coil, replace it with a new one.
2.5.3 Secondary coil
With a spark plug attached. Measure the impedance
value between the wire side and the end of
the spark plug cap.
Standard value：5-11KΩ（20）
If the impedance value is within the range
of the standard value, it is fine.
If the impedance is “∞”, there is wire
break in the coil.
Remove the spark plug cap, measure the impedance
value between a side wire and the negative end.
tandard value：0.5-5.5KΩ（+/-）10％（20）
Ω
点火线图
Ω
