- 70 -
2.6 Trigger
*Note:
Check of the trigger could be carried out on
the engine.
Check

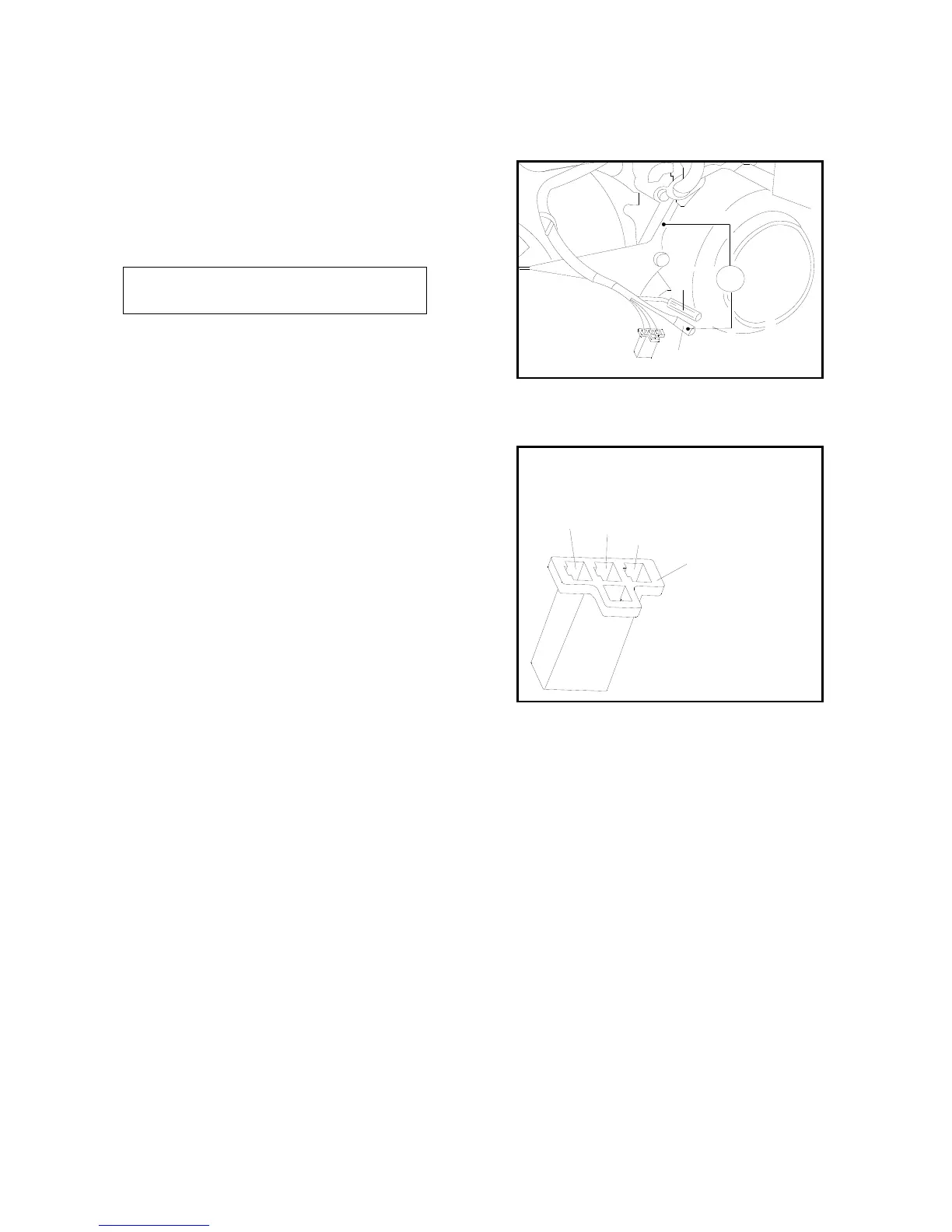

Remove the body shield.
Remove the wire adaptor of the trigger.。 白/绿：white/green 蓝/白：blue/white
Measure the impedance value between the
blue/white end of the wire at the engine
side and the ground strap connection of the
body..
磁电机接口：magnetor interface
黑：black 绿/红: green/red 白：white
Standard value：100-500Ω（20）
Change the alternator when the value is
beyond the range of the standard value.
Activation system
磁电机接口
DJ621- 2. 8× 0. 5
DJ7031- 2. 8- 21
白
黑
绿
/ 红
蓝/ 白
Ω
白/ 绿
