- 102 -
Steering handle standing bolt spanner
Bearing steel bowl removing tool
*Note:
Clean open part of motorcycle guard plate with rag.
Use bearing steel ball removing tool for upper and lower bearing steel bowl.
7.5.3 Installation
Grease bearing steel bowl at the bottom
Confirm steel ball quantity (21pcs).
Do not move steering handle (in case steel ball falls), and
then install steering pole.
Prop steering handle, grease bearing steel bowl on the top
and confirm steel ball quantity (21pcs).
Turn steering handle leftwards and rightwards to make steel
ball match tightly.
Tools:
Standing nut spanner
Turn front fork leftwards and rightwards to confirm it is
smooth. No loose condition is permitted.
Procedures:
Install front shock absorber assembly.
Installation of steering handle, large lamp, brake tube,
odometer cable and instrument
Installation of motorcycle guard plate
Installation of front wheel
Front shock absorber assembly standing bolt
Torque force: 37-44 N·m
Onyx 50 front fork oil volume: 80ml - Castrol SAE 10W

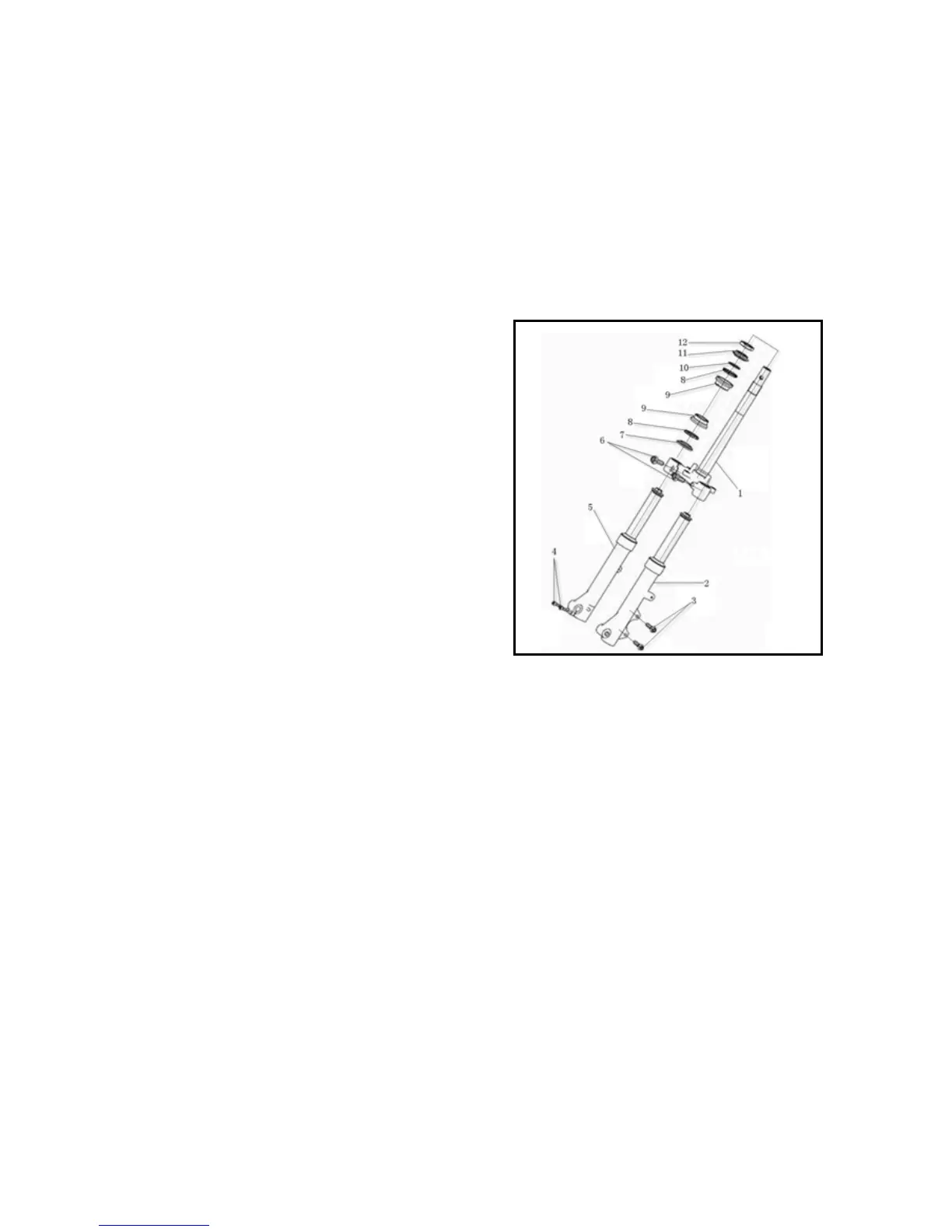

*Note: QJ50QT-22D front fork removing diagram is available in P86 of the instruction.
