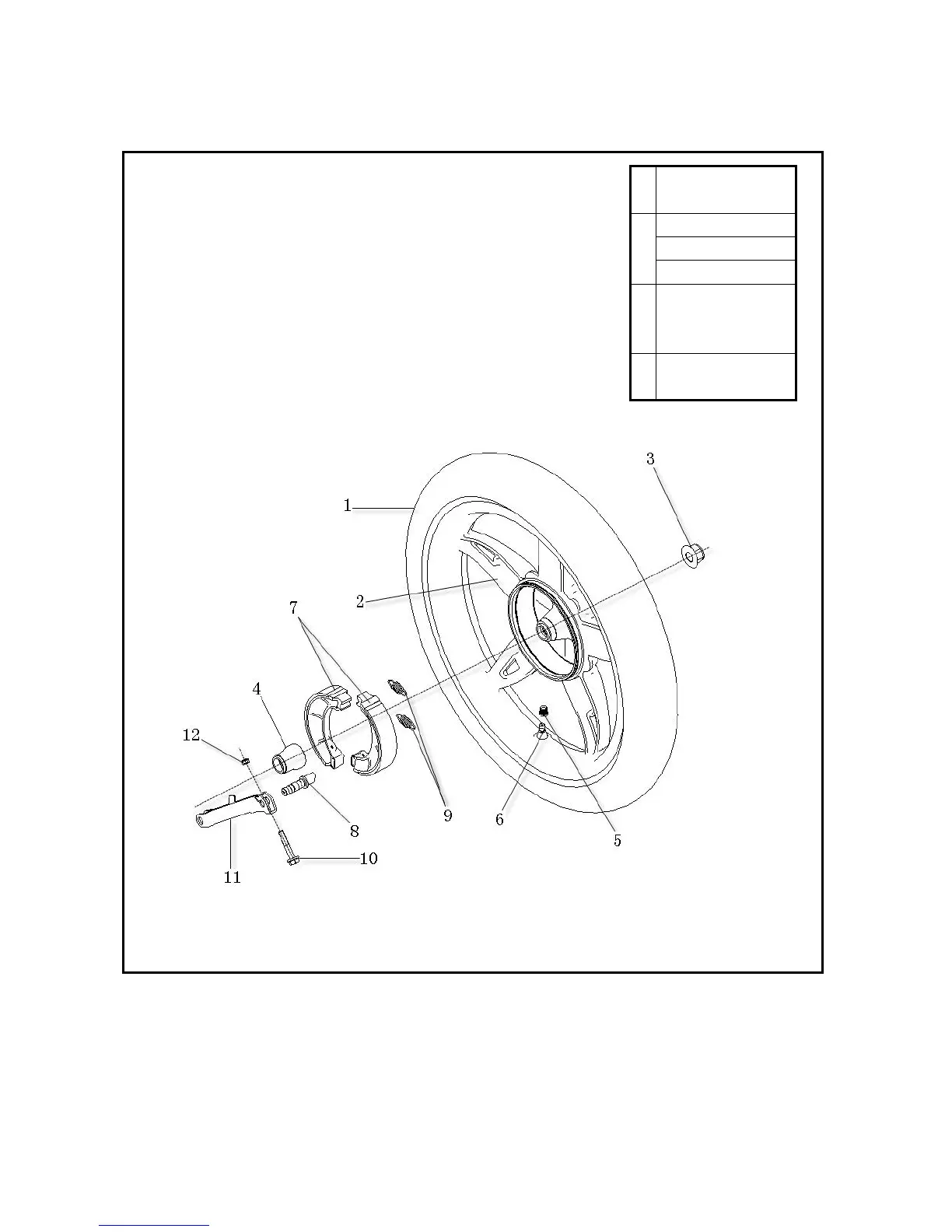

1 vacuum tyre 90/80-16 2 rear tyre rim assembly 16×1.85 3 nut M16X1.5 4 dustproof cover 5 valve
cap 6 valve 7 brake shoe assembly 8 rear brake camshaft 9 brake shoe spring 10 bolt M6X30
11 rear brake rocker assembly
A
Wheel dimension:
90/80-16
Wheel rim tilt limit:
Vertical: 2.0mm
B
Horizontal: 2.0mm
C
Item 10 rear wheel
standing nut torque
force: 100-113 N·m
D
Rear wheel certificate
No.:E11 75R-001063
