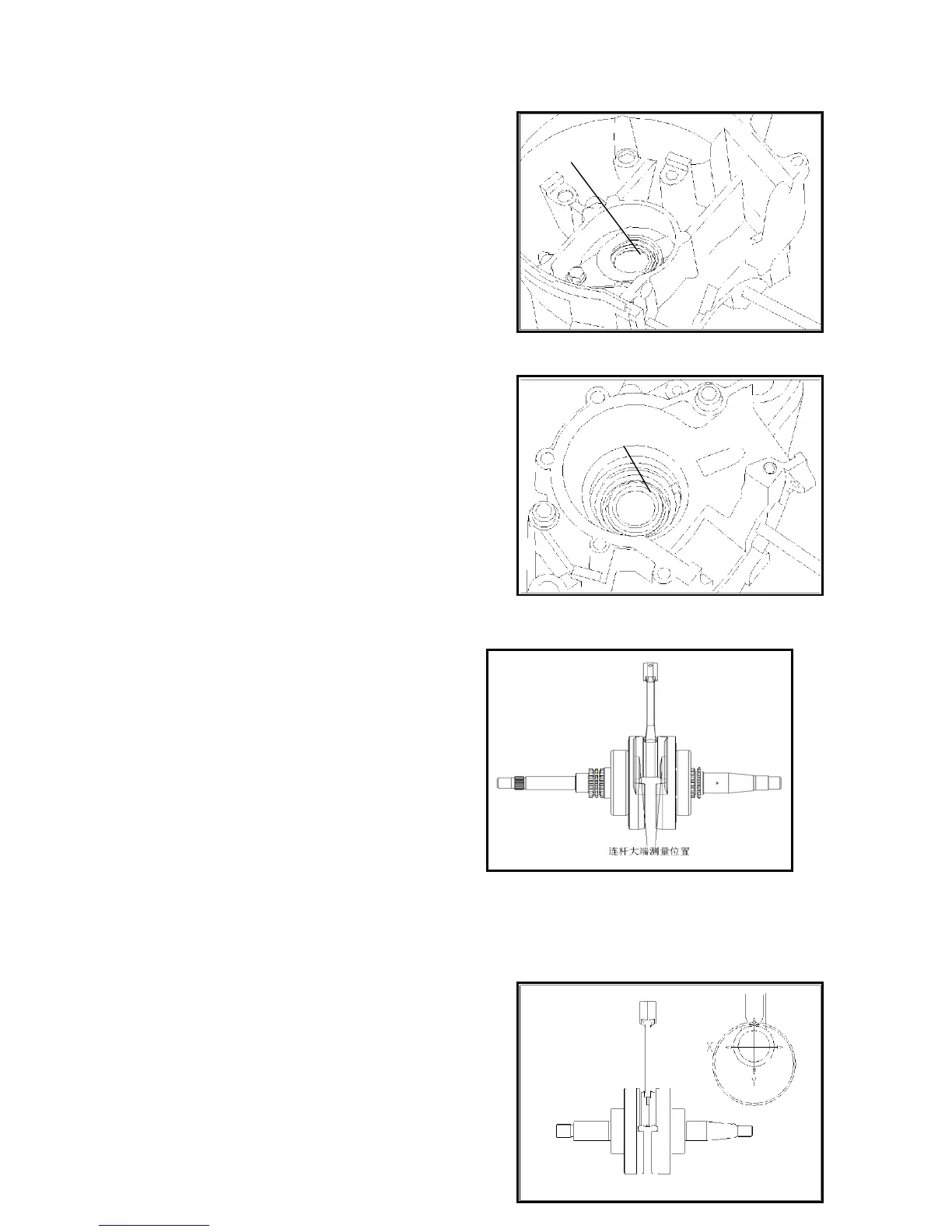

Remove oil seal from left crankcase.

Remove oil seal from right crankcase.

17.3.2 Inspection

Right-left clearance of connecting rod big end.

Usage limit：0.6mm。

连杆大端测量位置

Measuring location of connecting rod

Clearance between X-Y orientation of connecting rod big

end.

Usage limit: 0.05mm。

Oil seal
