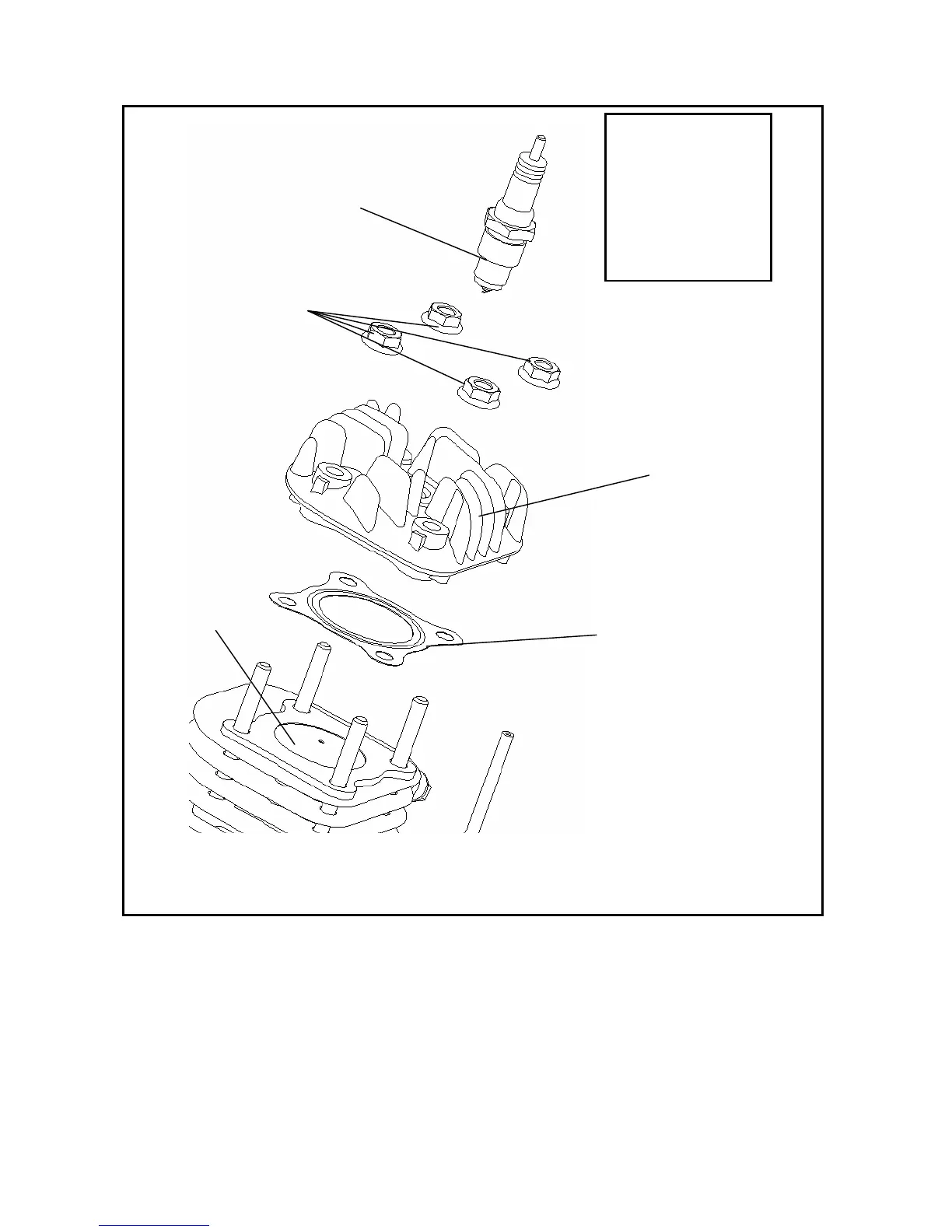

1 spark plug 2 cylinder cap standing bolt 3 cylinder cap 4 cylinder gasket 5 Cylinder
Attention: The
cylinder cap bears
large bolt preload to
ensure seal between
the cylinder cap and
the cylinder body.
Preload value: 50 Nm
2
1
3
4
5
