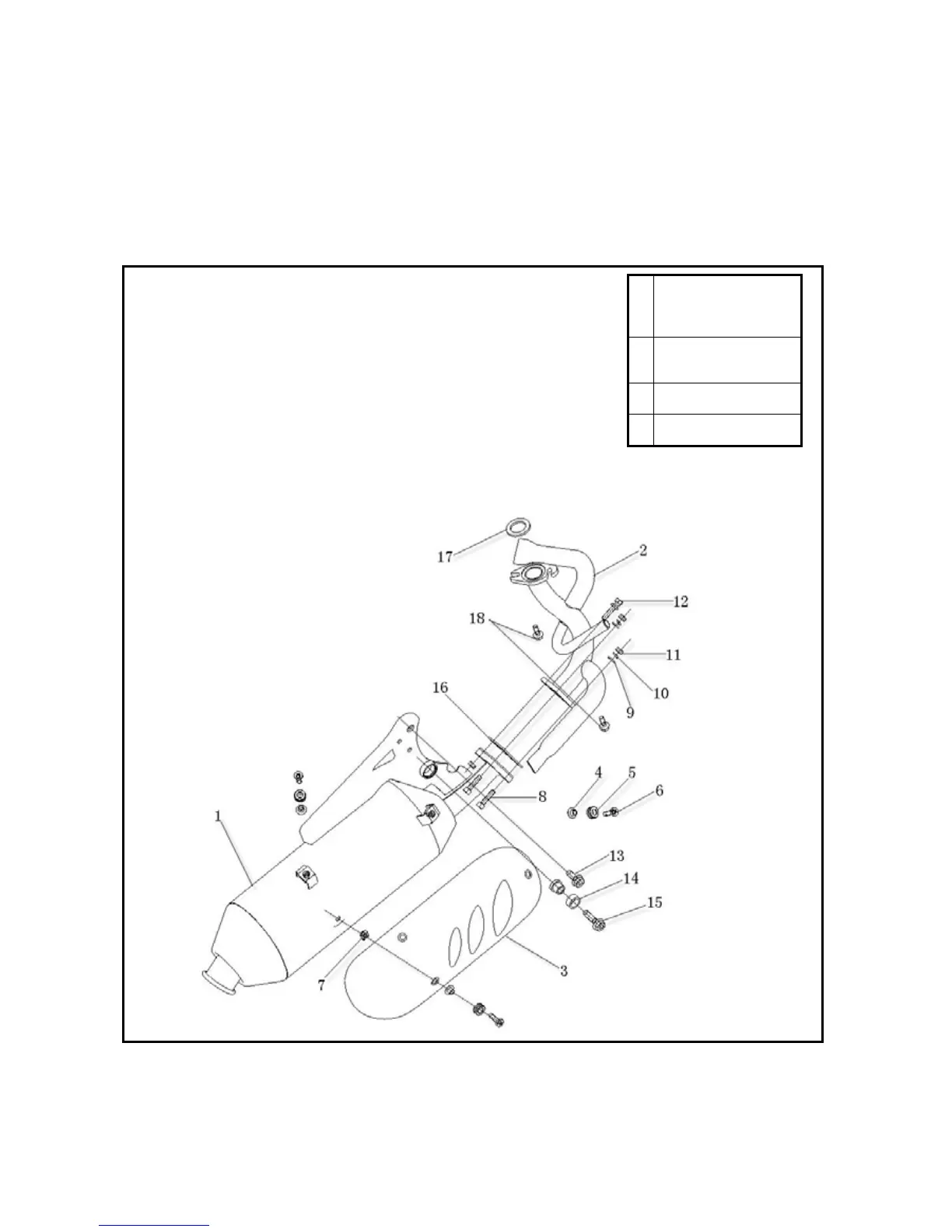

Muffler
1 muffler shell component 2 gas discharge component 3 muffler decoration plate 4 standing spacer 5
rubber spacer 6 bolt 7 card nut 8 screw M6×25 9 gasket Ф6 10 elastic gasket Ф6 11 nut M6
A
Torque force of muffler
connector standing bolt
8:
5-9 N·m
B
Torque force of muffler
standing bolt 18: 5-9
N·m
C
Torque force of standing
bolt 13: 22-29 N·m
D
Torque force of bolt 14:
22-92 N·m
