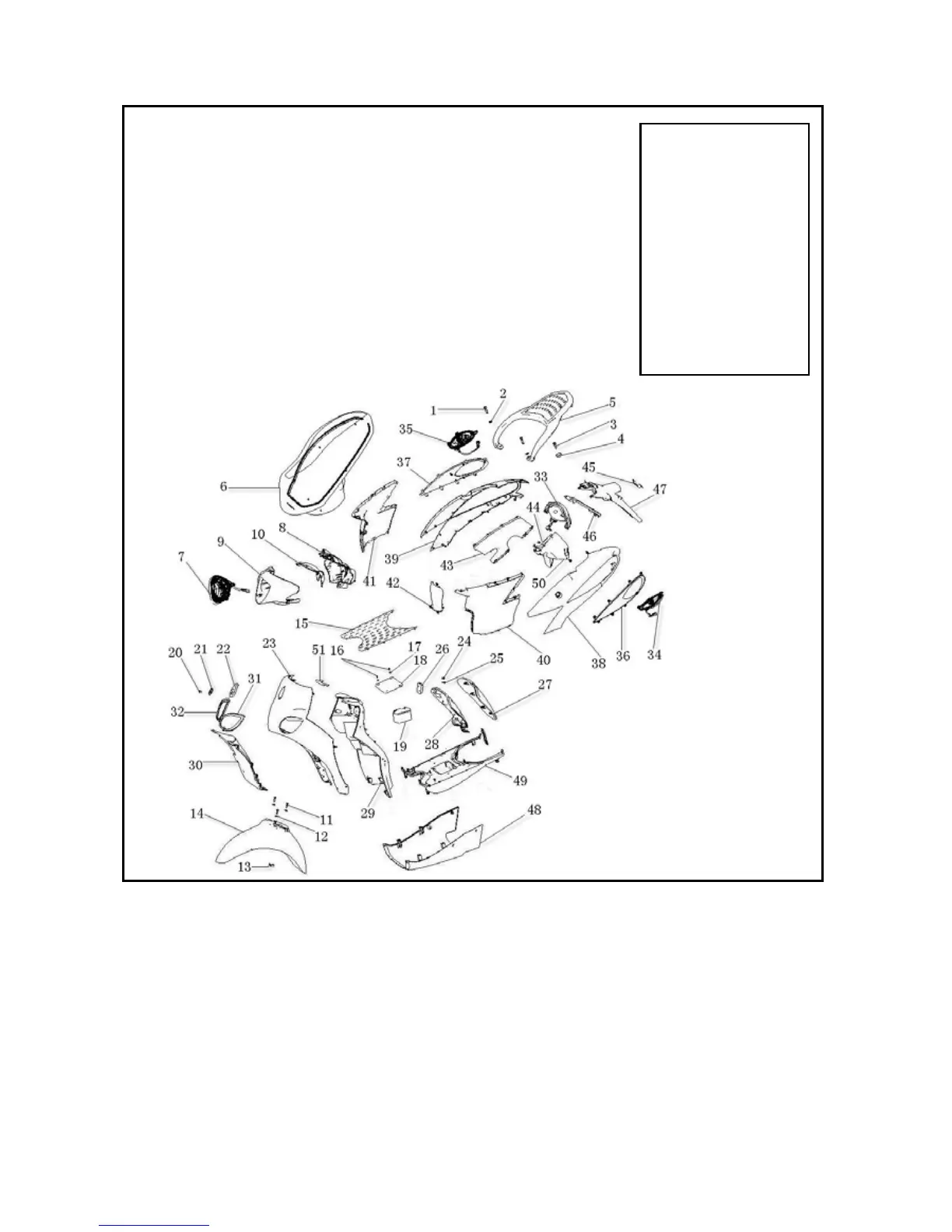

1Soket head cap screw M8×25 2 gasket 8 3 bolt M8×25 4 rubber cover 5 rear rack assembly 6 cushion
assembly 7 headlamp 8 instrument decorative part 9 front handle bar shield 10 rear handle bar shield 11
bolt M6×25 12 gasket Φ6 13 odometer wire clip 14 front mudguard 15 rubber pedal 16 self tapping
screw ST4.2×13 17 gasket Φ5 18 battery cover 19 battery 20 bolt M6×14 21 Black bird crystal 22
Label base 23 Front shield panel 24 Bolt M6×12 25 Bolt M6×16 26 Helmet hook 27 Rear cover of
front box 28 Reinforced board for rear cover of front box 29 Foot protective board 30 lower junction plate I
31 Left decorative plate of front cover 32 Right decorative plate of front cover 33 taillight 34 rear left turn
signal lamp 35 rear right turn signal lamp 36 left decorative part of fender 37 right decorative part of fender
38 left fender 39 right fender 40 front left fender 41 front left fender 42 spark plug cover 43 rear
mudguard 44 rear mudguard rack part 45 bracket for rear license plate 46 reinforced part of rear mudguard
*Note
Do not damage the body
when removing.
Do not damage the hook of
the body.
Do match the grooves for
the panels.
Correctly install the hooks
of each part.
Do not damage the
accessories while installing.
