Grundfos IO 111 User Manual

English (GB)
14
6.6 Bus protocol
By setting the bus protocol, the type of bus
connection is chosen.
GENIbus is a Grundfos standard protocol for
Grundfos products.
The Modbus protocol is used for communication
between the IO 111 and a control unit from another
supplier.
6.7 SM 111 sensor detection
First time voltage is applied, the SM 111 will check all
inputs to detect which sensors are connected. If a
valid signal is measured, the SM 111 will register that
a sensor is present and save the status.
If the IO 111 indicates a sensor error or configuration
error, the sensor detection must be changed, see
12. Fault finding.
Change DIP switch No 9 on the IO 111 from OFF to
ON.
After approx. 5 seconds, the SM 111 will reset, and
the sensor detection is completed. Then set the DIP
switch to OFF again.
Bus protocol Description
GENIbus
Grundfos standard protocol for communication between
Grundfos products
Modbus
See www.grundfos.com, WebCAPS, Literature,
Accessories, Accessories, electrical and Operating the
IO 111 via Modbus, document number 96623373.

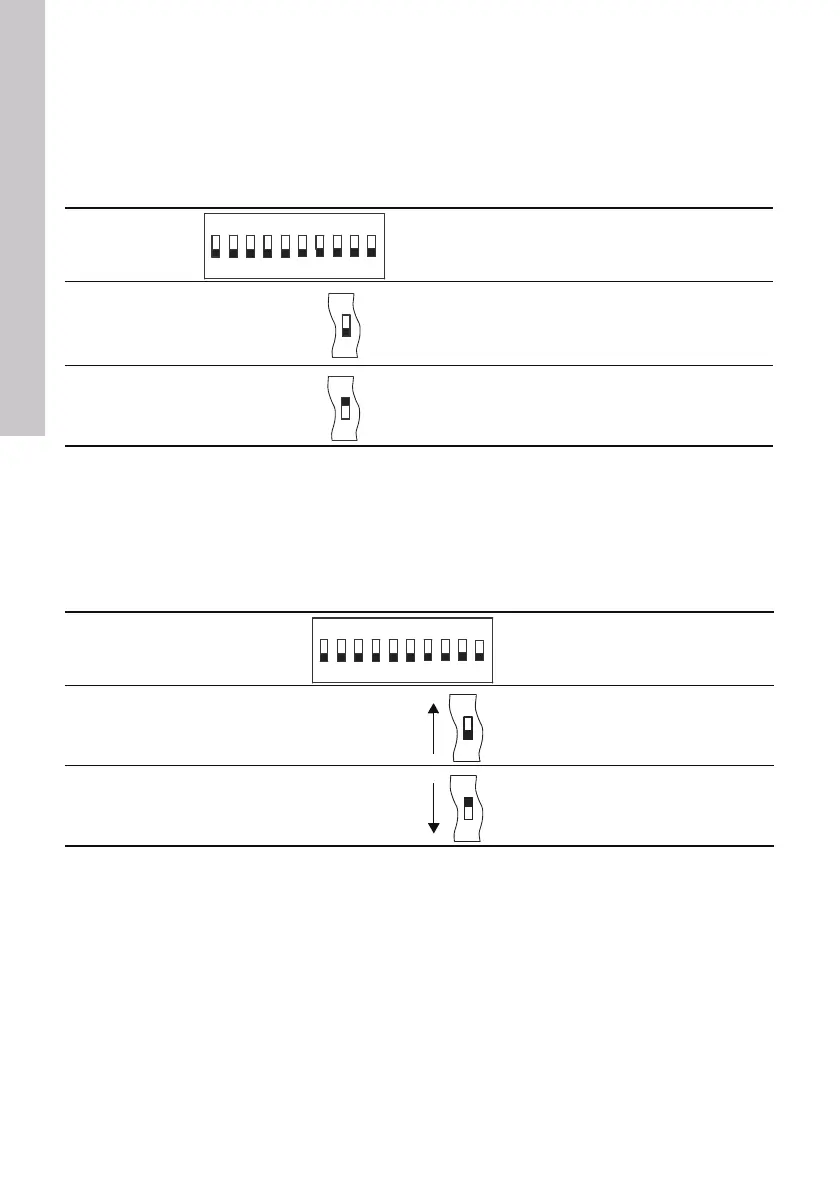

ON DIP
12345678910
8
8
Sensor detection Description
Activated
Change DIP switch No 9 on the IO 111
from OFF to ON. After approx.
5 seconds, the SM 111 will reset, and
the sensor detection is completed.
Set back the DIP switch Set the DIP switch to OFF.
ON DIP
12345678910
9
9
Grundfos.bk Page 14 Tuesday, January 25, 2011 12:56 PM
