2.5 WIO sensor
Marking:
Grundfos WIO sensor 96xxxxxx PCxxxx-xxx, max.
24 VDC, T
amb.
0 °C to +70 °C; KEMA 05ATEX2176X,
EX II 2GD Ex mb II T4, T 135 °C
IEC Ex KEM 05.0019X, Ex mb II T4, CE 0344, IP68.
2.6 Variants
The IO 111 is available in two variants:
• without communication module (standard variant)
• with communication module.
The product number (pos. 2) on the nameplate
shows the variant:
• 96575362 = standard variant.
• 96177804 = variant with communication module.
2.7 Potentially explosive environments
The IO 111 must not be installed in explosive
environments, but may be used together with
Grundfos SE pumps approved for installation in
potentially explosive environments.
3. Identification
3.1 Nameplate
The nameplate is fitted on the side of the IO 111.

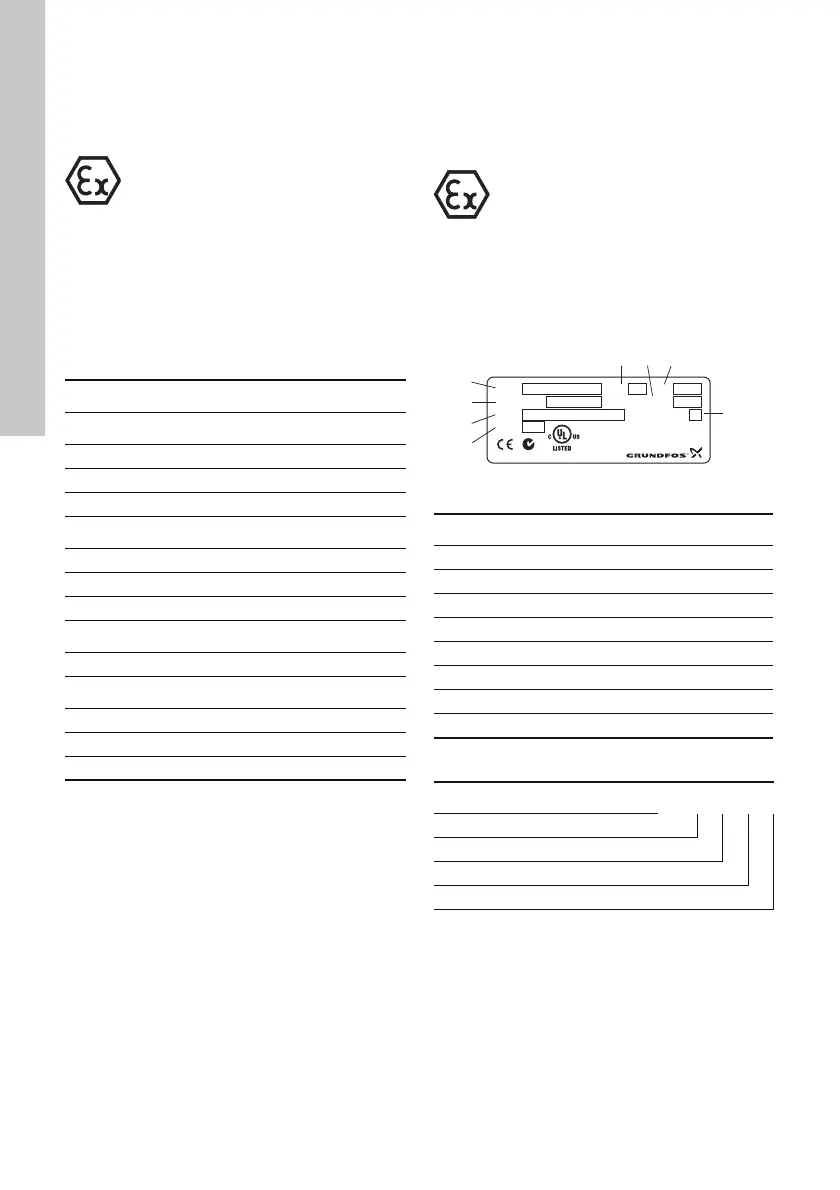

Fig. 3 Nameplate
3.2 Type key
4. Storage
The IO 111 may be stored for maximum two years,
see date on the box label.
Warning
The WIO sensor has been approved
according to EN/IEC 60079-18: 2004.
In Ex and IEC Ex applications, the
maximum current supplied to the
sensor must not exceed 350 mA
according to EN/IEC 60079-18: 2004.
Note: As the IO 111 is equipped with
this current limitation, no further
protection is required when using the
IO 111.
Type Product no.
WIO for SE1/SEV
Sensor with 340 mm cable 96617002
Sensor with 390 mm cable 96617001
Sensor with 430 mm cable 96616244
WIO for S pumps, range 50 - 70
Sensor with 10 m cable 96294840
Sensor with 25 m cable 96295122
Sensor with 50 m cable 96294841
WIO for S pumps, range 72
Sensor with 2.5 m cable 96293944
WIO for S pumps, range 74 - 78
Sensor with 10 m cable 96295150
Sensor with 25 m cable 96295149
Sensor with 50 m cable 96295148
Warning
ATEX/IECEx protection can be
activated by means of DIP switch 10
(pos. 11). This enables additional
alarms, see 6.8 ATEX/IECEx protection.
TM03 3488 0308
Pos. Description
1 Type designation
2 Product number
3 Rated voltage
4Power
5 Version number
6 Serial number
7 Production code (year and week)
8 Enclosure class
CodeMeaning IO 111
IO Input/output unit
1 Simple complexity
1 Controller series
1 Model number
96177821
Type
Product No.
U
N
P
MAX
Made in Denmark
Serial No..
P.c.
IP
V-No.
1
2
3
4
576
8
IO111
96575362
24Vac 50/60Hz, 24 VDC
5W
01
20
0712
3PPJ
OPEN-TYPE
MASSURING EQUIPMENT
