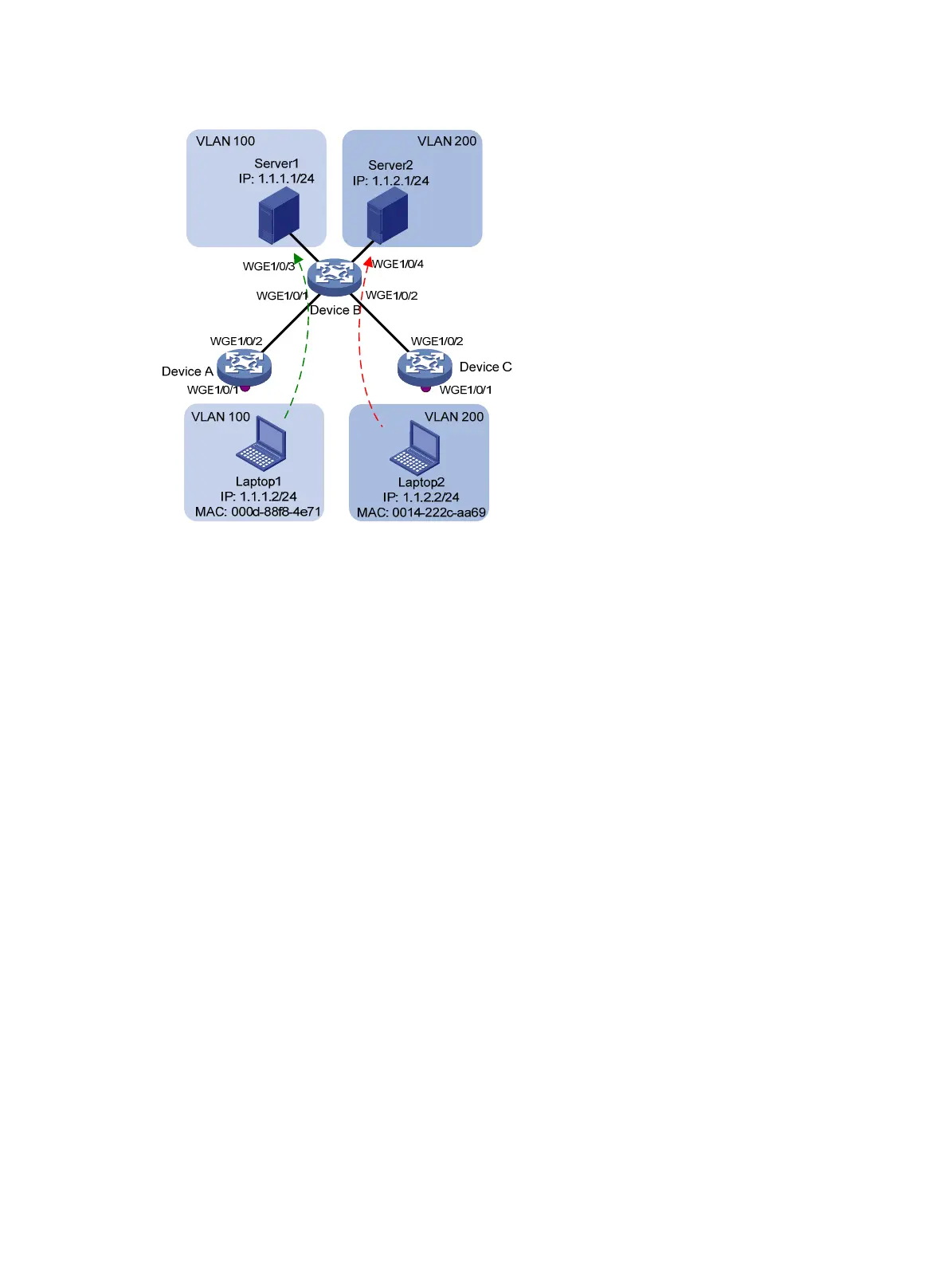

Figure 4 Network diagram

Procedure

1. Configure Device A:

# Create VLANs 100 and 200.

<DeviceA> system-view

[DeviceA] vlan 100

[DeviceA-vlan100] quit

[DeviceA] vlan 200

[DeviceA-vlan200] quit

# Associate the MAC addresses of Laptop 1 and Laptop 2 with VLANs 100 and 200,

respectively.

[DeviceA] mac-vlan mac-address 000d-88f8-4e71 vlan 100

[DeviceA] mac-vlan mac-address 0014-222c-aa69 vlan 200

# Configure Twenty-FiveGigE 1/0/1 as a hybrid port, and assign it to VLANs 100 and 200 as an

untagged VLAN member.

[DeviceA] interface twenty-fivegige 1/0/1

[DeviceA-Twenty-FiveGigE1/0/1] port link-type hybrid

[DeviceA-Twenty-FiveGigE1/0/1] port hybrid vlan 100 200 untagged

# Enable the MAC-based VLAN feature on Twenty-FiveGigE 1/0/1.

[DeviceA-Twenty-FiveGigE1/0/1] mac-vlan enable

[DeviceA-Twenty-FiveGigE1/0/1] quit

# Configure the uplink port (Twenty-FiveGigE 1/0/2) as a trunk port, and assign it to VLANs 100

and 200.

[DeviceA] interface twenty-fivegige 1/0/2

[DeviceA-Twenty-FiveGigE1/0/2] port link-type trunk

[DeviceA-Twenty-FiveGigE1/0/2] port trunk permit vlan 100 200

[DeviceA-Twenty-FiveGigE1/0/2] quit

2. Configure Device B:
