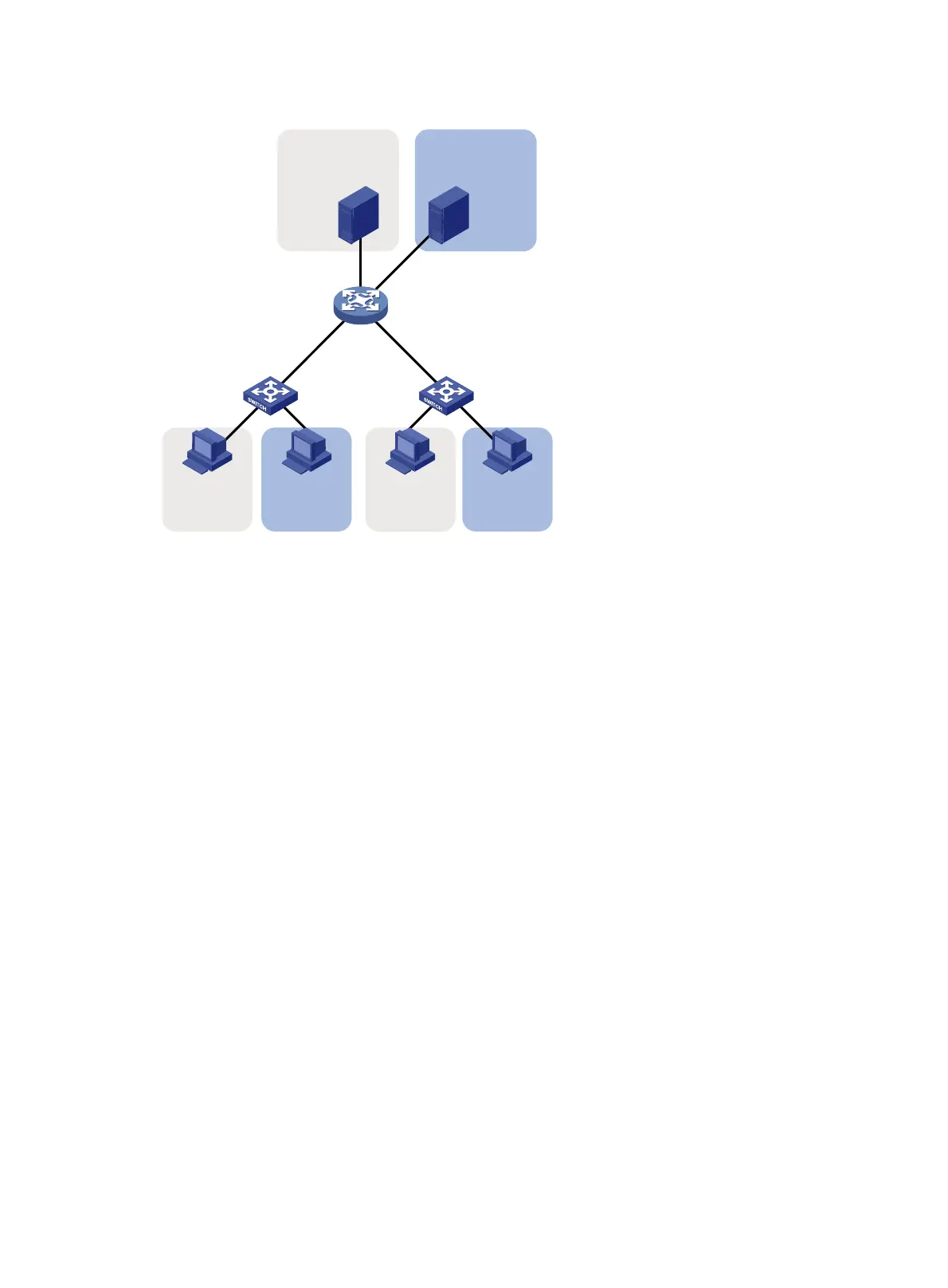

Figure 6 Network diagram
Procedure
In this example, L2 Switch A and L2 Switch B use the factory configuration.
1. Configure Device:
# Create VLAN 100, and configure the description for VLAN 100 as protocol VLAN for IPv4.
<Device> system-view
[Device] vlan 100
[Device-vlan100] description protocol VLAN for IPv4
# Assign Twenty-FiveGigE 1/0/3 to VLAN 100.
[Device-vlan100] port twenty-fivegige 1/0/3
[Device-vlan100] quit
# Create VLAN 200, and configure the description for VLAN 200 as protocol VLAN for IPv6.
[Device] vlan 200
[Device-vlan200] description protocol VLAN for IPv6
# Assign Twenty-FiveGigE 1/0/4 to VLAN 200.
[Device-vlan200] port twenty-fivegige 1/0/4
# Configure VLAN 200 as a protocol-based VLAN, and create an IPv6 protocol template with
the index 1 for VLAN 200.
[Device-vlan200] protocol-vlan 1 ipv6
[Device-vlan200] quit
# Configure VLAN 100 as a protocol-based VLAN. Create an IPv4 protocol template with the
index 1, and create an ARP protocol template with the index 2. (In Ethernet II encapsulation, the
protocol type ID for ARP is 0806 in hexadecimal notation.)
[Device] vlan 100
[Device-vlan100] protocol-vlan 1 ipv4
[Device-vlan100] protocol-vlan 2 mode ethernetii etype 0806
[Device-vlan100] quit
WGE1/0/2WGE1/0/1
WGE1/0/3
WGE1/0/4
IPv4 host A IPv4 host BIPv6 host A IPv6 host B
IPv4 server IPv6 server
Device
L2 switch A
L2 switch B
VLAN 100 VLAN 100
VLAN 100
VLAN 200 VLAN 200
VLAN 200
