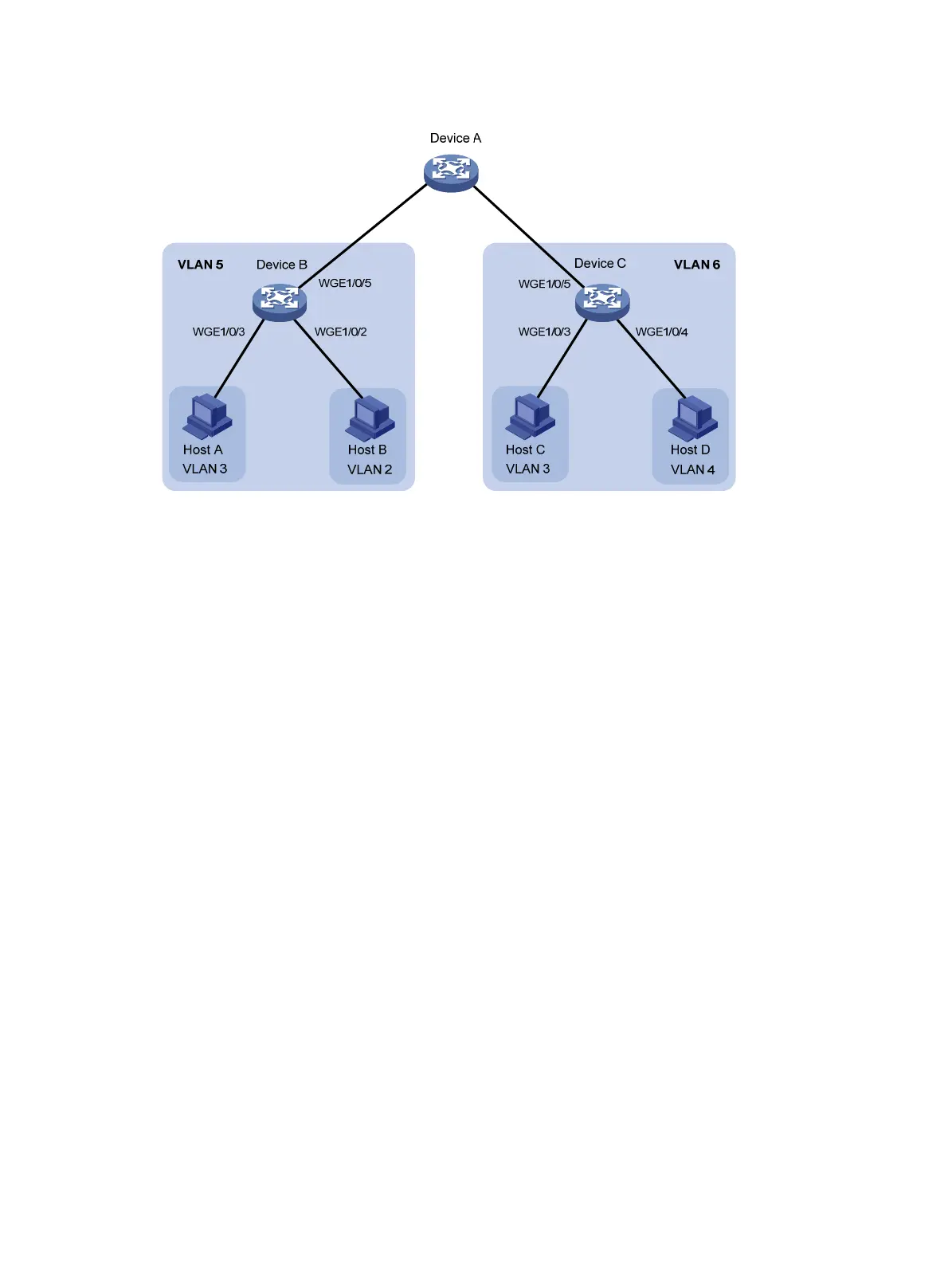

Figure 9 Network diagram

Procedure

This example describes the configurations on Device B and Device C.

1. Configure Device B:

# Configure VLAN 5 as a primary VLAN.

<DeviceB> system-view

[DeviceB] vlan 5

[DeviceB-vlan5] private-vlan primary

[DeviceB-vlan5] quit

# Create VLANs 2 and 3.

[DeviceB] vlan 2 to 3

# Associate secondary VLANs 2 and 3 with primary VLAN 5.

[DeviceB] vlan 5

[DeviceB-vlan5] private-vlan secondary 2 to 3

[DeviceB-vlan5] quit

# Configure the uplink port (Twenty-FiveGigE 1/0/5) as a promiscuous port of VLAN 5.

[DeviceB] interface twenty-fivegige 1/0/5

[DeviceB-Twenty-FiveGigE1/0/5] port private-vlan 5 promiscuous

[DeviceB-Twenty-FiveGigE1/0/5] quit

# Assign downlink port Twenty-FiveGigE 1/0/2 to VLAN 2, and configure the port as a host port.

[DeviceB] interface twenty-fivegige 1/0/2

[DeviceB-Twenty-FiveGigE1/0/2] port access vlan 2

[DeviceB-Twenty-FiveGigE1/0/2] port private-vlan host

[DeviceB-Twenty-FiveGigE1/0/2] quit

# Assign downlink port Twenty-FiveGigE 1/0/3 to VLAN 3, and configure the port as a host port.

[DeviceB] interface twenty-fivegige 1/0/3

[DeviceB-Twenty-FiveGigE1/0/3] port access vlan 3

[DeviceB-Twenty-FiveGigE1/0/3] port private-vlan host

[DeviceB-Twenty-FiveGigE1/0/3] quit
