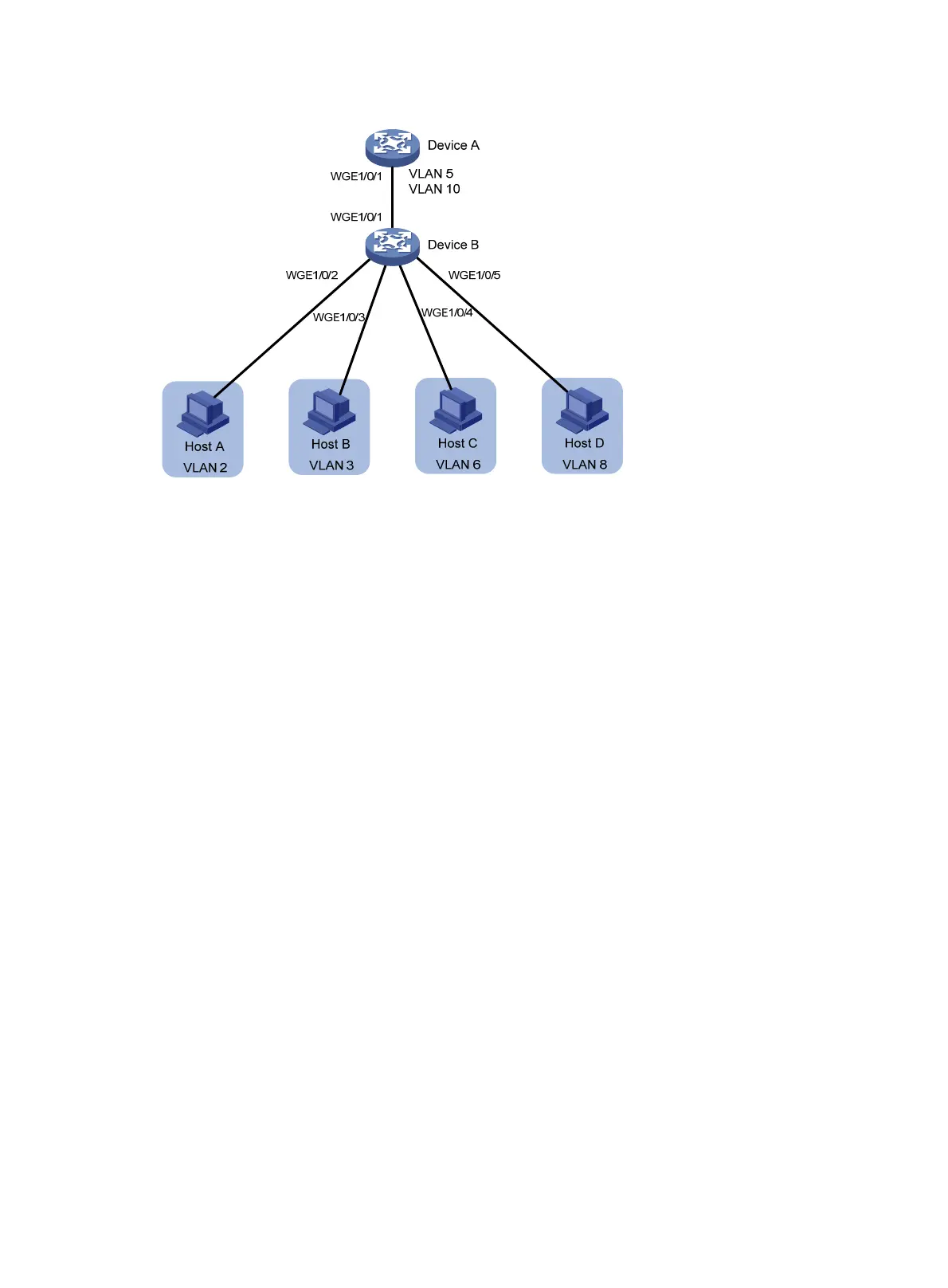

Figure 10 Network diagram

Procedure

1. Configure Device B:

# Configure VLANs 5 and 10 as primary VLANs.

<DeviceB> system-view

[DeviceB] vlan 5

[DeviceB-vlan5] private-vlan primary

[DeviceB-vlan5] quit

[DeviceB] vlan 10

[DeviceB-vlan10] private-vlan primary

[DeviceB-vlan10] quit

# Create VLANs 2, 3, 6, and 8.

[DeviceB] vlan 2 to 3

[DeviceB] vlan 6

[DeviceB-vlan6] quit

[DeviceB] vlan 8

[DeviceB-vlan8] quit

# Associate secondary VLANs 2 and 3 with primary VLAN 5.

[DeviceB] vlan 5

[DeviceB-vlan5] private-vlan secondary 2 to 3

[DeviceB-vlan5] quit

# Associate secondary VLANs 6 and 8 with primary VLAN 10.

[DeviceB] vlan 10

[DeviceB-vlan10] private-vlan secondary 6 8

[DeviceB-vlan10] quit

# Configure the uplink port (Twenty-FiveGigE 1/0/1) as a trunk promiscuous port of VLANs 5

and 10.

[DeviceB] interface twenty-fivegige 1/0/1

[DeviceB-Twenty-FiveGigE1/0/1] port private-vlan 5 10 trunk promiscuous

[DeviceB-Twenty-FiveGigE1/0/1] quit
