Haas 96-8000 - G76 Fine Boring Canned Cycle (Group 09)

165
96-8000 Rev AC
May 2010
G & M Codes
Settings
L Number of repeats (How many holes to tap) if G91 (Incremental
Mode) is used
R Position of the R plane (position above the part) where tapping
starts
X X-axis location of hole
Y Y-axis location of hole
Z Position of the Z-axis at the bottom of hole
.
X
Z
Y
X
Z
Y
G98 Initial Starting Plane
Initial Starting Plane
G99 Rapid Plane
R Plane
R Plane
Z Depth

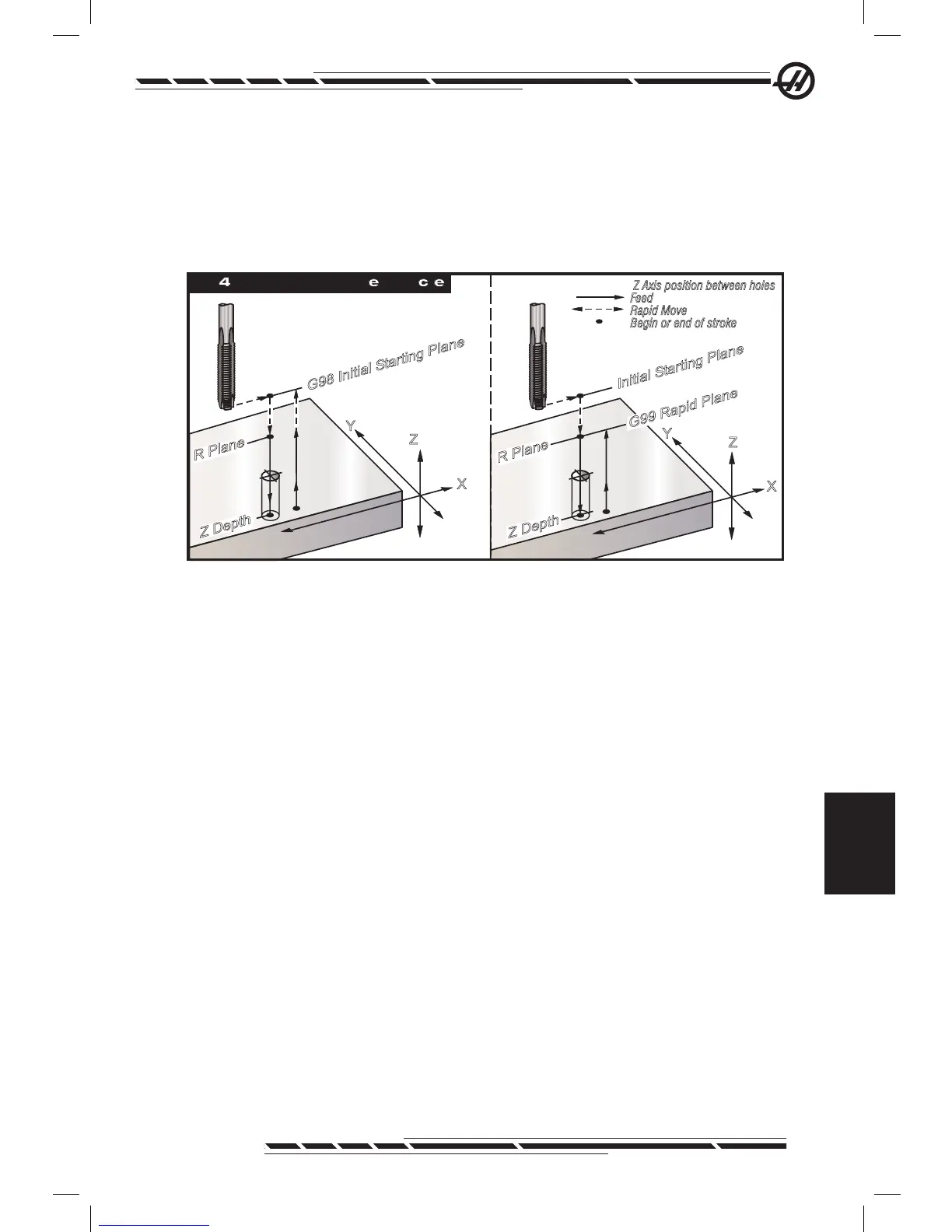

G74 Tapping Canned Cycle
G98/G99
Z Axis position between holes
Feed
Rapid Move
Begin or end of stroke
Z Depth
G76 Fine Boring Canned Cycle (Group 09)
F Feedrate in inches (or mm) per minute
I Shift value along the X-axis before retracting, if Q is not specied
J Shift value along the Y-axis before retracting, if Q is not specied
L Number of holes to bore if G91 (Incremental Mode) is used
P The dwell time at the bottom of the hole
Q The shift value, always incremental
R Position of the R plane (position above the part)
X X-axis location of hole
Y Y-axis location of hole
Z Position of the Z-axis at the bottom of hole
