Haas 96-8000 - G83 Normal Peck Drilling Canned Cycle (Group 09)

169
96-8000 Rev AC
May 2010
G & M Codes
Settings
.
Starting Plane
G99 Rapid Plane
X
Z
Y
X
Z
Y
G98 Initial Starting Plane
R Plane
Z Plane
R Plane
Z Plane

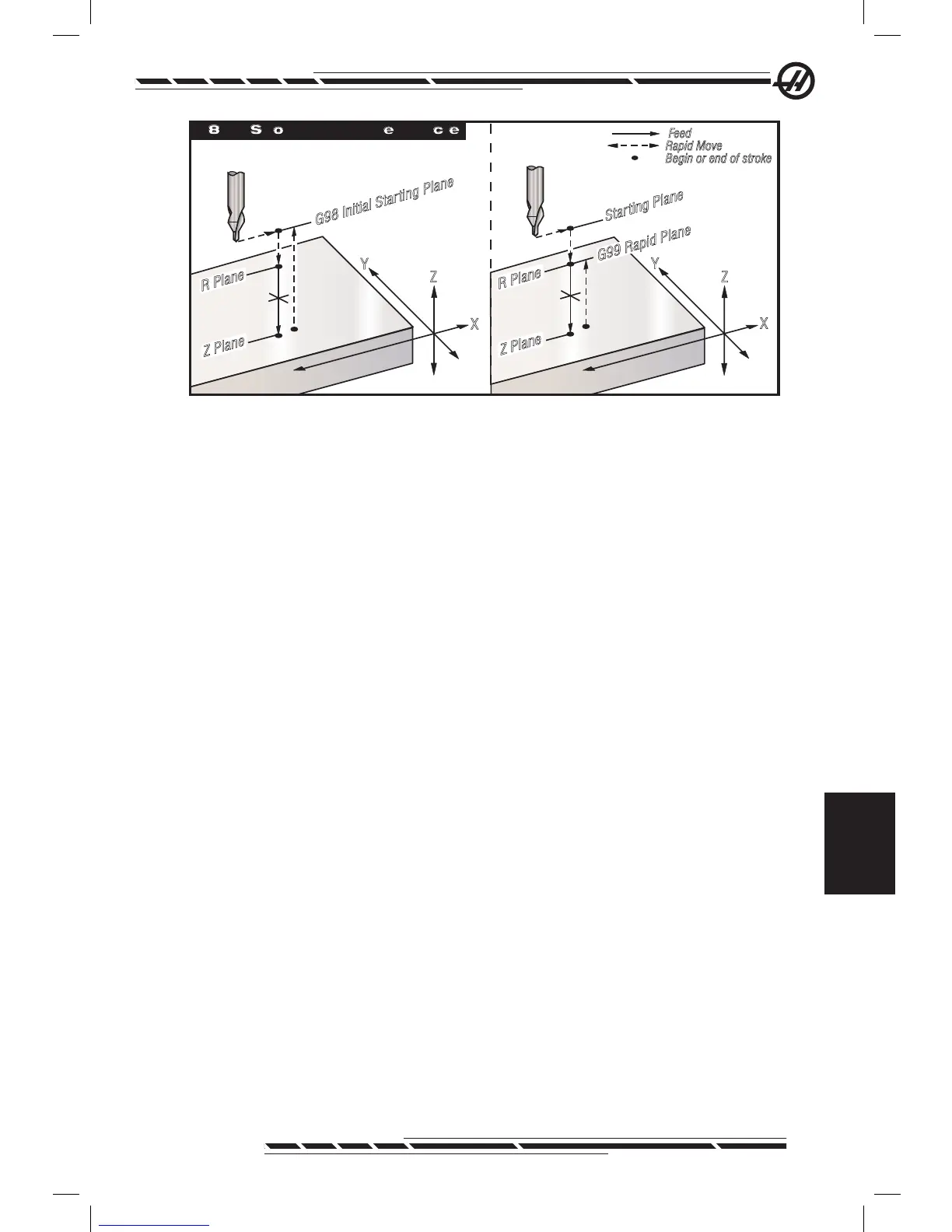

G82 Spot Drill Canned Cycle
Feed
Rapid Move
Begin or end of stroke
G82 Spot Drilling Example
G83 Normal Peck Drilling Canned Cycle (Group 09)
F Feedrate in inches (or mm) per minute
I Size of rst cutting depth
J Amount to reduce cutting depth each pass
K Minimum depth of cut
L Number of holes if G91 (Incremental Mode) is used
P Pause at end of last peck, in seconds (Dwell)
Q Cut depth, always incremental
R Position of the R plane (position above the part)
X X-axis location of hole
Y Y-axis location of hole
Z Position of the Z-axis at the bottom of hole
If I, J, and K are specied, the rst pass will cut in by the amount of I, each
succeeding cut will be reduced by amount J, and the minimum cutting depth is
K. Do not use a Q value when programming with I,J,K.
If P is specied, the tool will pause at the bottom of the hole for that amount of
time. The following example will peck several times and dwell for 1.5 seconds:
G83 Z-0.62 F15. R0.1 Q0.175 P1.5
The same dwell time will apply to all subsequent blocks that do not specify a
dwell time.
