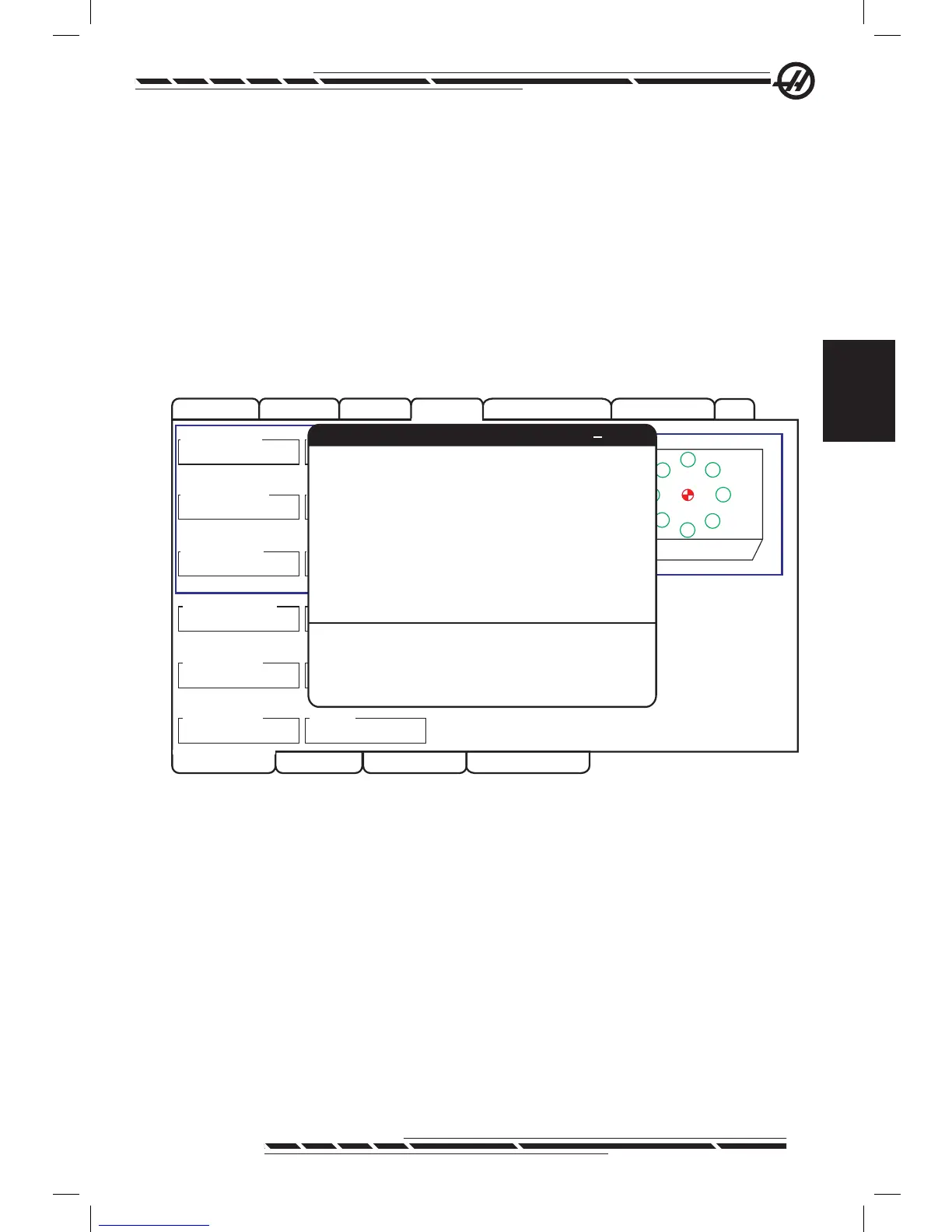

Menu Option 1: Select / Create Program
Select this menu option to choose an existing program in memory or to create
a new program into which the G-code will be inserted.
1. To create a new program, input the letter ‘O’ followed by the desired program
number and press the WRITE key. The new program is created, selected, and
displayed. Press the WRITE key once more to insert the IPS G-code into the
new program.
2. To select an existing program, enter an existing program number using the
O format (Onnnnn), then press the WRITE key to select and open the program.
To choose from a list of existing programs, press the WRITE key without input.
Use the cursor arrow keys to choose a program and press WRITE to open it.
.
MANUAL
SETUP FACE
DRILL POCKET MILLING ENGRAVING VQC
CENTER DRILL
CENTER DEPTH
CENTER PECK
DRILL TOOL
DRILL DEPTH
DRILL PECK
TAP TOOL
TAP DEPTH
0 00
0.0000 in 0.0000 in 0.0000 in
0.0000 in 0.0000 in
WRK ZERO OFST R PLANE NUM OF HOLES
X CENTER PT
Y CENTER PT
54
DIAMETER
ANGLE
CENTER HOLE
0.0000 in 0.0000 in
0.0000 in
0.000 deg
0.2000 in
00
0
BOLT CIRCLE BOLT LINE SINGLE HOLE
Press <CYCLE START>
to run in MDI or <F4>
to record output to a
program.
Select/Create Program F4 CANCEL
O00000 (PROGRAM A)
O00001 (PROGRAM B)
O00002 (PROGRAM C)
O00003 (PROGRAM D)
O00004 (PROGRAM E)
O00005 (PROGRAM F)
O00006 (PROGRAM G)
*
Chooseaprogram by using the cursor
keys and press WRITE to select.
or
Enter a‘O’ followed byanew program
number and press WRITE to create.
MULTIPLE HOLES
3. Using the arrow keys, move the cursor to the desired insertion point for the
new code. Press WRITE to insert the code.
