Haas 96-8000 - G80 Canned Cycle Cancel (Group 09); G81 Drill Canned Cycle (Group 09)

167
96-8000 Rev AC
May 2010
G & M Codes
Settings
.
X
Z
Y
Starting Plane
R Plane
Shift

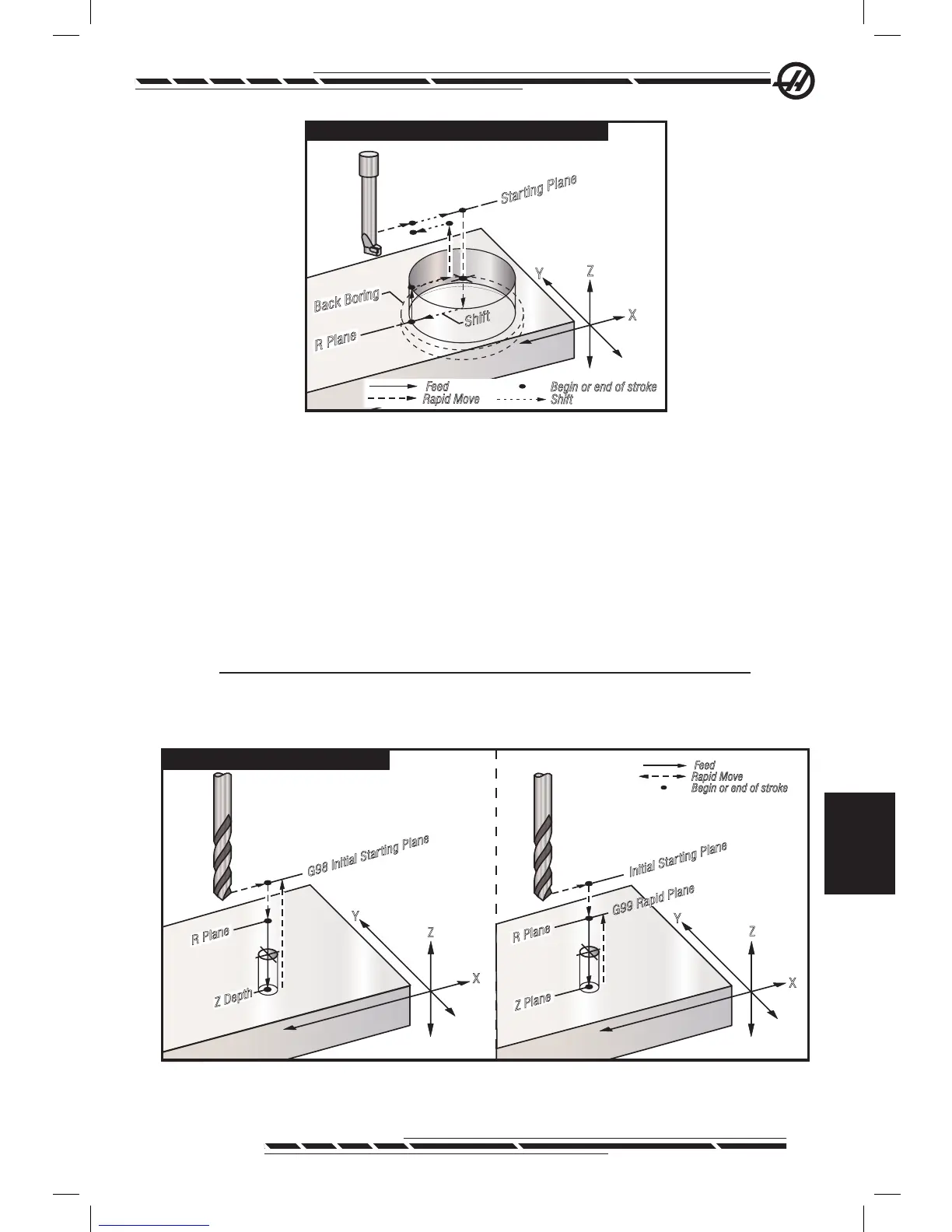

G77 Back Boring Canned Cycle
Back Boring
Begin or end of stroke
Shift
Feed
Rapid Move
G80 Canned Cycle Cancel (Group 09)
This G code deactivates all canned cycles until a new one is selected. Note
that use of G00 or G01 will also cancel a canned cycle.
G81 Drill Canned Cycle (Group 09)
F Feedrate in inches (or mm) per minute
L Number of holes to drill if G91 (Incremental Mode) is used
R Position of the R plane (position above the part)
X X-axis motion command
Y Y-axis motion command
Z Position of the Z-axis at the bottom of hole
Note: The X and Y addresses, in most cases, are the location of the rst
hole to be drilled.
.
Initial Starting Plane
G99 Rapid Plane
X
Z
Y
X
Z
Y
G98 Initial Starting Plane
R Plane
R Plane
Z Plane
G81 Drill Canned Cycle
Feed
Rapid Move
Beginor end of stroke
Z Depth
