Press POWER UP/RESTART
Wait for Zero Return
Any Large or Heavy
tool designations
displayed?
Remove Large and/or
Heavy tool
designations by
scrolling to each “L”
and/or “H” and
pressing SPACE,
WRITE. Remove all
by pressing 3,
ORIGIN.
Press ORIGIN.
Will you need any
Large or Heavy
tools?
Organize your tools
according to your CNC
program. Determine
numerical positions of
Large tools.
Do you have
additional largetools
to designate?
InsertTool into the
spindle.
Jog Z-Axisto set tool offset.
Press .TOOL OFFSET MESUR
Press .NEXT TOOL
Do you have additonal
toolstoload?

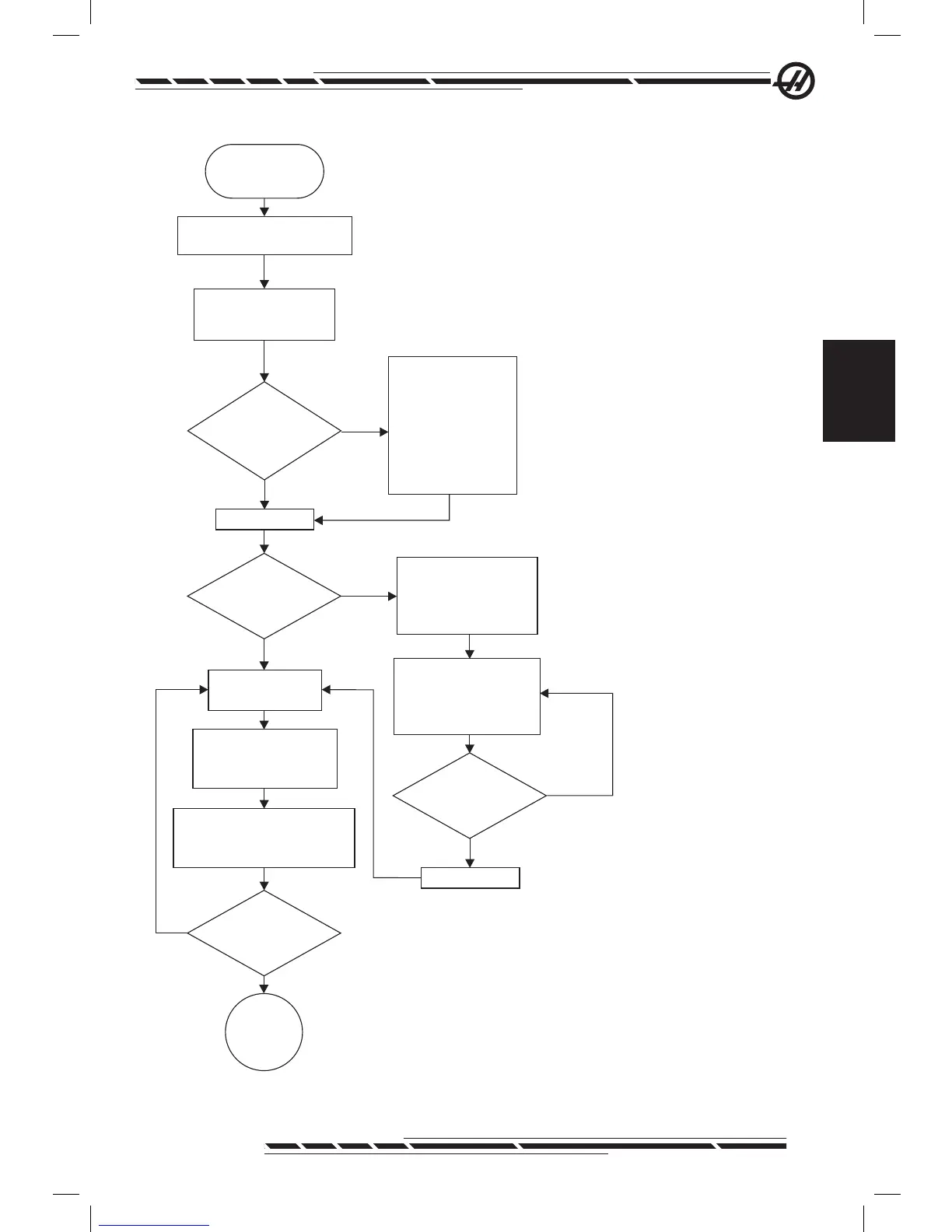

Loading the
Side Mount Tool
Changer
Press CURNT COMDS,
PAGE UP to view
theTool Pocket Table.
Y
N
Y
N
Scroll to the tool
pocket that will hold
a large tool and press
L, WRITE. (Or press H
foraheavy tool )
Y
N
Y
N
END
Press ORIGIN
(from PowerOn)
A “Large Tool” hasadiameter
greater than 3"
for 40-taper mills, or greater
than 4" for
50-taper mills.
High-speed Toolchangers: A
“Heavy Tool” isatool weighing
4ormore pounds.
Do not enter a lower case
“h” or lower case “l”(L) in
the tool table.
Press HAND JOG,
OFSET to display
Tool OffsetTable.
