Machine overview
5 Machine overview
5.1 Overview control elements
Cus
tomer specific machine configuration
Please note, that depending on the model of the machine, not
all described functions are present, or additional functions and
buttons are available (e.g. machines with special functions).
1
23 4
5
6
7
8
9
10

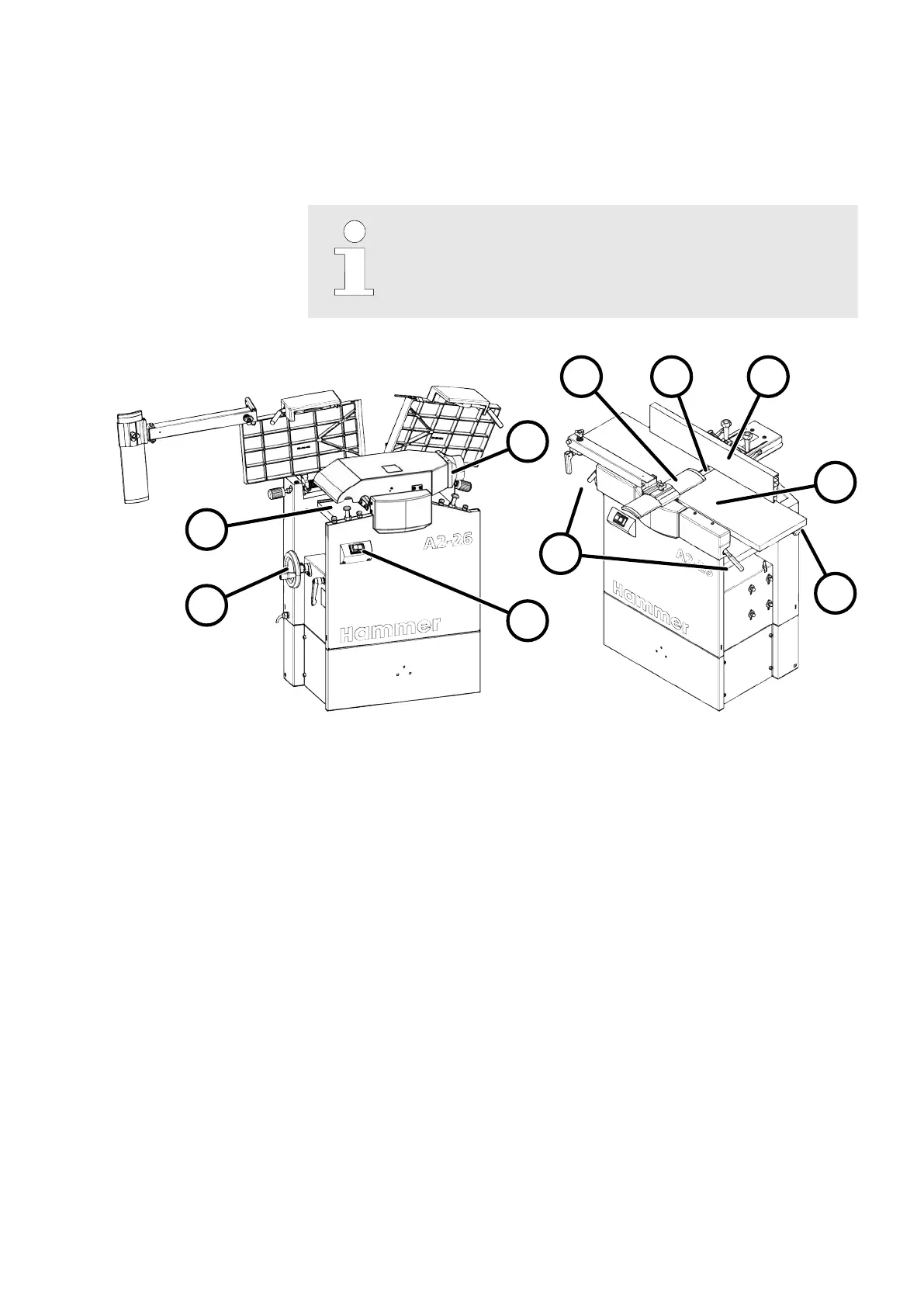

Fig. 2: Overview A2-26
1 Planer
2 Cutterblock
3 Cutterblock cover
4 Planer fence
5 Adjust the depth of cut (planer)
6 Switch
7 Extraction connection Ø
8 Thicknesser
9 Adjust the depth of cut (Thickness planer)
10 Planing table clamping levers
