7.2 Set-up and level
U
npack the machine and prepare for assembly

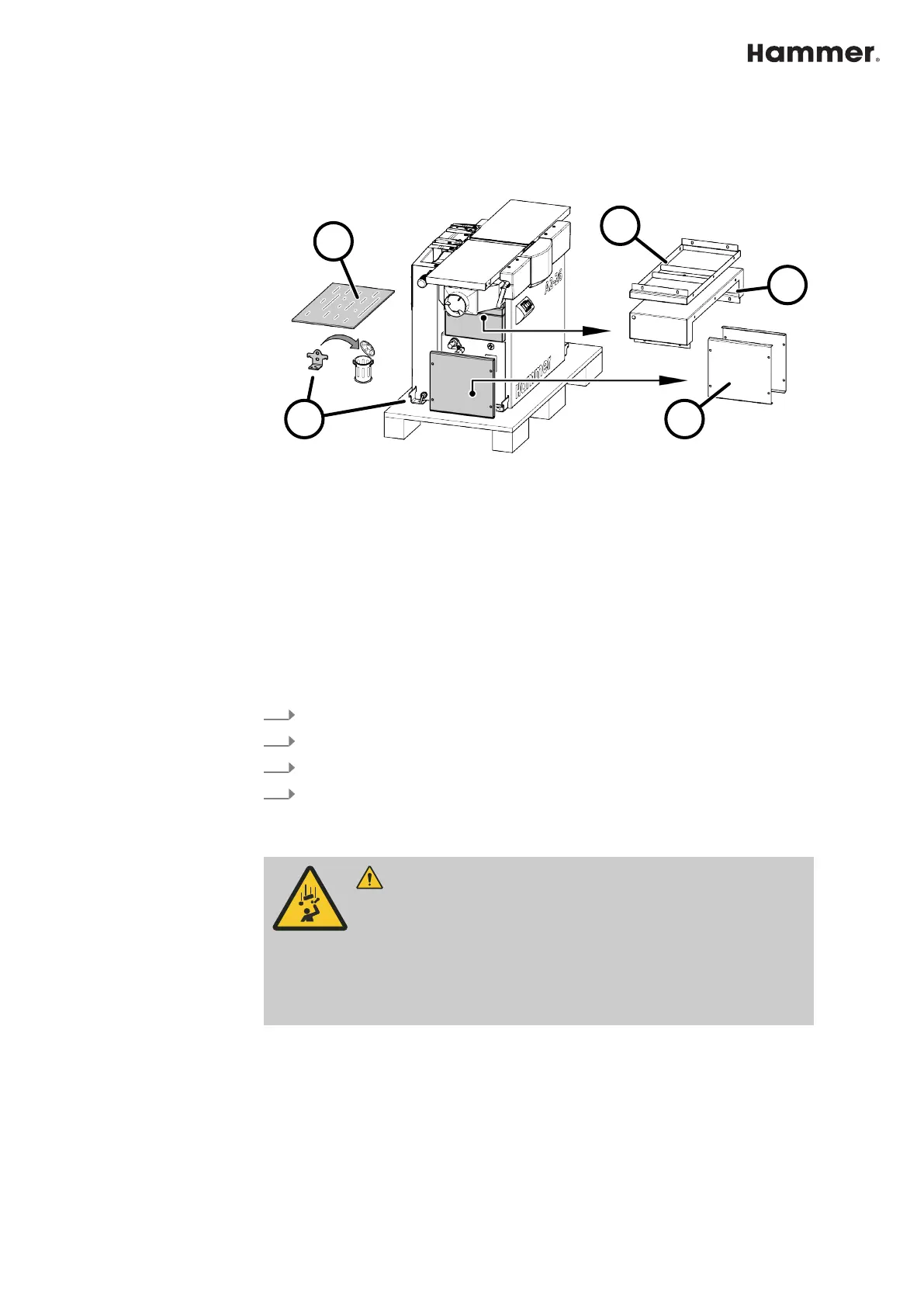

Fig. 19: Packaging - Machine base
1 Machine base - Front section
2 Machine base - Rear wall
3 Machine base - Side section
4 Wooden panel (packing material)
5 Pallet bracket
Unpack the machine base
Personnel:
● Trained machine operator
F
or transport reasons the machine base is delivered dismantled.
1.
Remove the front section and rear wall from the machine.
2.
Remove the wooden panel from inside the machine.
3.
Remove the side section from the pallet.
4.
Remove all pallet brackets.
P
lace the machine on its side and mount the base
WARNING
Tipping over of the machine
S
erious injury due to the high machine weight
− Consider the machine weight and centre of gravity of the
mac
hine.
− Ensure that several additional assistants are on hand.
