Hammer A2-26 - Planer Unit Controls; Safety Devices; Safety Limit Switches

28
Machine overview
5.4.2 Planer controls
1
2
3
4
5
6
7
8

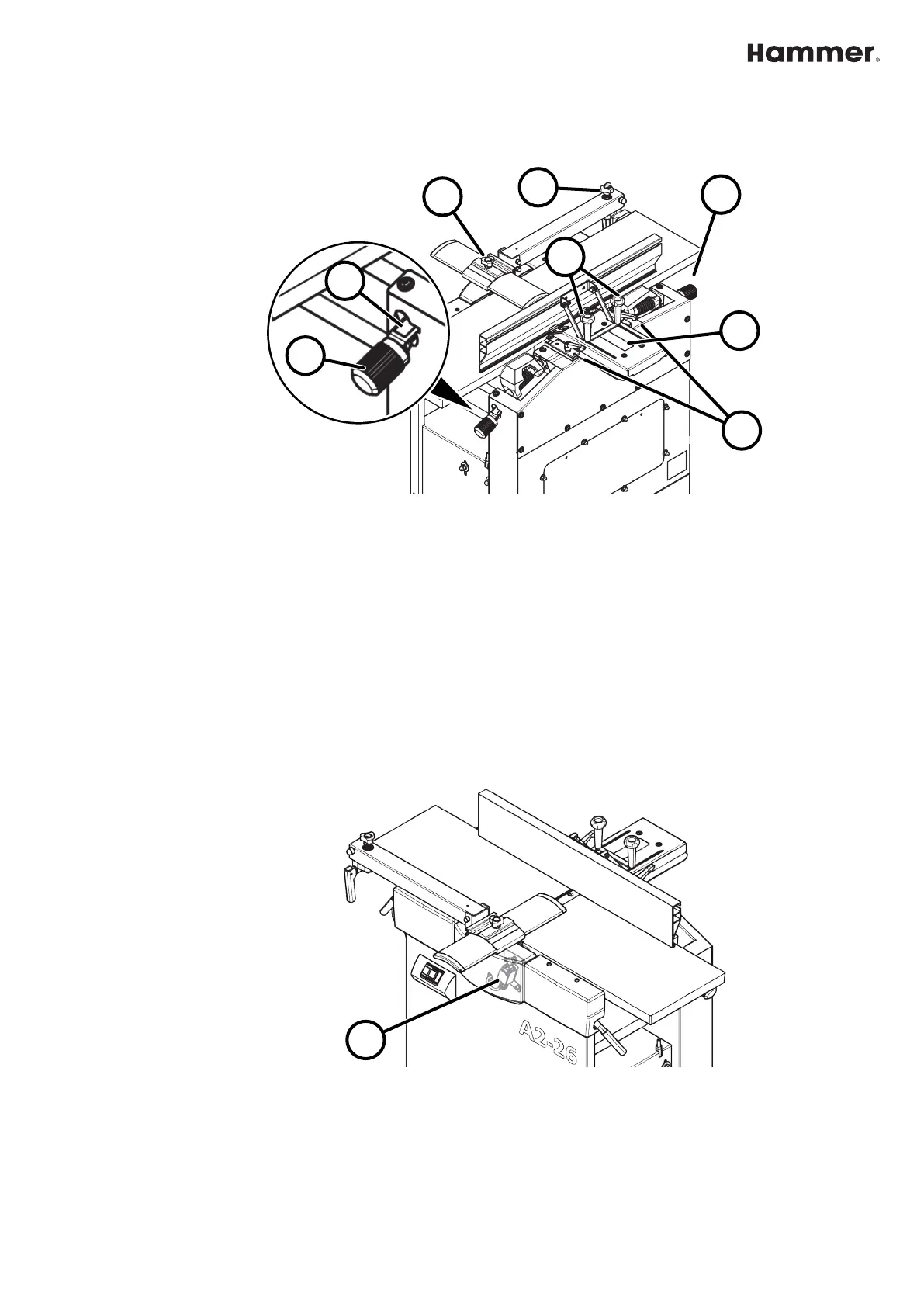

Fig. 7: Planer controls
1 Set the depth of cut (infeed planing table)
2 Depth of cut scale
3 Set the height (outfeed planer table)
4 Clamping the protective guard
5 Setting of the bridge guard
6 Clamping horizontal adjustment planer fence
7 Clamping angle adjustment planer fence
8 Scale angle adjustment planer fence
5.5 Safety devices
5.5.1 Safety limit switches
1
Fig. 8: Safety limit switches
1 Safety limit switches
