Machine overview
5.3 Information on the machine data plate
1
2
3
4
5
6

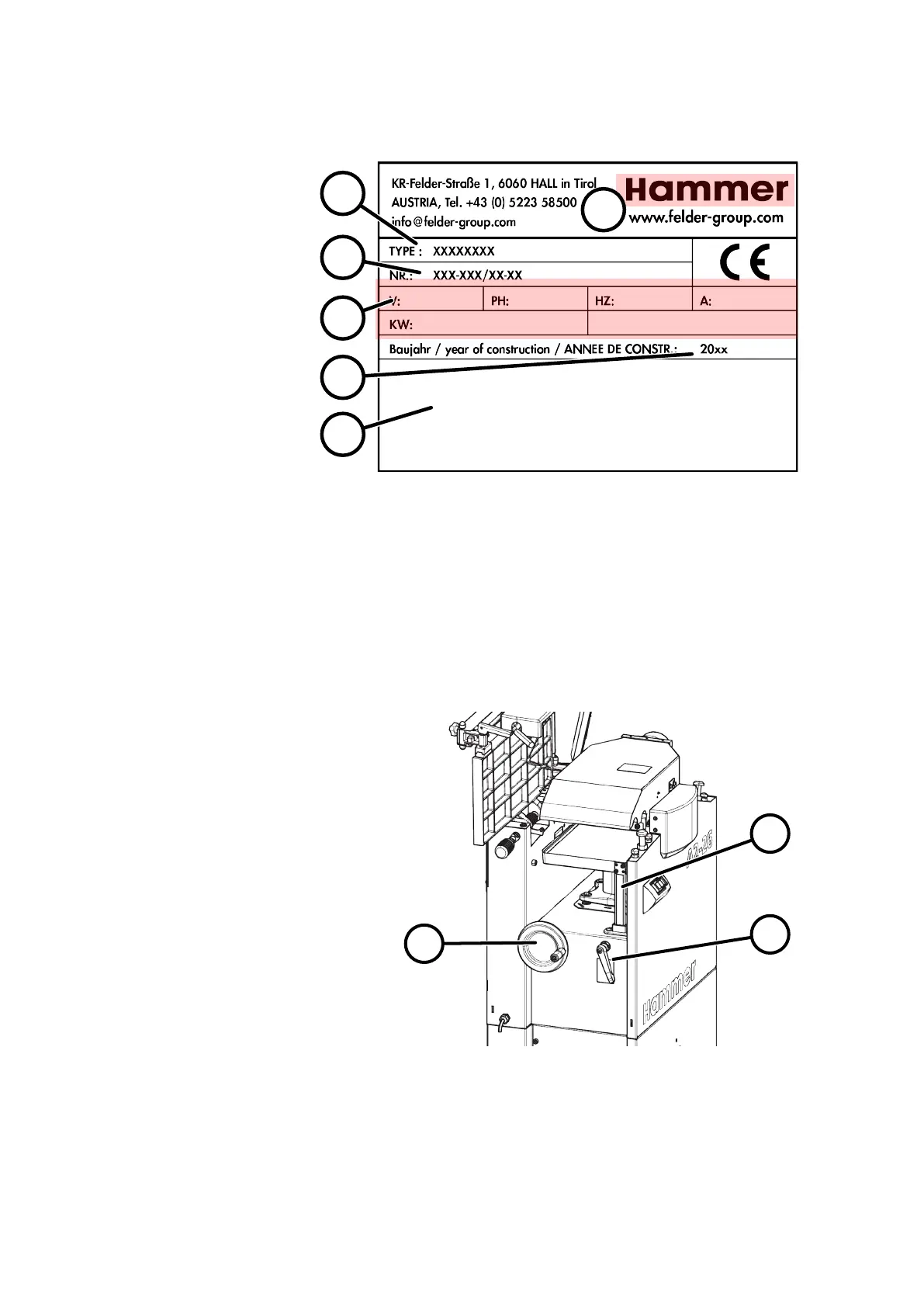

Fig. 5: Information on the machine data plate
1 Manufacturer information
2 Model type
3 Machine number
4 Electrical connection
5 Year of build
6 Additional information (optional)
5.4 Operation and display elements
5.4.1 Thicknessing unit controls
1
3
2
Fig. 6: Thicknesser controls
1 Height adjustment handwheel (thickness planing height)
2 Scale - Thicknessing passage information
3 Clamping lever - Clamping the thicknesser
