Adjustments and tool changes
Open the planer tables and prepare the machine to operate
1.
Release the planer table clamping levers and pull out.
2.
Tilt the infeed planer table up.
3.
Tilt the outfeed planer table up.
4.
Ensure that the safety latch slots correctly into place.
5.
Swing the extraction hood upwards and lock in place.
6.
Connect the extraction hood to the extraction supports.
8.2 Changing over from the thicknesser to the planer

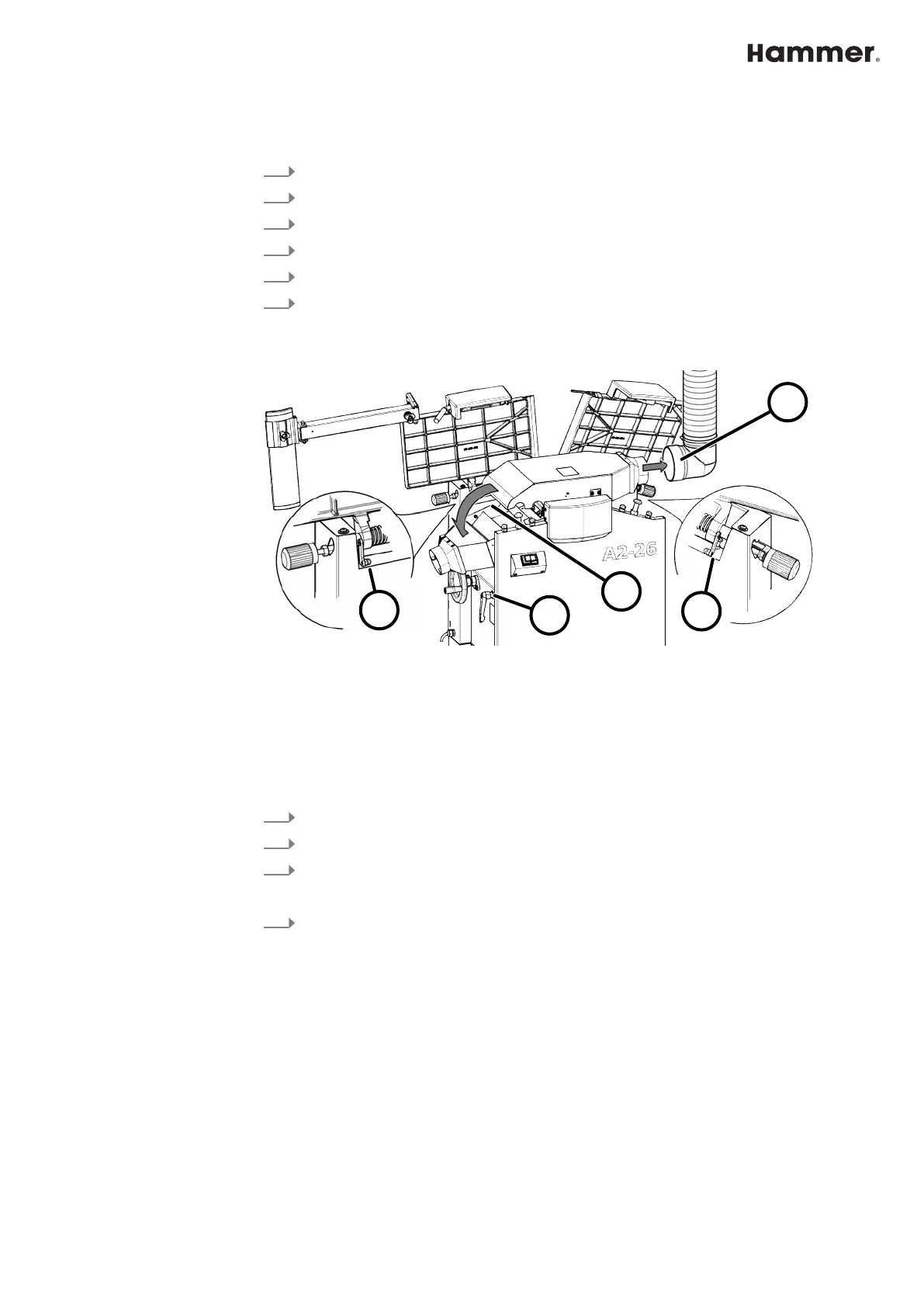

Fig. 37: Preparing to changeover
1 Extraction pipe
2 Thicknesser opening height mind. 150 mm
3 Swing the extraction hood downwards
4 Safety catch (outfeed side)
5 Safety catch (infeed side)
Preparing the machine to changeover
1.
Switch off the machine and secure it against being switched on again.
2.
Remove the extraction hose from the extraction hood.
3.
Adjust the thicknessing height.
🡆
The thicknesser must be at least 150 mm below the cutterblock.
4.
Swing the extraction hood downwards.
