Connection to the extractor

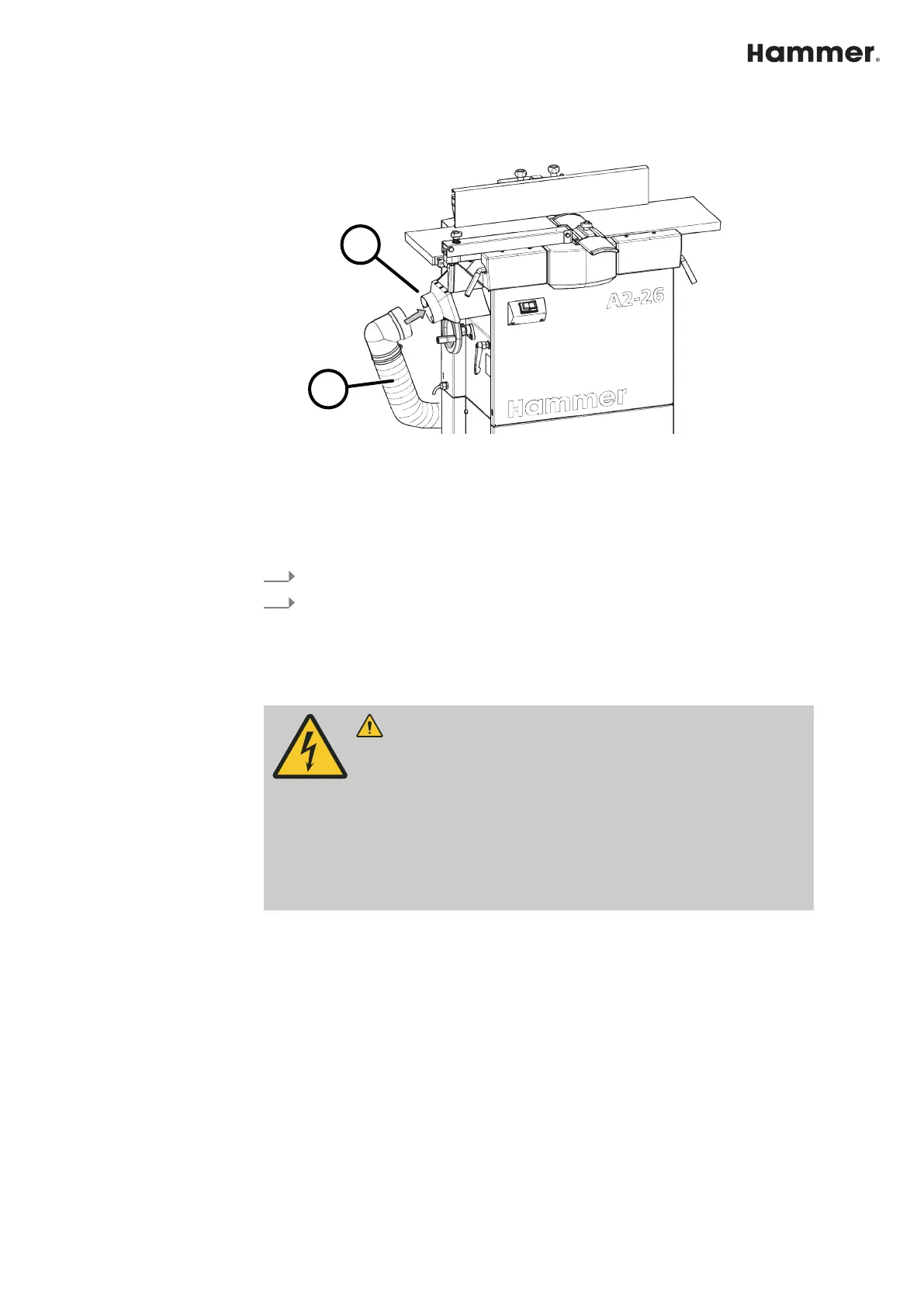

Fig. 29: Extraction connection
1 Ø 100 mm extraction connection
2 Extraction pipe
Material:
● Hose clamp
1.
Connect the extraction hose to the extraction connection.
2.
Fix the hose clamps in place.
7.5 Connect electrics
7.5.1 Connect the machine plug
WARNING
Electric current
S
erious injury or death
− Changes to the connection cable can only be carried out by a
t
rained electrician.
− Checking the loop impedance and the suitability of the over-
c
urrent protective device must take place at the location where
the machine is to be commissioned by a qualified electrician.
The machine is equipped with a plug with an earth contact. If required the
c
ustomer must fit the machine cable with a suitable plug that is in accordance
with country specific regulations.
