Hammer A2-26 - Mount the Handwheel

44
Setup and installation
Front cutterblock cover (bridge guard)
2
3
45
1

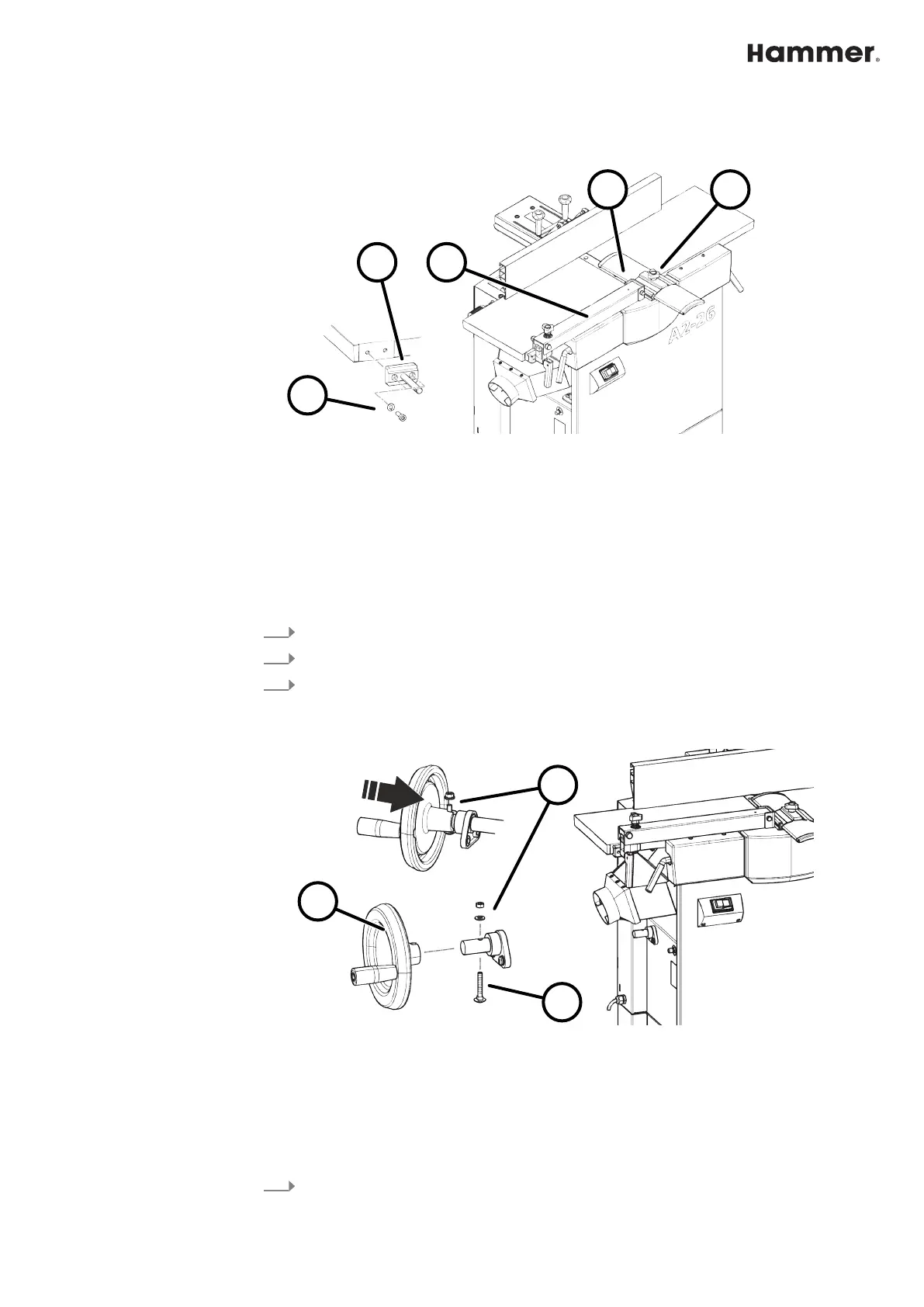

Fig. 27: Planer guard protective guard
1 Mounting jaw (bridge guard arm)
2 Hex screws (2x)
3 Bridge guard arm
4 Clamping screw
5 Protective guard
Tool:
● Hex key
1.
Loosen the clamping screw.
2.
Slide the protective guard into the arm of the bridge guard.
3.
Tighten the clamping screw.
7.3.4 Mount the handwheel
1
2
3
Fig. 28: Mount the thicknesser handwheel
1 Handwheel
2 Carriage bolt
3 Nut and washer
Tool:
● Spanner 10 mm
1.
Insert the carriage bolt through the arbour.
