Hammer A2-26 - Positioning Machine on Side; Positioning Machine on Rear Side

39
A2-26
Setup and installation
1
4 3
2

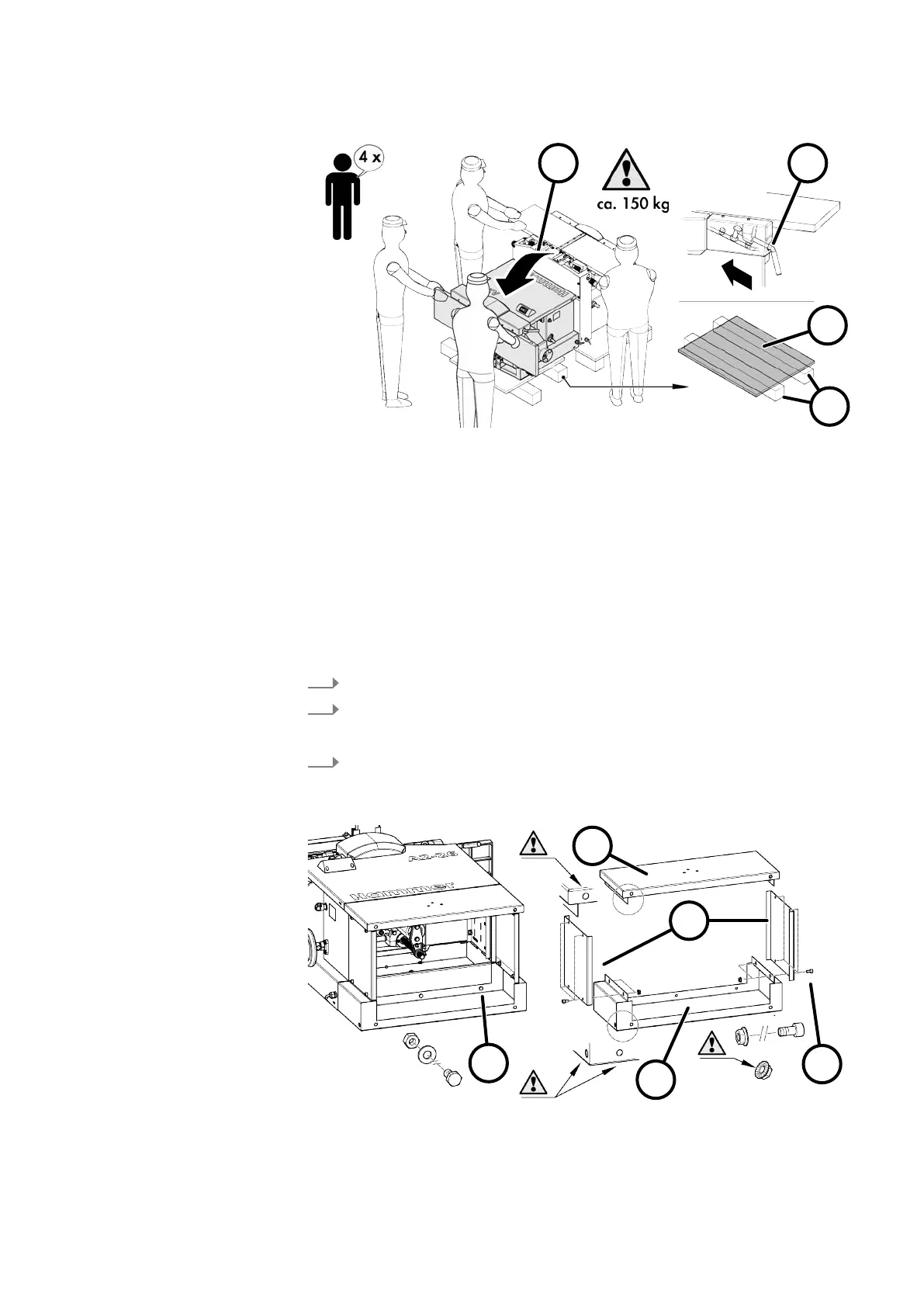

Fig. 20: Place the machine on its side
1 Panel: approx. 600 x 800 x 20 mm
2 Beam approx. 90 x 90 x 1000 mm
3 Lock the planing tables
4 Place the machine on its side
Place the machine on its rear side
P
ersonnel:
● Trained machine operator
● 3 additional assistants
T
he machine base is to be screwed on to the underside of the machine chassis.
1.
Place two beams and a panel or a second pallet behind the machine.
2.
Push the clamping lever inwards and lock.
🡆
Both planing tables must be shut completely.
3.
Several people should be used to carefully place the machine on its back.
Scr
ew the machine base together and assemble
4
1
2
3
5
Fig. 21: Mount the base
1 Machine base - Front section
2 Machine base - Rear wall
3 Machine base - Side section
