Owner’s Manual
12
EXTRA VOICES
ALLOCATE UPPER, LOWER button
Toggles the Extra Voices to the UPPER, and LOWER parts.
e light illuminates when button is pressed (on). (P. 58)
SOLO button
Mutes the organ section and only the Extra Voices sound. (P. 58)
VOLUME knob
Adjusts the volume of the Extra Voices. (P. 31)
VOICE GROUP buttons
Selects the voice group of the Extra Voices. (P. 31)
ORGAN SECTION EFFECTS
DRAWBARS OVERDRIVE AMOUNT knob
Adjusts the amount of the Overdrive eff ect. (P. 52)
DRAWBARS OVERDRIVE ON button
Switches the overdrive eff ect ON/OFF. (P. 52)
DRAWBARS EFFECT AMOUNT knob
Adjusts the amount of the Multi-Eff ects. (P. 54)
DRAWBARS EFFECT ON button
Switches the Multi-Eff ects ON/OFF. (P. 54)
EFFECTS OF THE EXTRA VOICE SECTION
EXTRA VOICE EFFECT AMOUNT knob
Adjusts the depth of the Multi-Eff ects. (P. 59)
EXTRA VOICE EFFECT ON button
Switches the Multi-Eff ects ON/OFF. (P. 59)
EFFECTS FOR ALL PARTS
REVERB DEPTH knob
Adjusts the depth of the Reverb. (P. 54)
REVERB ON button
Switches the Reverb ON/OFF. (P. 54)
MASTER EQUALIZER
BASS knob
Adjusts the boost/cut the of bass frequencies. (P. 27)
MID FREQUENCY knob
Sets the frequency the MID GAIN knob will adjust. (P. 27)
MID GAIN knob
Adjusts the boost/cut of the mid range frequency as set by the
MID Frequency knob. (P. 27)
TREBLE knob
Adjusts the boost/cut of the treble frequencies. (P. 27)
UPPER
PEDAL
LOWER
NUMBER NAME
PAT CH
ENTER
VA L U E

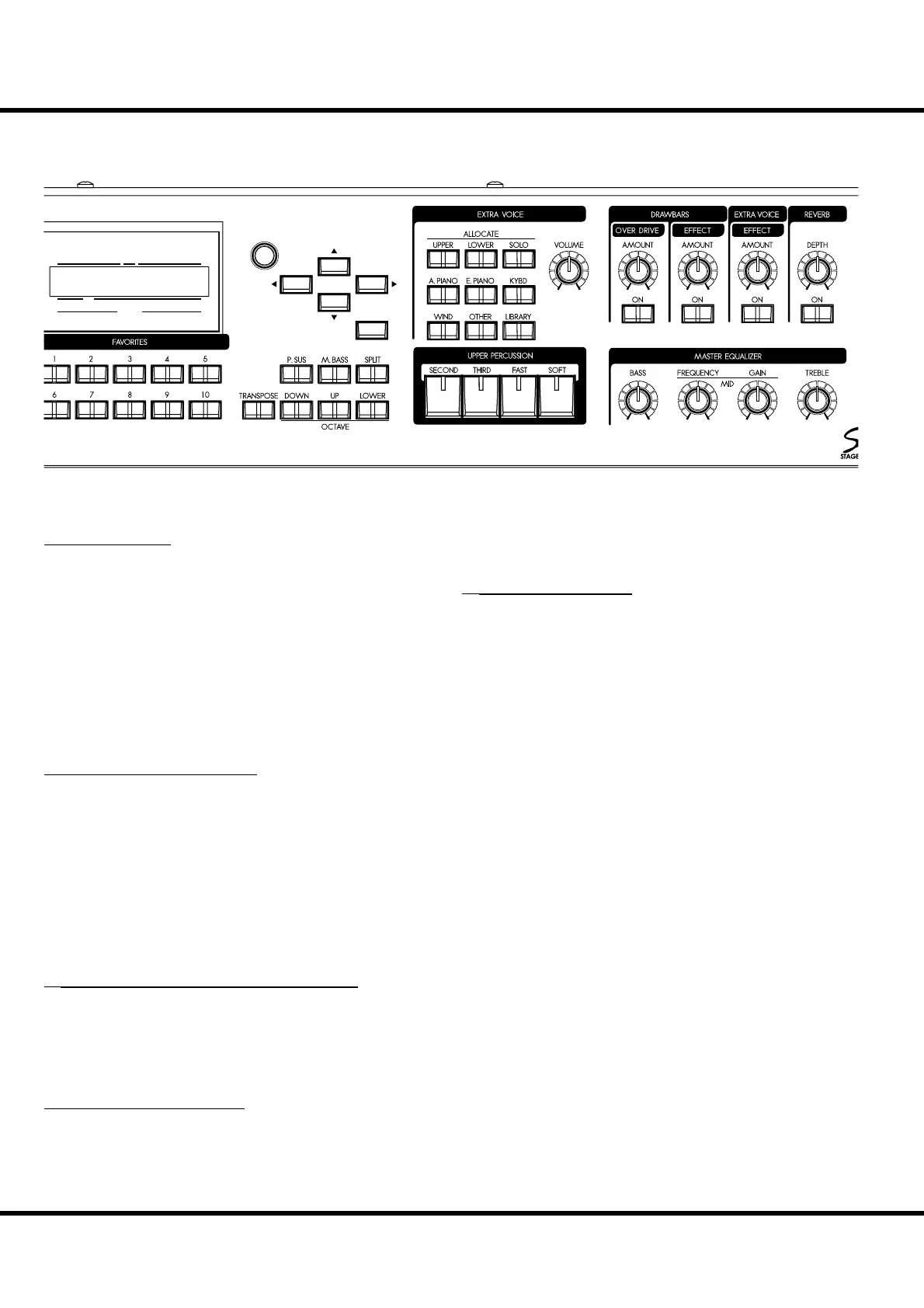

NAMES AND FUNCTIONS - continued
To Next Page
