Setting the Parameters
MANUAL BASS:
Triggers the Manual Bass (P. 33) note of Pedal part.
BASS 1C - BASS 3C:
Triggers the speci ed note of Pedal part.
PROCHORD CLOSE, OPEN:
Triggers the Prochord note for the Organ section with speci ed voicing (close or open).
❸ FOOT SWITCH - RING MODE (G)
is sets the Ring side function, when the foot switch connected to the foot switch jack
is of the TRS specifi cations.
NOTE: The “Prochord” function cannot be chosen via the “ring”.
EXPRESSION
❹ EXPRESSION - SOURCE (G)
Sets the source of expression control.
PED (NORM):
For the (Optional) Hammond-Suzuki EXP-50 pedal etc.
PED (REV):
For using a Korg XVP-10 type of Expression Pedal etc.
MIDI: For using expression information received at the UPPER keyboard channel.
BOTH (NORM):
BOTH (REV):
Expression value will controlled by both pedal and MIDI in.
❺ EXPRESSION - MONITOR
Displays the current value of expression. In case of no sound or no change when the
expression pedal is pressed, this monitor shows whether the expression value changes or
not, so you may discover the cause of trouble (if any). is can also be an indicator when
playing from low volume to fade in.
❻ EXPRESSION - MINIMUM LEVEL (G)
Sets the volume at minimum expression.
e setting range is OFF, -40dB to 0dB. At OFF the instrument is silent when Pedal is
at Minimum (all the way back). e other value points represent the lowest volume that
will be present at the Pedal’s minimum position.
❼ EXPRESSION - LIMIT LOW FREQUENCY (G)
❽ EXPRESSION - LIMIT HIGH FREQUENCY (G)
Sets the amount of Low or High Frequency to remain, when the expression is set at
minimum.
e setting range is OFF, -40dB to 0dB. At OFF the sound totally disappears, but at
other value points the set volume is kept, even if the expression is at minimum.
❾ EXPRESSION - GAIN (S)
Sets the gain (range) of the connected expression pedal.
Depending on the type of the connected expression pedals, the expression value may not
change. In such case, adjust this parameter to obtain the desired response.
❿ EXPRESSION - CURVE (S)
Adjusts change of expression value corresponding to the angle of the depressed expres-
sion pedal.
e setting range is 1 to 3. Refer each curve to the bottom right illustration or try playing
live to discern which curve is correct for you.
NOTE: The parameters indicated by (S) are system parameters. They are recorded when set, and
are common in each Patch.
GLIDE
⓫ GLIDE - RANGE (P)
Sets the bend range of pitch by semi-tone. Setting range is -24 to +12.
⓬ GLIDE - TIME (P)
Sets the time from the start of glide to reach the pitch set at (11). e setting range is
0.1 to 5.0 seconds.

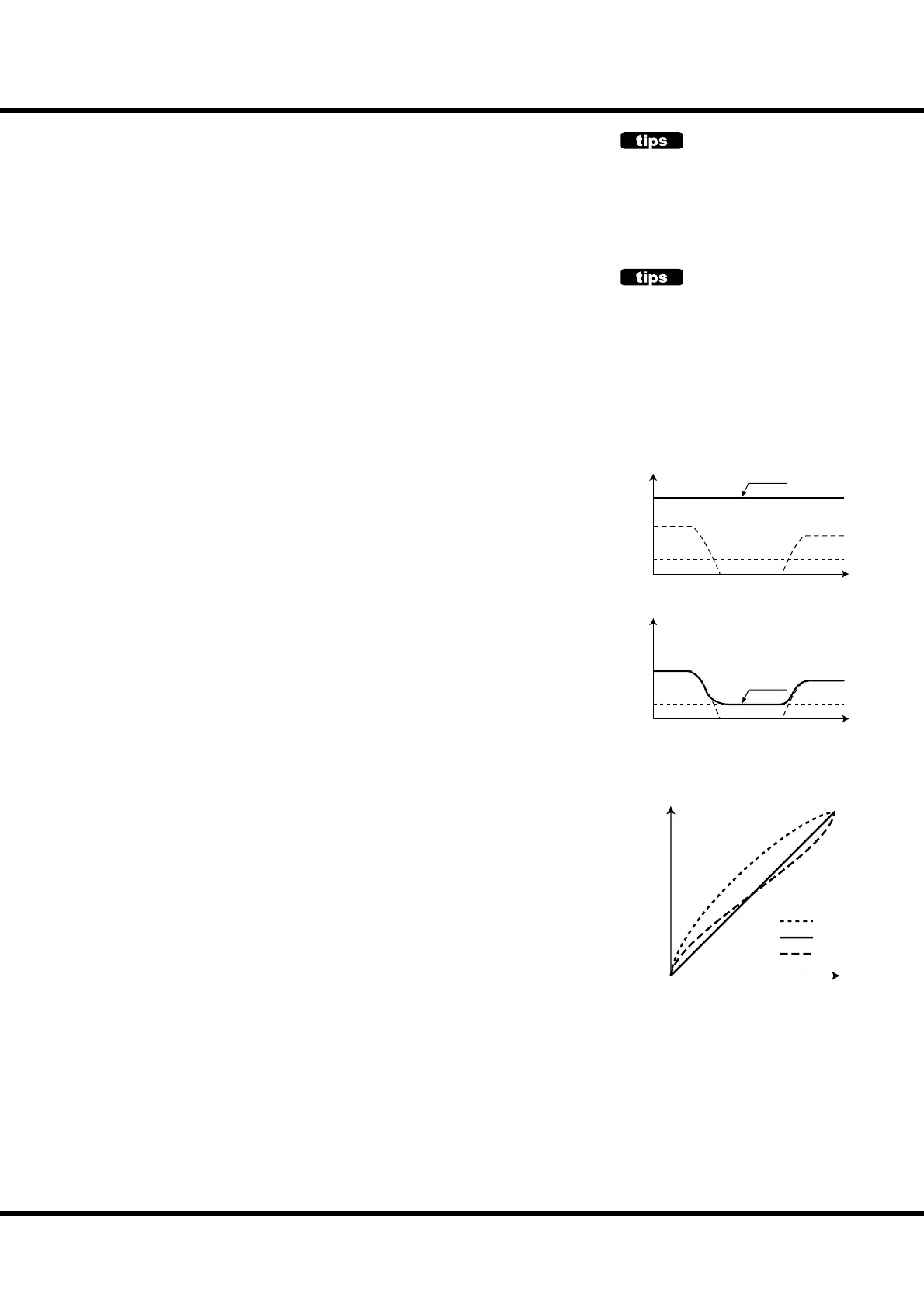

EXPRESSION LIMIT
One of the human ear’s characteristics is that
when the volume falls, the sound of the high
or low frequencies becomes di cult to hear.
Using expression limit, you can hear the re-
vised frequency response.
Vintage B-3 preamps age in di erent ways-one
symptom is the organ’s timbre may change
with Expression pedal travel. This is a desirable
characteristic for some.
Frequency
Loudness
LF
Limit
HF
Limit
Min. Level
Expression = Maximum
120Hz 4kHz
Output
Frequency
Loudness
LF
Limit
HF
Limit
Min. Level
120Hz 4kHz
Expression = Minimum
Output
Degree
Value
127
0
1
2
3
NOTE: The parameter with (P) indicated is
a patch parameter, and is recorded
to each patch. (G) indicates “global
parameter”, which is recorded upon
being set, and is common with each
patch.
PROCHORD
“PROCHORD” function which adds complex
harmonic voicing to single notes played on
the UPPER manual based on chord structures
played on the LOWER manual.
The Prochord by the foot switch a ects only
for the Organ section.
