EXPAND THE KEYBOARD
is instrument can be upgraded to dual keyboards by connecting an external MIDI
keyboard and pedalboard.
SK1: DUAL KEYBOARD + PEDALBOARD

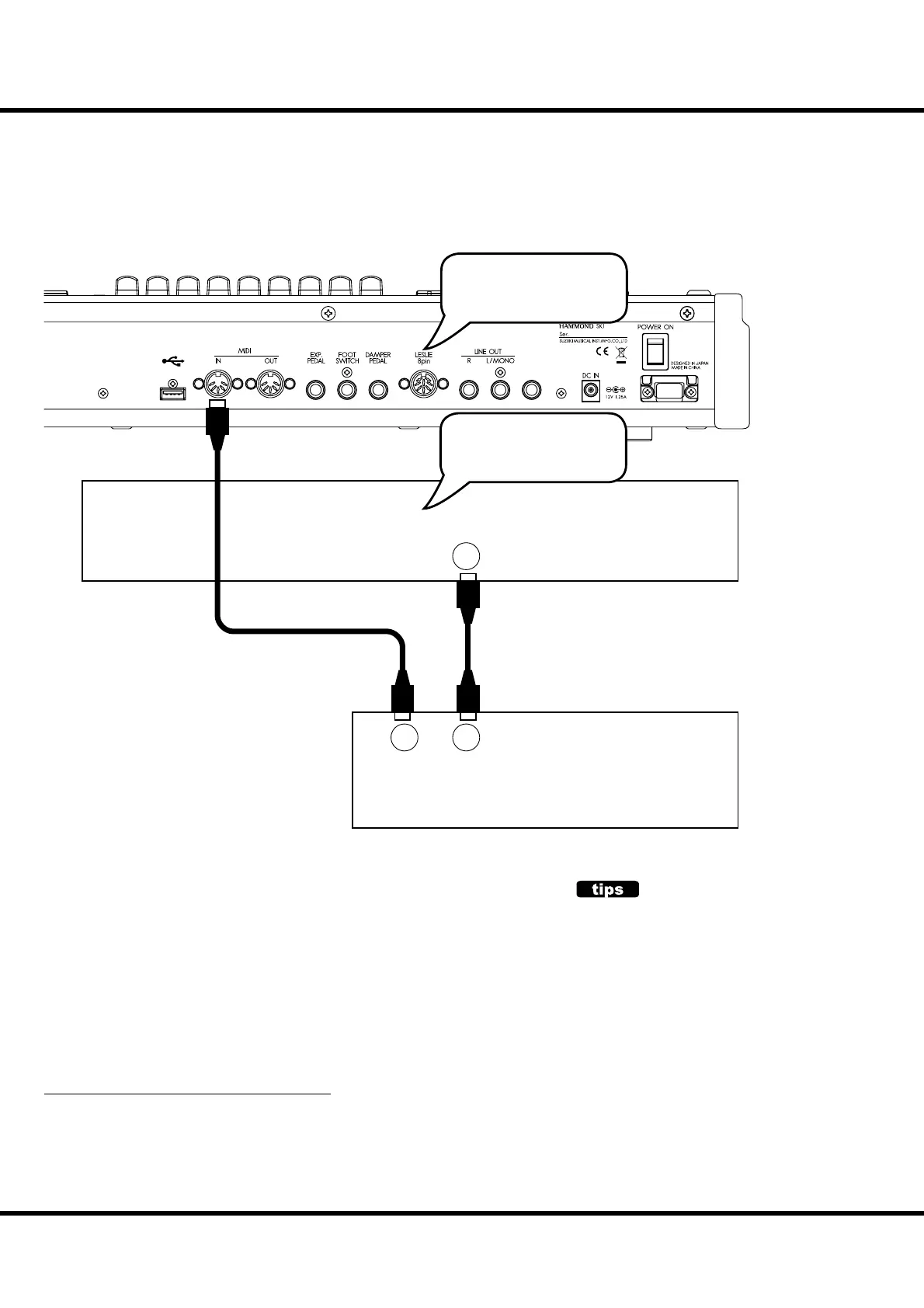

1. Connect as illustrated above. ere is only one MIDI IN jack onboard this in-
strument, so a MIDI keyboard with a merge function or a MIDI Merge-box is
necessary for realizing a dual keyboard confi guration.
NOTE: This illustration shows only the keyboard expansion See P. 16 for the basic hook up of
the power source, audio, etc.
2. Turn the SK1 power ON. en recall the MIDI template “3KBD”. (P. 114)
3. Set the Send channel of the added MIDI keyboard at “2” (“1” on SK1-73, -88)
and that of the MIDI pedalboard at “3”.
Refer to the operation manual of the added MIDI keyboard and pedalboard, as
required.
RECOMMENDABLE MIDI KEYBOARD
e following HAMMOND MIDI pedal keyboards (compliant with the SK1) are
available from our sales dealers:
MIDI pedalboard XPK-100 (13 keys)
MIDI pedalboard XPK-200 (20 keys)
Both models have a MIDI merge function.
PHONES
USB MEMORY
MIDI Keyboard
MIDI Pedalboard
MIDI OUT
INOUT
(MERGE)
HOW MIDI KEYBOARD WORKS?
On the SK1, connected MIDI keyboard works as
“LOWER” keyboard when the MIDI template re-
called at “3KBD” or “Two Manual”.
On the SK1-73 or -88, connected MIDI keyboard
works as “UPPER” keyboard when the MIDI tem-
plate recalled at “3KBD” or “Two Manual”.
It works as UPPER: SK1
It works as LOWER: SK1-73, -88
It works as LOWER: SK1
It works as UPPER: SK1-73, -88
