13
Introduction

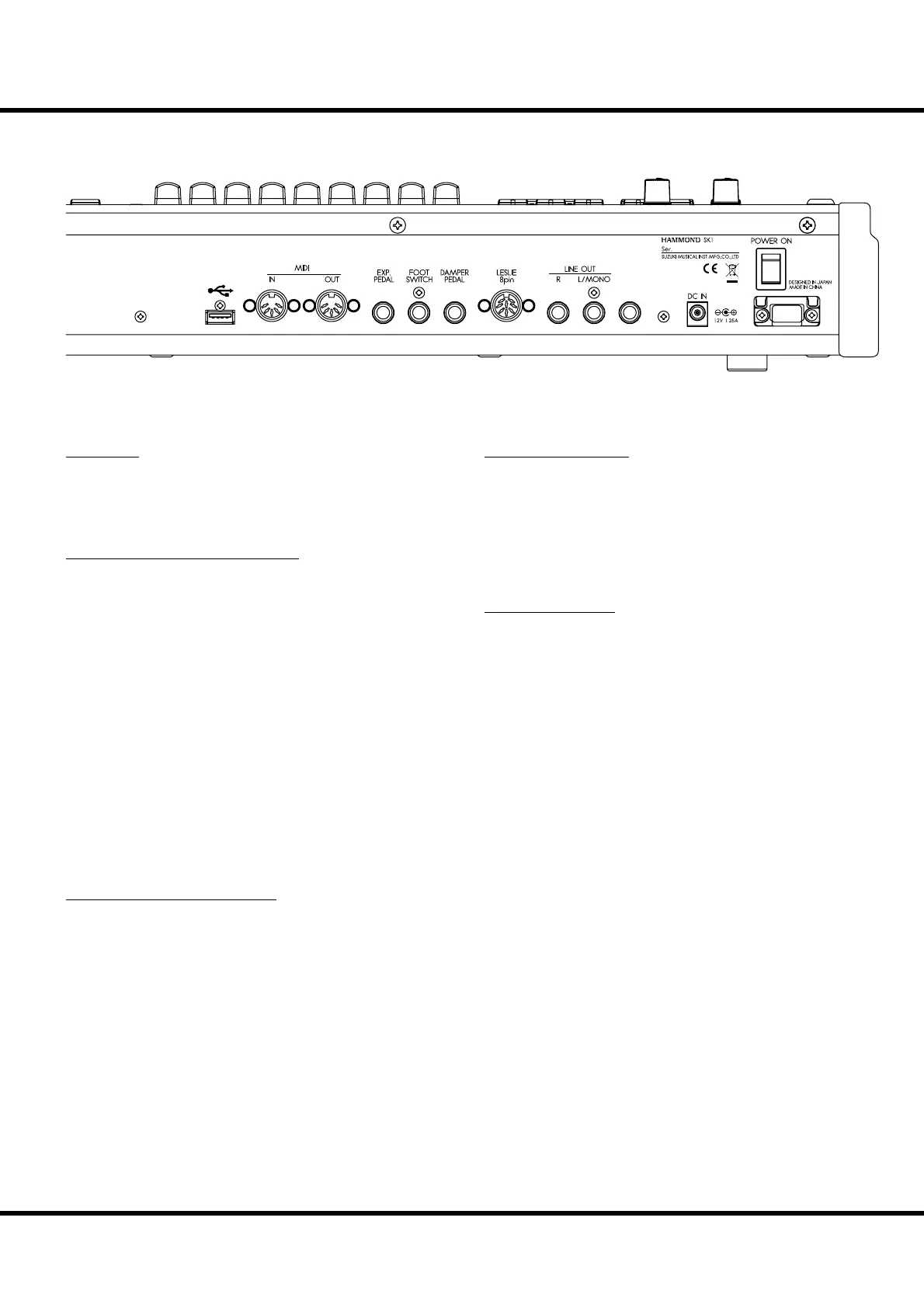

REAR PANEL
POWER
DC IN jack
Connect the AC adaptor AD3-1250 to this jack.
POWER switch
SOUND OUTPUT TERMINALS
PHONES jack
Connect stereo headphones here.
Connecting Headphones does NOT mute the Line or Leslie
Outputs.
LINE OUT L/MONO jack
LINE OUT R jack
ese are the sound output jacks.
If the connected mixer or monitor speaker is stereophonic, con-
nect both L and R. If monaural, connect only to the L/MONO
terminal (P. 16) and set the Audio Mode at “MONO” (P. 104).
LESLIE 8 PIN jack
Connect a Leslie Speaker equipped with an eight-pin jack here.
When the connection of a physical Leslie Speaker is detected,
the on-board digital Leslie Simulator to the PHONES jack
(53) and the LINE OUT jacks (54, 55) are disabled. (P. 17)
CONTROLLER TERMINALS
DAMPER PEDAL jack
Connect an optional Damper Pedal (optional FS-9H etc.) here.
If you press the damper pedal, holding down the keyboard, the
sound is sustained even after you release your fi nger from the
key. (P. 78)
FOOT SWITCH jack
Connect the Foot Switch (optional FS-9H etc.) here.
Consult (P. 78) to learn the diff erent functions available for the
foot switch.
EXP. PEDAL jack
Connect the Expression Pedal (optional EXP-50 etc.) here.
Controls volume while you are playing. (P. 78)
MIDI TERMINALS
MIDI OUT jack
MIDI information is output from this jack. (P. 106)
MIDI IN jack
MIDI received here. From the factory, this terminal is set to
receive channels in accordance with using a lower manual and
pedalboard. (P. 106)
USB TERMINAL
USB FLASH DRIVE jack
is jack is for connecting a USB Flash drive. (P. 118)
PHONES
USB
FLASH DRIVE
