Hammond XK-2 User Manual

1
Introduction
Hammond XK-2 Quick Features Guide
120V~
LESLIE 11-PIN
AC IN
120V~
PHONE
POWER
ON
BASS
L/MONO LR
INPUT
TREBLE
OUTPUT
TONE CONTROL
USE HAMMOND
EXP-100 ONLY EXP.
PEDAL
REV = < NORM
FOOT SW.
IN
MIDI
THRU OUT
R
INTRODUCTION

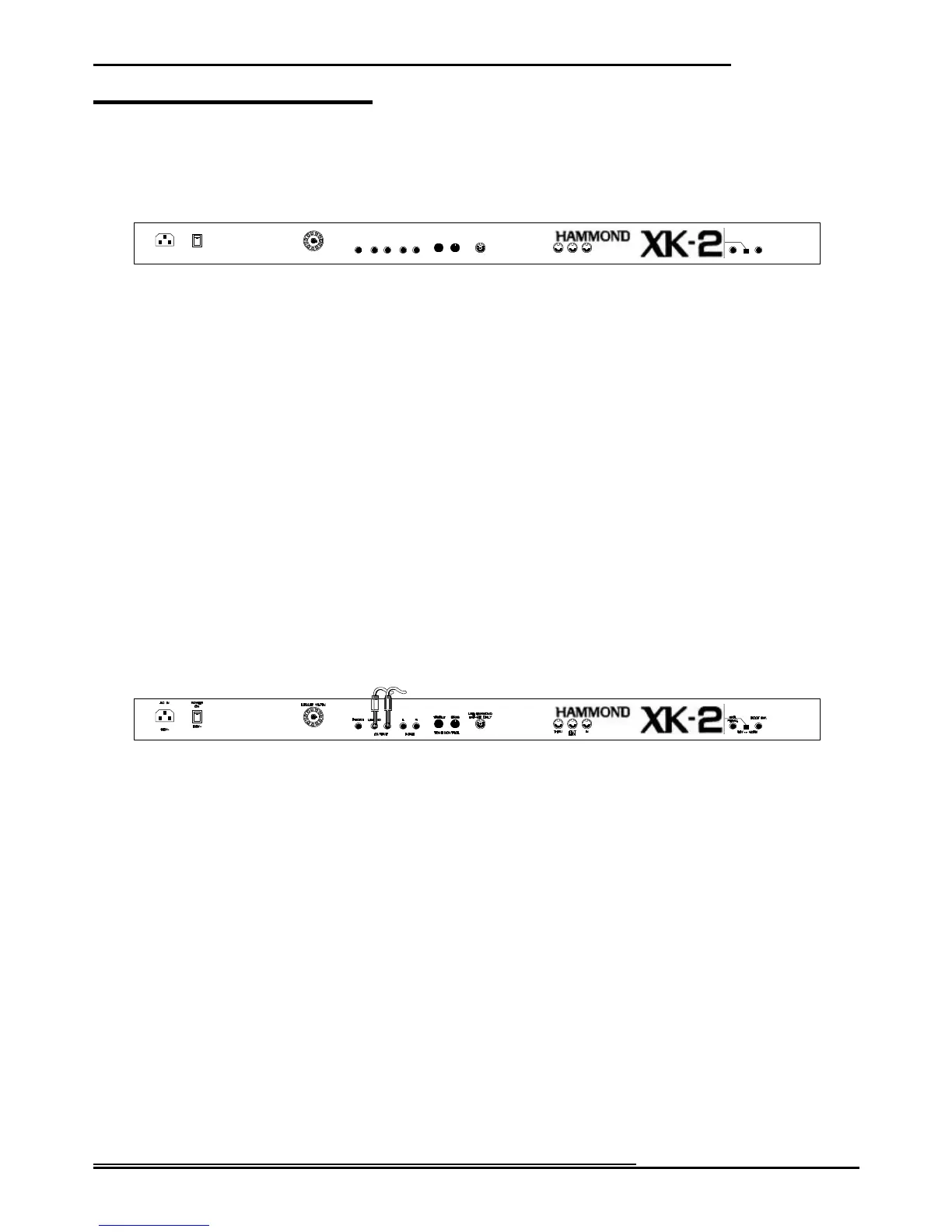

Basic Hook-Up
All connections are found on the Accessory Panel on the back of the XK-2.
Ë A.C. Power
Your Hammond XK-2 is shipped from the factory set for 120 V.A.C. power. To connect the XK-2 to A.C. power:
1. Locate the A.C. Power Cord that came with your XK-2.
2. Plug the female end of the Power Cord into the receptacle on the XK-2 marked, “AC IN.”
3. Plug the other end of the Power Cord into an A.C. power outlet.
Ë Audio Connections
In order to hear the sounds produced by the XK-2, you will need to connect it to an amplifier or other external sound source.
You can either:
1. Connect the XK-2 to an amplifier, or;
2. Connect the XK-2 to a Leslie Speaker cabinet.
Connecting to an Amplifier
1. Use two audio cables with
1
/
4
" plugs on both ends of each cable.
2. Connect one end of each of the audio cables to the audio output connectors on the back of the XK-2.
NOTE: At this point it is assumed that you are using a keyboard or guitar amplifier that has
1
/
4
" phono plug inputs. We
assume this since this is the most common type of connector used on these types of amplifiers.
3. Connect the other ends of each cable to the female
1
/
4
" audio input connectors of your amplifier.
If your amplifier has only a single (1) female
1
/
4
" phono plug audio input, you can connect one end of one cable to
the L/MONO audio output connector on the XK-2, and the other end to the female
1
/
4
" audio input connector of
your amplifier.
