Introduction
Hammond XK-2 Quick Features Guide
To EXP-100 Expression Pedal
Ë Connecting the Hammond EXP-100 Expression Pedal
If you wish to use the Hammond EXP-100 Expression Pedal, a special DIN-type jack is provided on the Accessory Panel on

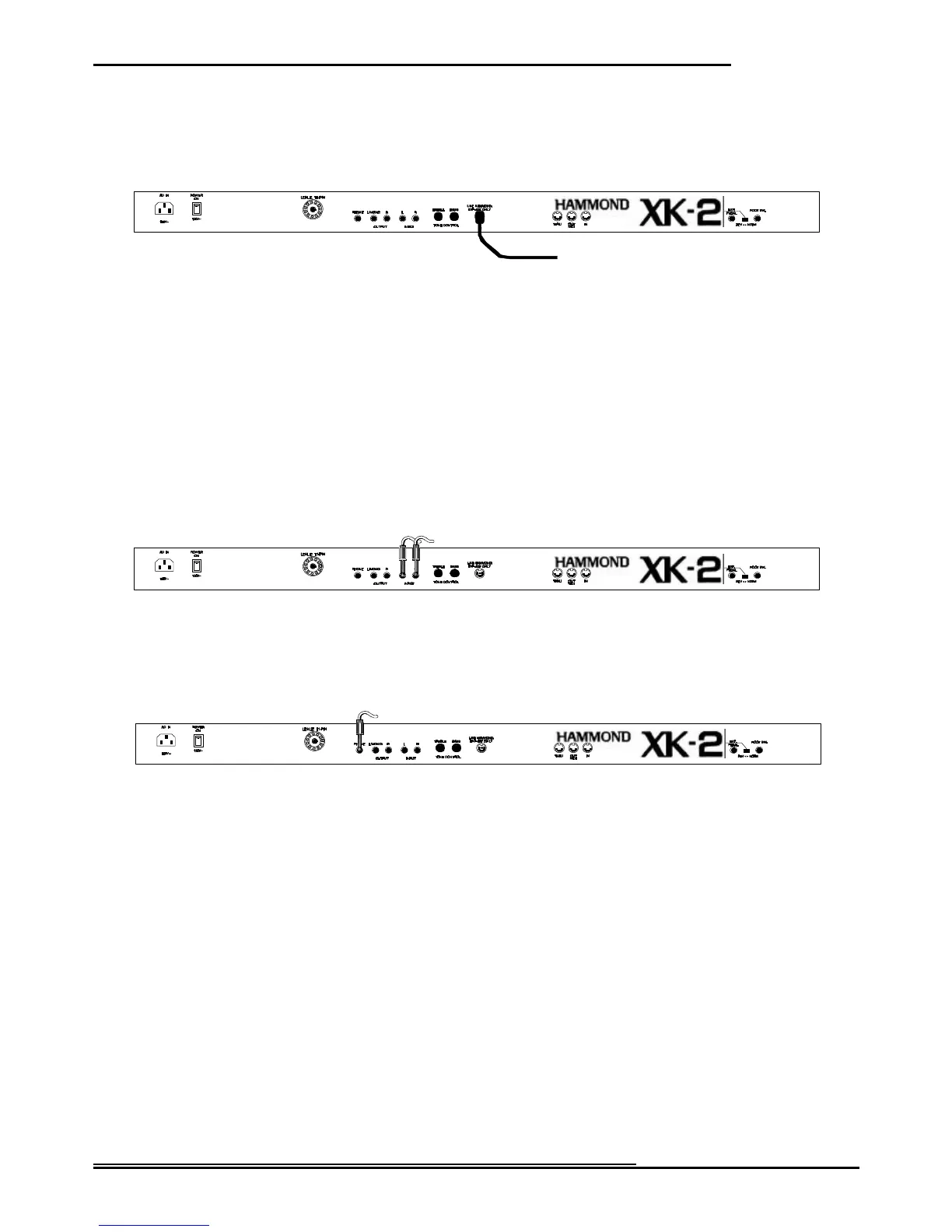

the back of the XK-2. Simply insert the plug from the EXP-100 into this jack as shown below.
NOTE: ONLY the EXP-100 plug should be inserted into this jack.
Ë Connecting an External Sound Source
You may connect an external sound source such as a Sound Module to the XK-2. In this way, both the XK-2 and the
external sound source can be heard through the same speaker system. If you wish to do this:
1. Locate two audio cables with
1
/
4
" plugs on both ends of each cable.
2. Connect one end of each of the audio cables to the audio output connectors on the external sound source.
3. Connect the other ends of the same audio cables to the jacks marked “INPUT” on the back of the XK-2.
Ë Connecting a Set of Headphones
A stereo headphone jack is provided so that you may play or practice in privacy.
To Next Page
