1. When the machine is stopped, press .
2. Select "SETTING" and select
(Frame
out).
3. Select .
4. Move the frame to the frame out position.
Setting is cancelled.
5. Press
.
The setting is fixed.
14-E

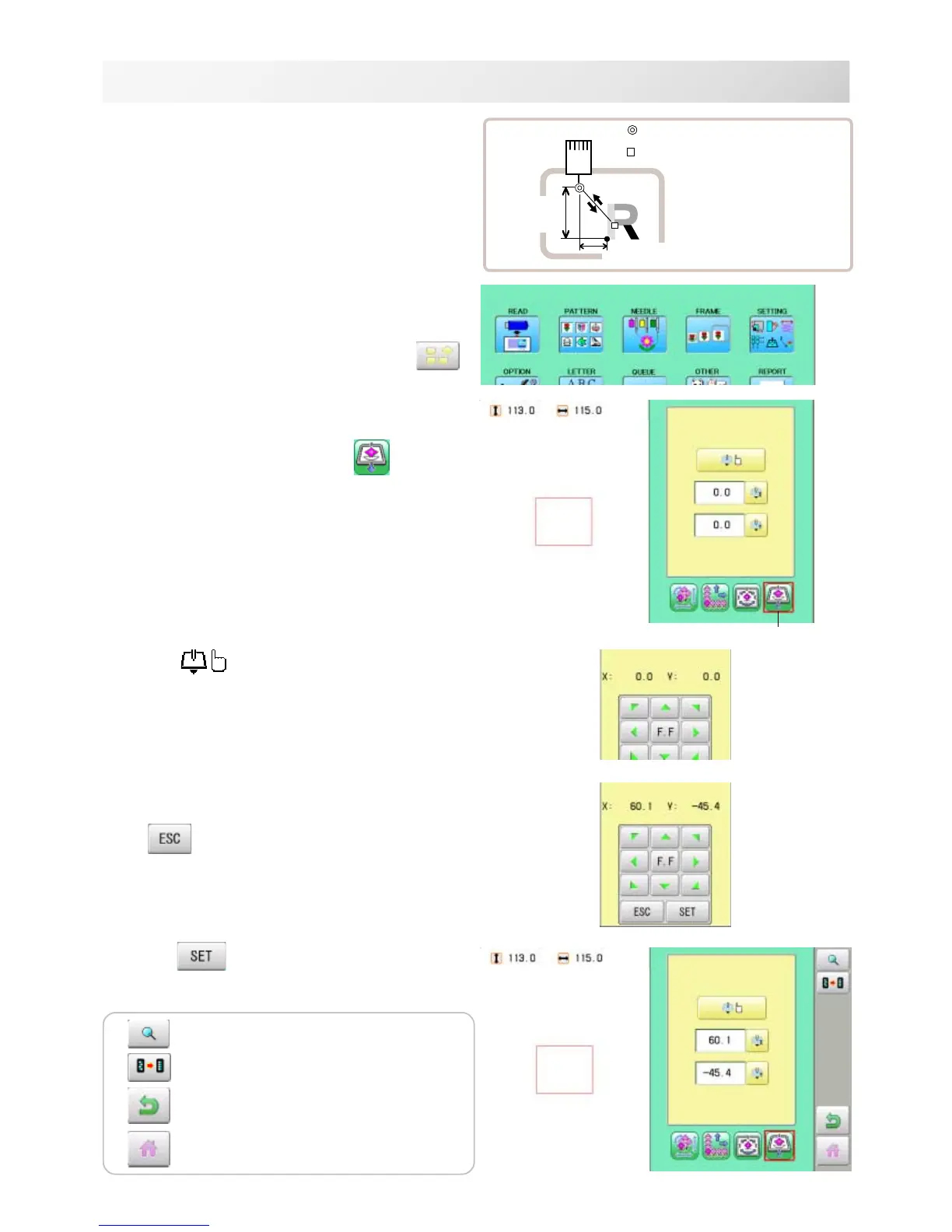

PATTERN SETTINGS
12_F NB01
Teaching input
Move the frame and the position will be saved
as the frame out.
: Frame out point
● : Original point (Start point of pattern)
: Last position of Color change number
Lengthwise
move
distance
1
5
Sidewise move
distance
Frame out
The pattern data may be shown.
Setting is returned to the default.
To return to Menu mode.
to return to Drive mode.
To Next Page
