User maintenance mode
User maintenance mode has 7 items as below.
Indicates point which sensors are active.

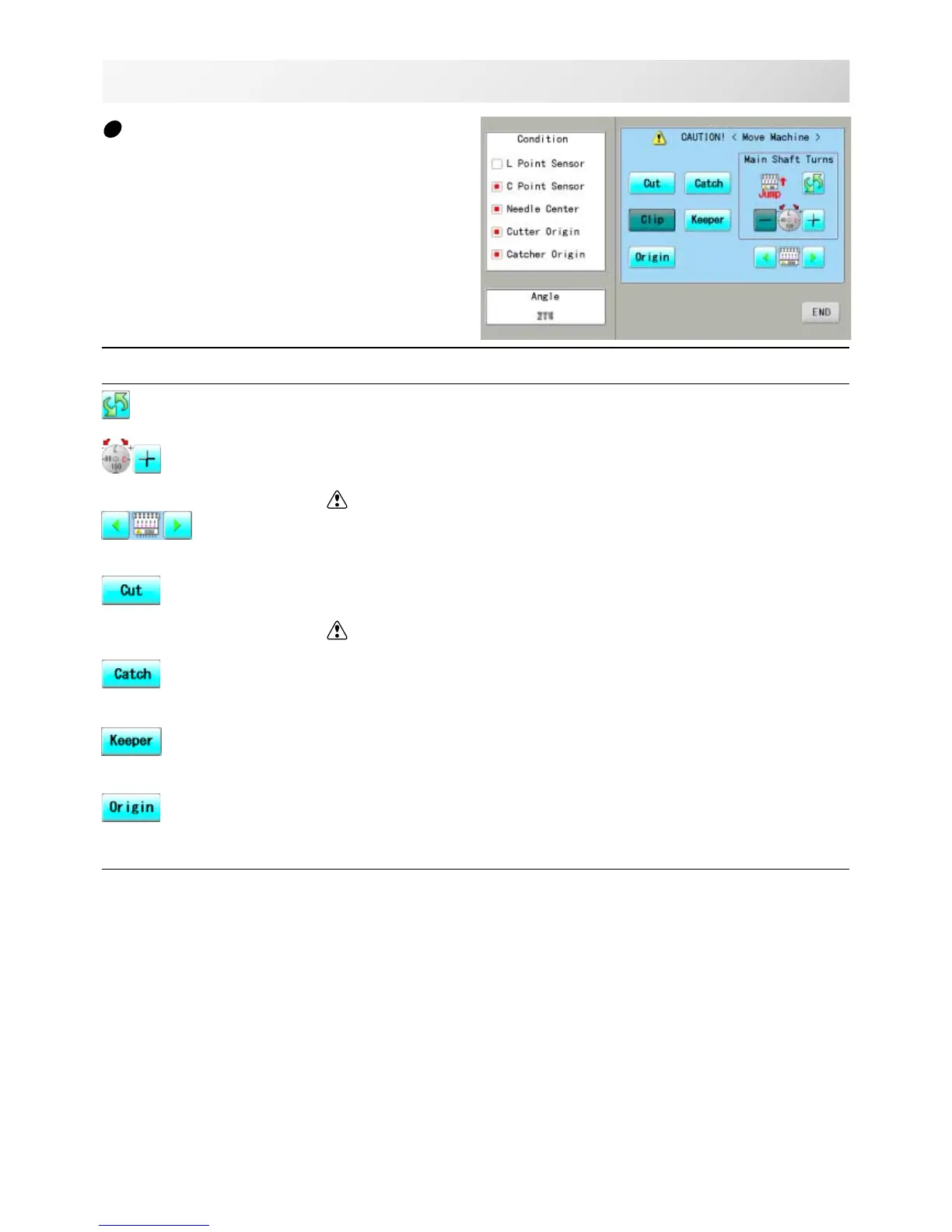

18_8 N401
Conditions
L point sensor The point that indicator becomes RED is L-point, when upper shaft is turned.
C point sensor The point that indicator becomes RED is C-point, when upper shaft is turned.
Needle sensor The point that indicator becomes RED is needle position, when moving head is
moved.
Origin point of cutter The point that indicator becomes RED is origin point of cutter.
Origin point of thread catcher The point that indicator becomes RED is origin point of thread catcher.
Angle
Indicate angle of upper shaft.
Please use dial when you need to know precision angle.
Button Machine movement
Change jump Change the needle bar's movement.
"JUMP" : Needle Jump, "DRIVE" : Needle Drive
Upper shaft turns Upper shaft turns clockwise and counterclockwise.
When release button, upper shaft stops.
Caution: please be careful that Needles move at once.
Needle change Move the sewing head to the adjustment needle in the direction of the arrows.
Cutter Open/Close When cutter is open position, cutter move to close position.
When cutter is close position, cutter move to open position.
Caution: please be careful that cutter move at once.
Catcher Open/Close When catcher is open position, cutter move to close position.
When catcher is close position, cutter move to open position.
Keeper When keeper is open position, keeper move to close position.
When keeper is close position, keeper move to open position.
Standby position In case, each equipment position without standby position, as example "Upper
shaft is not at C point, Thread cut blade is not at stop position, Thread Catcher is
open position", this key work for back to standby position automatically.
