CAP FRAME (OPTION)
4_5 O806

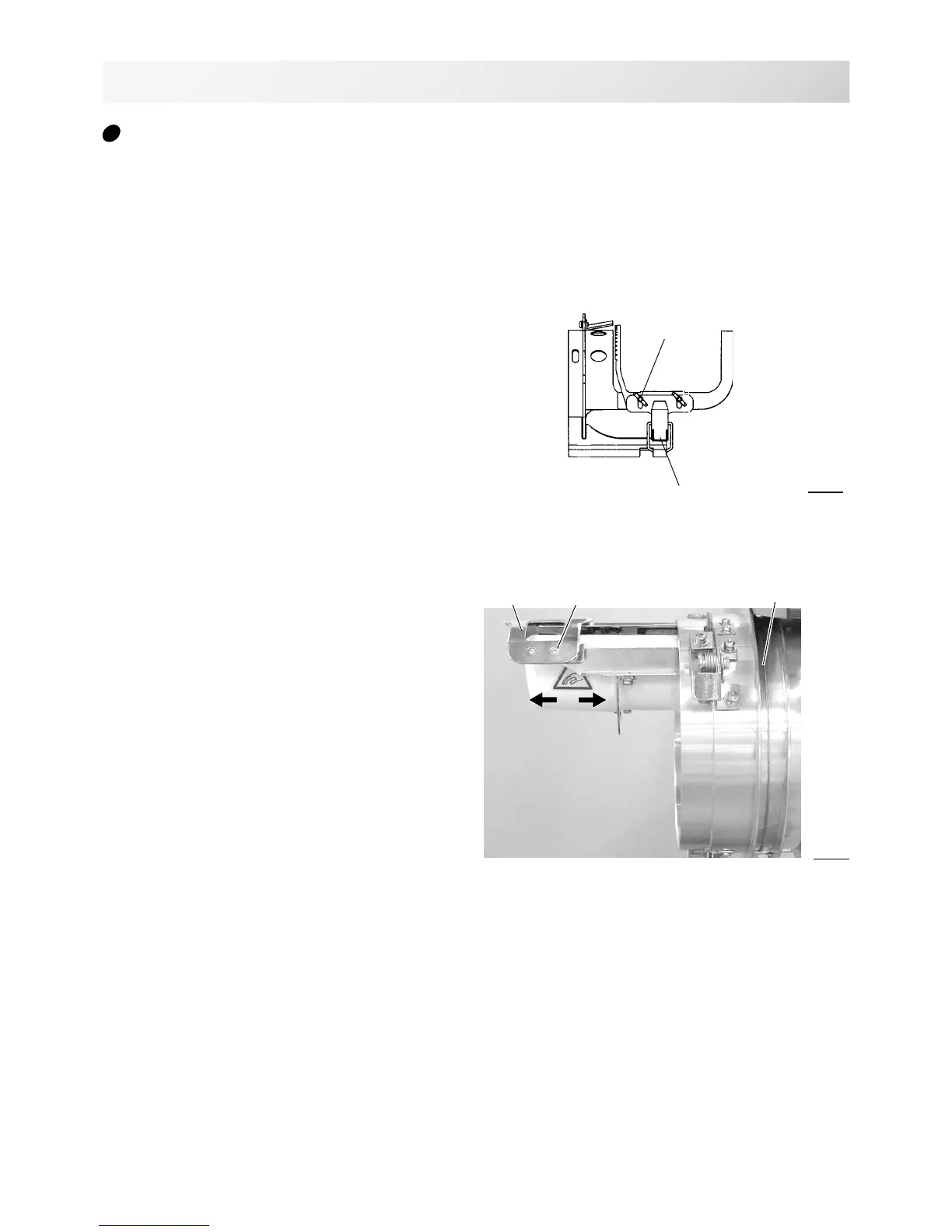

Adjustment
When you hoop a cap on the cap frame, please
adjust in the following manner:
1. Adjust up and down position of the hook
according to the thickness of the cap to
adjust clamp tension. At this moment, the
hook should open and close without feeling
too tight.
(For adjustment, proceed to procedure 5
below).
Use the wing nuts for adjustment. (Fig. 1)
If the hook is extremely tight, it will damage the
cap frame permanently.
2. Adjust the guide position to suit the height
of the cap.
Remove screws at left and right to adjust.
(Fig. 2)
Wing nut
Hook
Fig. 1
Normal cap frame
Cap drive
frame
High Low
Guide Screw
Fig. 2
