OTHER SETTINGS
22_2 M510
Wired LAN connection
Wired LAN connection create network connection between the embroidery machine and PC
with a LAN cable.
There are 2 types of Wired LAN connection methods.
HUB connection
PC via switching HUB connects with the embroidery machine.
You can connect PC with multiple embroidery machines.
Direct connection
You can connect PC with a machine with crossover cable and without HUB if you connect PC
with only one machine.
However, a straight cable can be also used for this connection if your PC's LAN port recognizes
the type of cable.
You cannot connect PC with multiple embroidery machines.

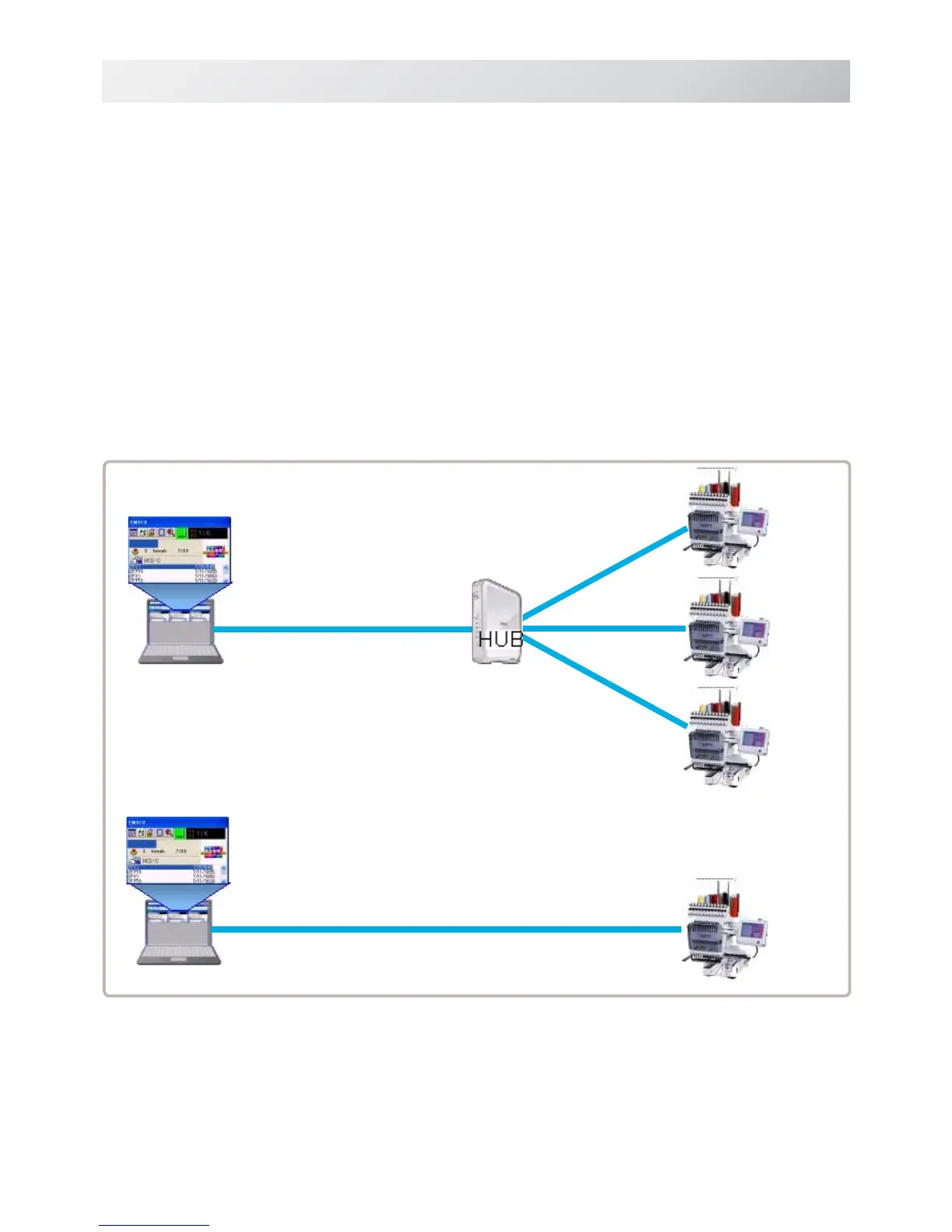

HUB connection
Direct connection
...
Embroidery
machine
PC (HAPPY LinK LAN)
PC (HAPPY LinK LAN)
Switching HUB
LAN cable
LAN cable
LAN cable (Cross cable)
1st embroi-
dery machine
2nd embroi-
dery machine
3rd embroi-
dery machine
